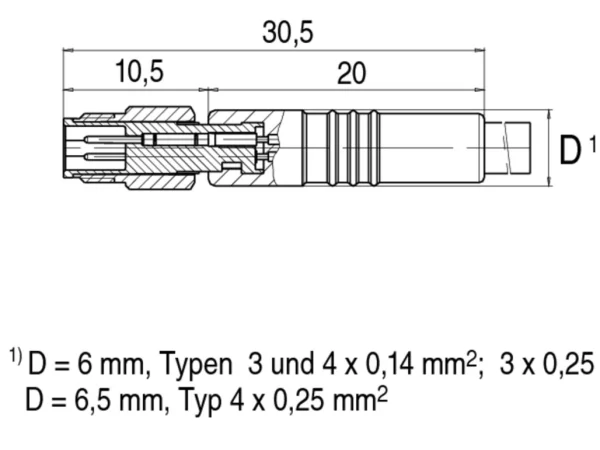

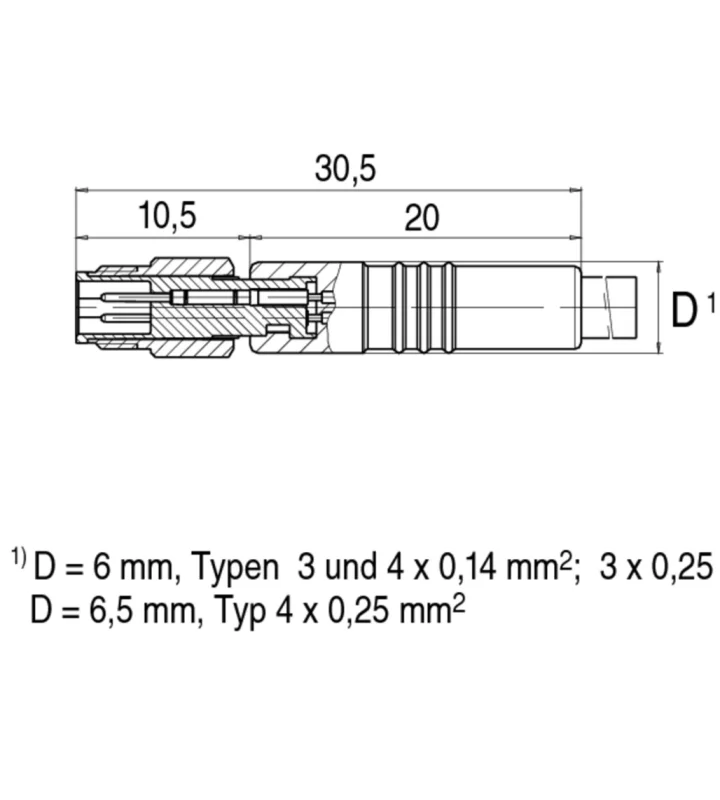

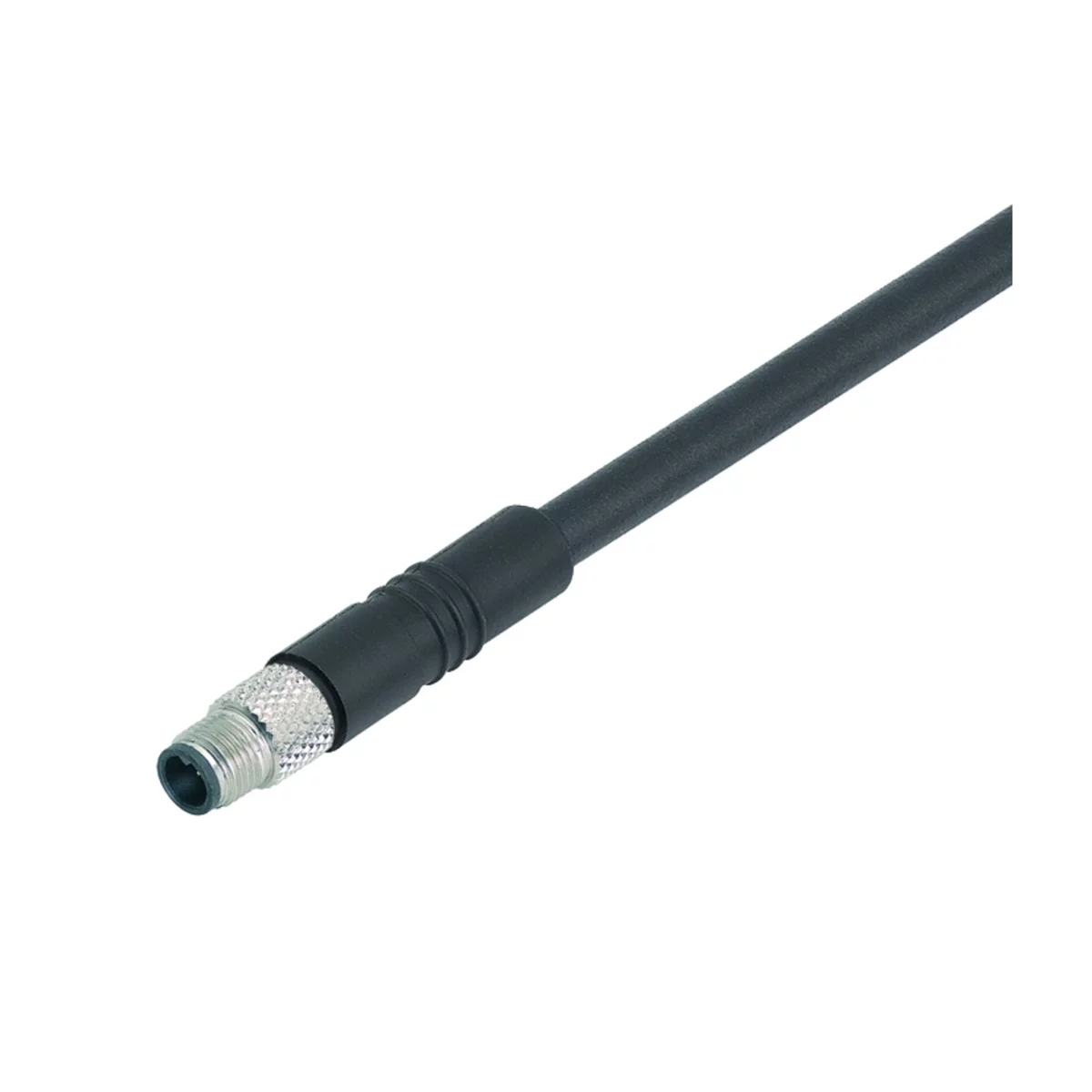

Male cable connector
Moulded M5x0,5, shielded
77 3559 0000 40004 0200
79 3127 52 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M5 |
|---|---|
| Series | Sensor |
| Subseries | 707 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M5) |
| Cable Length | 2 m |
| Cable sheath | 3.5 mm |
| Wire-section | 0.14 mm² |
| Single lead structure | 18x0,1 |
Electrical parameters
| Nominal current | 1 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Conductor resistance | 148 |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | I |
|---|---|
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation single lead | PVC |
