Male cable connector
Moulded, stainless steel ring nut
77 3729 0000 50005 0200
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12 |
|---|---|
| Series | Sensor |
| Subseries | 763 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |

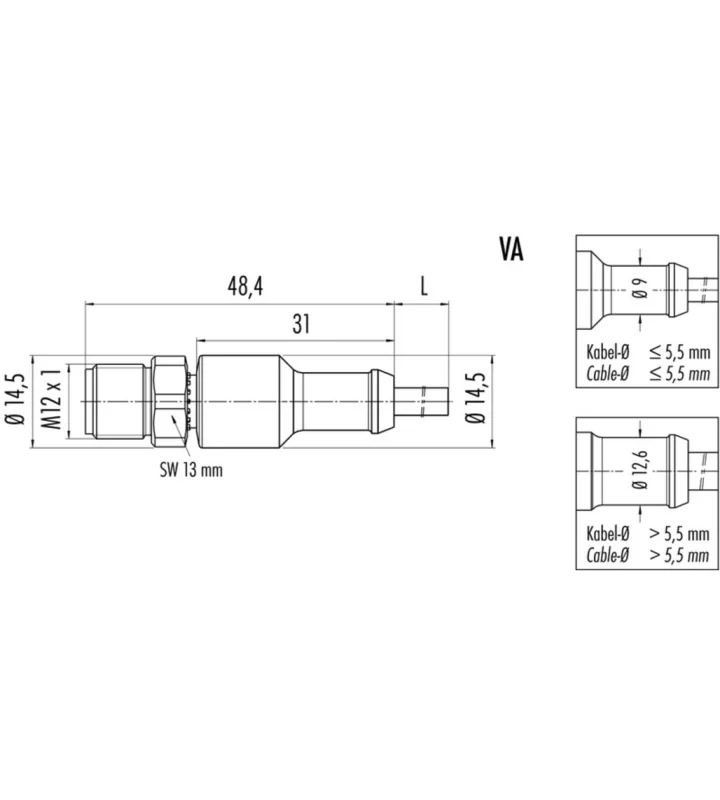

| Connector Diameter | 14.5 mm |
| Cable Length | 2 m |
| Cable diameter | 5 mm |
| Cable | 5 x 0,25 PUR |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Varianten
| Art. number | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Nominal Voltage | Cable Length | Cable diameter | Cable | Wire-section |
|---|---|---|---|---|---|---|---|---|---|
| 77 3729 0000 50004 0200 | 4 | 250 V | Crimp, moulded | 2500 V | >200 - ≤400 V | 2 m | 5 mm | 4 x 0,34 PUR | 0.34 mm² |
| 77 3729 0000 50003 0200 | 3 | 250 V | Crimp,moulded | 2500 V | >200 - ≤400 V | 2 m | 4.5 mm | 3 x 0,34 PUR | 0.34 mm² |
| 77 3729 0000 50003 0500 | 3 | 250 V | Crimp,moulded | 2500 V | >200 - ≤400 V | 5 m | 4.5 mm | 3 x 0,34 PUR | 0.34 mm² |
| 77 3727 0000 50003 0200 | 3 | 250 V | Crimp,moulded | 2500 V | >200 - ≤400 V | 2 m | 4.5 mm | 3 x 0,34 PUR | 0.34 mm² |
| 77 3727 0000 50708 0200 | 8 | 60 V | Crimp,moulded | 800 V | ≤200 V | 2 m | 5 mm | 8 x 0,25 PUR | 0.25 mm² |
