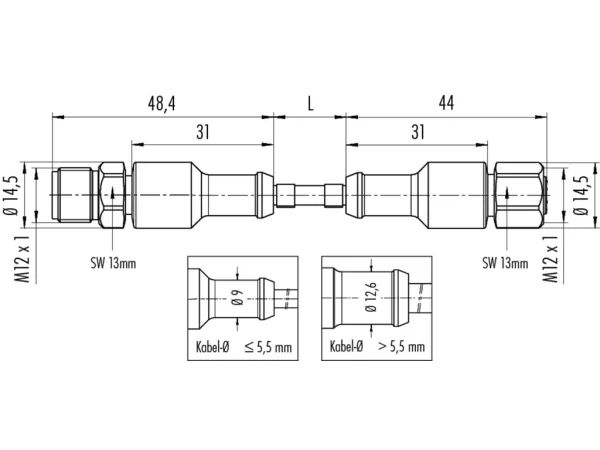

Connecting cable, male cable connector M12x1 & female cable connector M12x1
overmoulded, stainless steel
PVC Cable, UL approval
77 3730 3729 20404 0500
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 763 |
| Gender | Male & Female |
| Number of contacts | 4 |
| Contact terminal | Crimp, overmoulded on cable |
| Color | Grey |
| Upper temperature | +105 °C |
| Lower temperature | -40 °C |
| Protection degree | IP69K |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 14.5 mm |
| Cable Length | 5 m |
| Cable sheath | 4.8 mm |
| Wire gauge | 22 AWG |
| Wire-section | 0.34 mm² |
| Radius cable fixed | Min. 5xD |
| Radius cable movable | min. 10xD |
| Single lead structure | 32x0,1 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Conductor resistance | 79 |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PP |
| Material of housing | PP |
| Material of contact | Cuzn (Brass), Cusn (Bronze) |
| Plating | Au (Gold) |
| Housing of cable | PVC |
| Insulation single lead | PVC |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Conductor resistance | Nominal Voltage | Cable Length | Cable sheath | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|---|---|---|
| 77 3730 3729 20403 0200 | 3 | 250 V | 2500 V | 57 | >200 - ≤400 V | 2 m | 4.5 mm | 22 AWG | 0.34 mm² |
| 77 3730 3729 20403 0500 | 3 | 250 V | 2500 V | 57 | >200 - ≤400 V | 5 m | 4.5 mm | 22 AWG | 0.34 mm² |
| 77 3730 3729 20404 0200 | 4 | 250 V | 2500 V | 79 | >200 - ≤400 V | 2 m | 4.8 mm | 22 AWG | 0.34 mm² |
| 77 3730 3729 20405 0200 | 5 | 60 V | 1500 V | 79 | ≤200 V | 2 m | 4.8 mm | 22 AWG | 0.34 mm² |
| 77 3730 3729 20405 0500 | 5 | 60 V | 1500 V | 79 | ≤200 V | 5 m | 4.8 mm | 22 AWG | 0.34 mm² |
| 77 3730 3729 20908 0200 | 8 | 30 V | 800 V | 79 | ≤200 V | 2 m | 6 mm | 24 AWG | 0.25 mm² |
| 77 3730 3729 20908 0500 | 8 | 30 V | 800 V | 79 | ≤200 V | 5 m | 6 mm | 24 AWG | 0.25 mm² |
| 77 3730 3729 20912 0200 | 12 | 30 V | 800 V | 79 | ≤200 V | 2 m | 6.6 mm | 24 AWG | 0.25 mm² |
| 77 3730 3729 20912 0500 | 12 | 30 V | 800 V | 79 | ≤200 V | 5 m | 6.6 mm | 24 AWG | 0.25 mm² |
