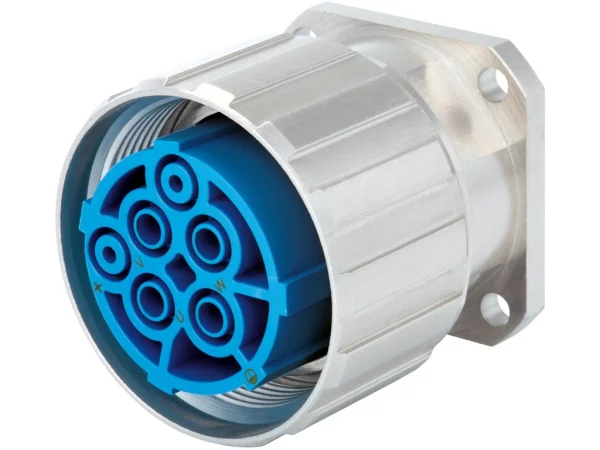

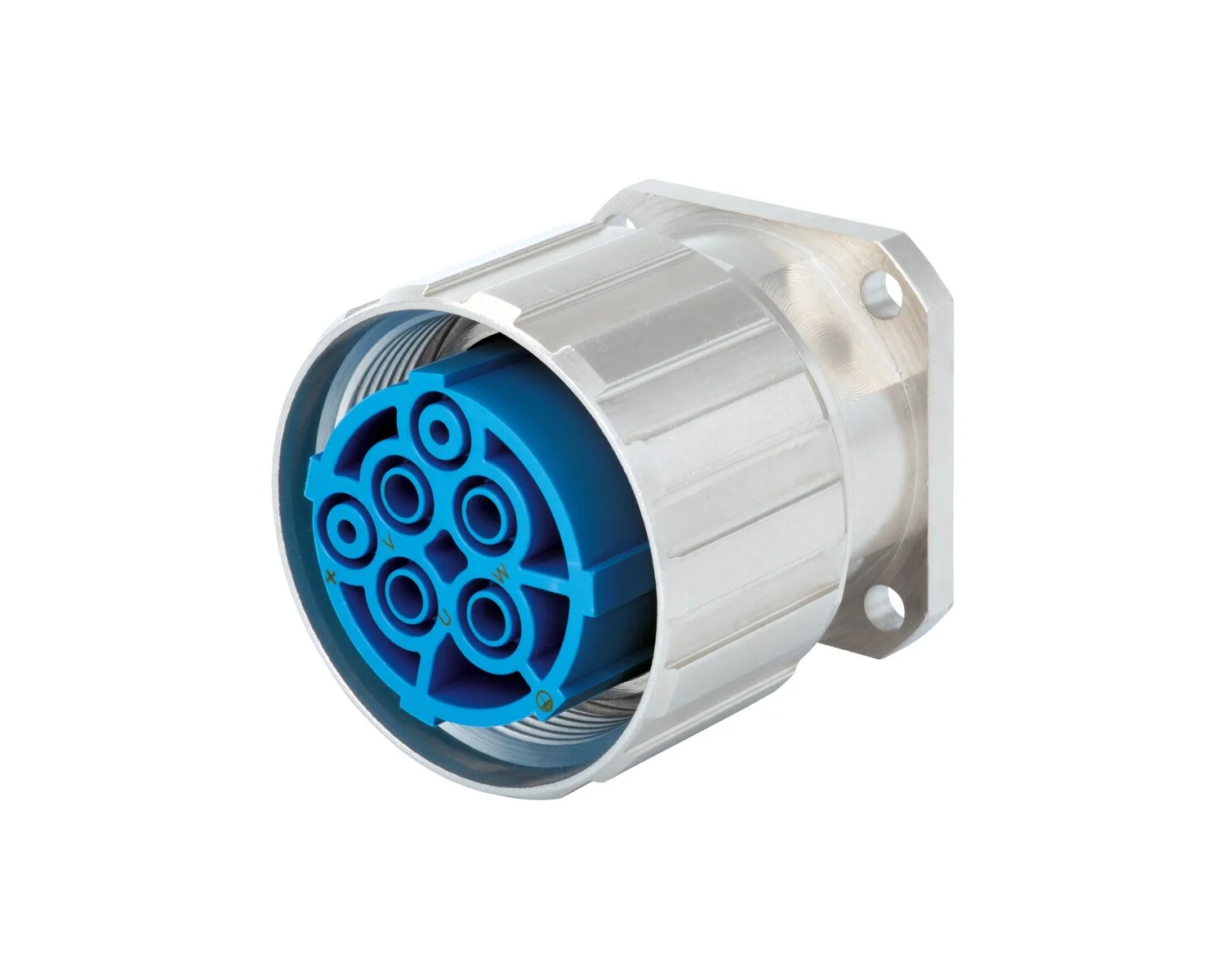

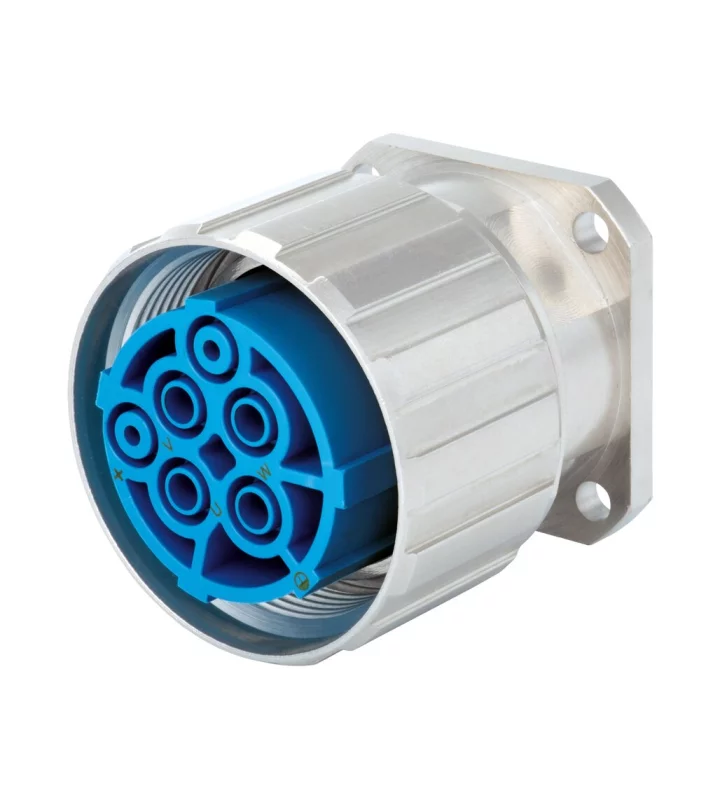

Panel Connector with knurled Nut
2+3+PE, insert for sockets, power
Front Mounting, housing included
7.744.023.000
Stel je connector verder samen
Voeg de gewenste contacts en accessories toe om je connector volledig samen te stellen.

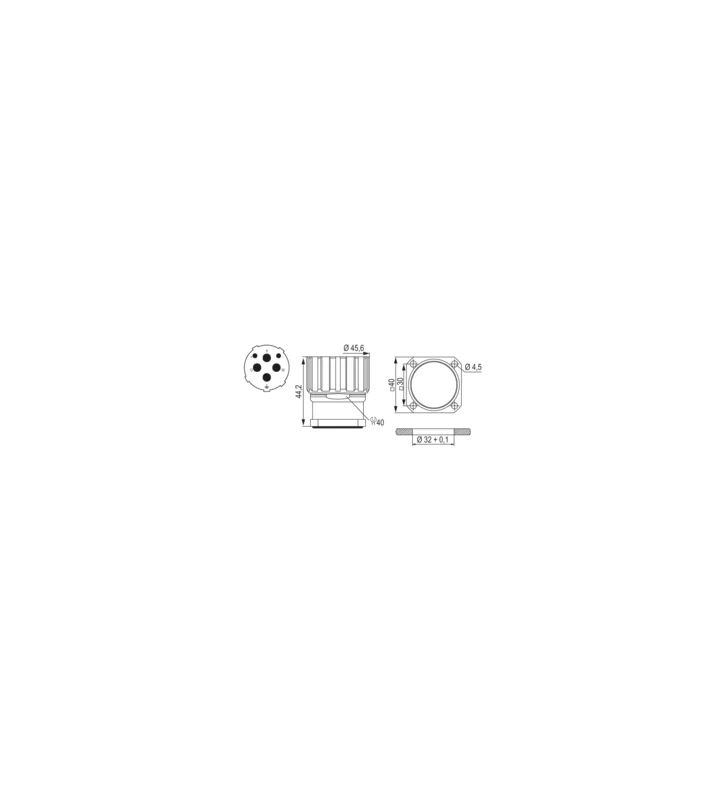

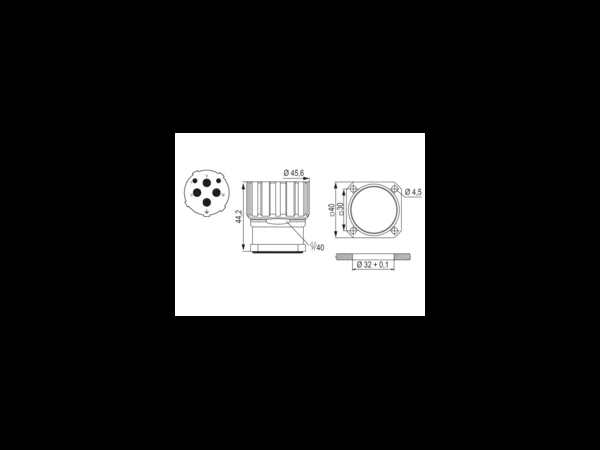

Specificaties
General Characteristics
| Number of contacts | 6 mixed layout |
|---|---|
| Gender of required insert | Female |
| Connector diameter | 46 mm |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw |
| Protection degree | IP67/IP69K |
| Mating cycles | >500 |
| Terminal type | Crimp |
| Holes | 4 holes Ø 4,5 mm |
| Wire section (a) | 1-4 mm |
| Wire section (b) | 1,5-16 mm |
| Crimp contacts (to be ordered separately) | 2x2mm & 4x3,6mm |
| Contact diameter (a) | 2 |
| Contact diameter (b) | 3.6 |
Electrical parameters
| Nominal current (a) | 28 A |
|---|---|
| Nominal current (b) | 55 A |
| Insulation resistance | > 10¹³ |
| Nominal voltage (degree of pollution 3) (a) | 300 V |
| Nominal voltage (degree of pollution 3) (b) | 600 V |
| Test voltage (a) | 2500 V |
| Test voltage (b) | 4000 V |
| Max. contact resistance (a) | 3 mΩ |
| Max. contact resistance (b) | 1 mΩ |
Material
| Housing material | Copper-Zinc alloy/ Die casting |
|---|---|
| Housing plating | Nickel plated |
