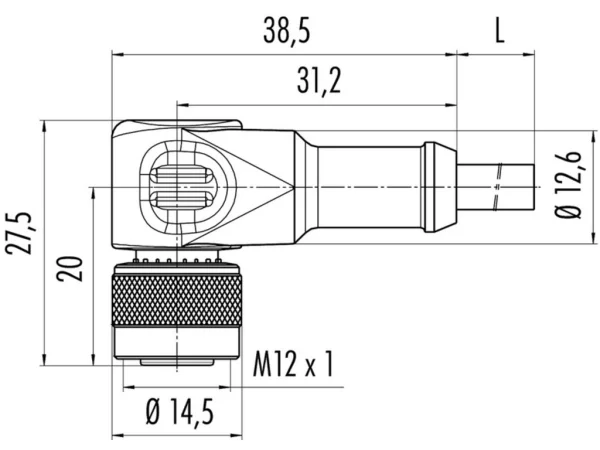

Female angled connector
Moulded
77 4434 0000 50005 0200
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-B |
|---|---|
| Series | Sensor |
| Subseries | 766 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-B) |
| Mating cycles | >100 |
| Connector Diameter | 14.5 mm |
| Cable Length | 2 m |
| Cable diameter | 5.7 mm |
| Cable | 5 x 0,5 PUR |
| Wire-section | 0.5 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable Length | Cable diameter | Cable |
|---|---|---|---|---|---|---|---|
| 77 4434 0000 50003 0200 | 3 | 250 V | 2500 V | >200 - ≤400 V | 2 m | 5 mm | 3 x 0,5 PUR |
| 77 4434 0000 50004 0200 | 4 | 250 V | 2500 V | >200 - ≤400 V | 2 m | 5.7 mm | 4 x 0,5 PUR |
| 77 4434 0000 50003 0500 | 3 | 250 V | 2500 V | >200 - ≤400 V | 5 m | 5 mm | 3 x 0,5 PUR |
| 77 4434 0000 50004 0500 | 4 | 250 V | 2500 V | >200 - ≤400 V | 5 m | 5.7 mm | 4 x 0,5 PUR |
| 77 4434 0000 50005 0500 | 5 | 125 V | 1500 V | ≤200 V | 5 m | 5.7 mm | 5 x 0,5 PUR |
