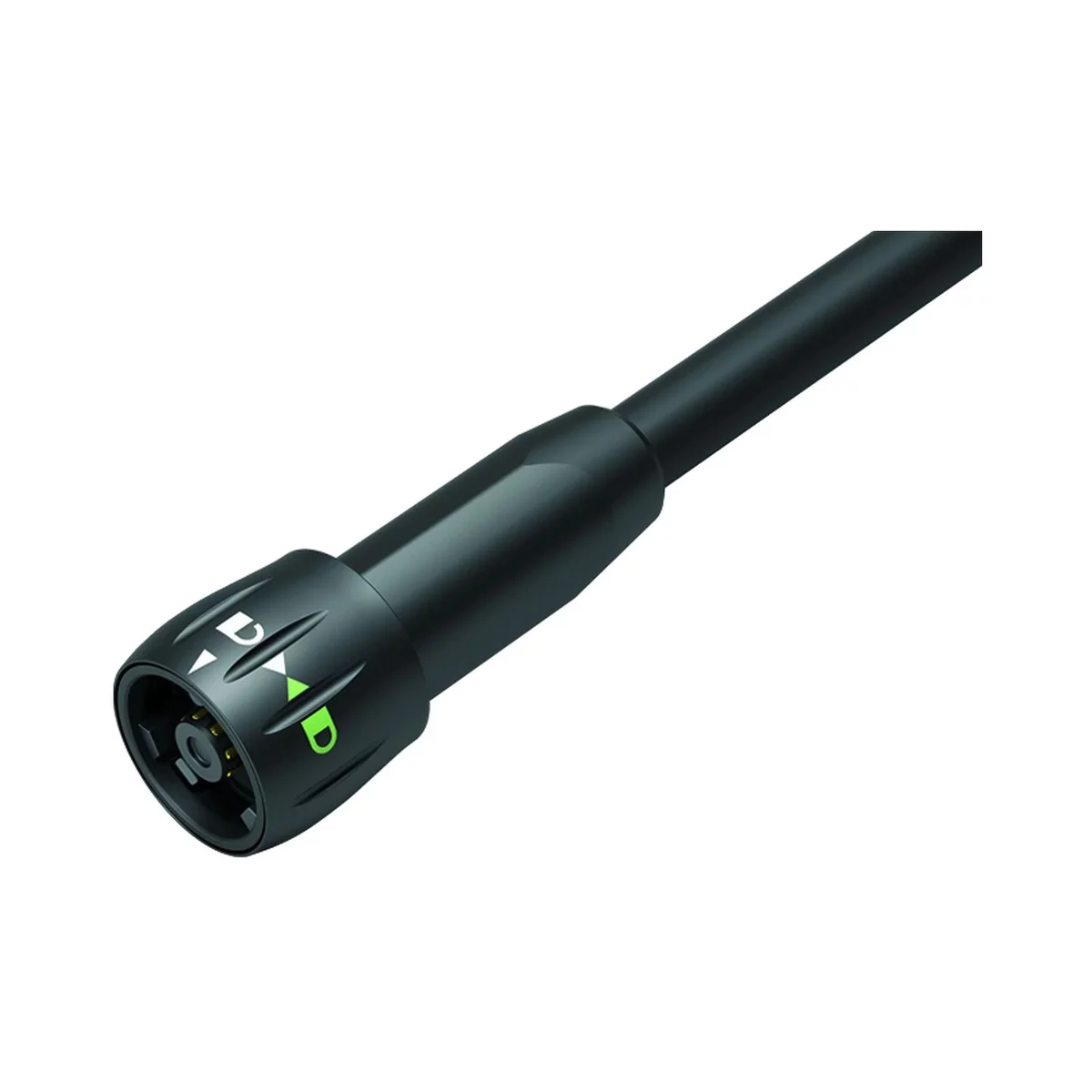

Bayonet Male cable connector
Unshielded, Solder
77 6005 0000 50008 0200
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | 770 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -20 °C |
| Protection degree | IP67 |
| Locking system | Bayonet |
| Mating cycles | >5000 |
| Connector Diameter | 19,9 mm |
| Cable Length | 2 m |
| Cable diameter | 6 mm |
| Wire gauge | 24 AWG |
| Wire-section | 0,25 mm² |
| Radius cable fixed | ≥ 5 x Ø |
| Radius cable movable | ≥ 10 x Ø |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 175 V |
| Impuls voltage | 1750 V |
| Conductor resistance | 79 |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Insulation single lead | PP |
Varianten
| Art. number | Cable Length |
|---|---|
| 77 6005 0000 50008 0500 | 5 m |
