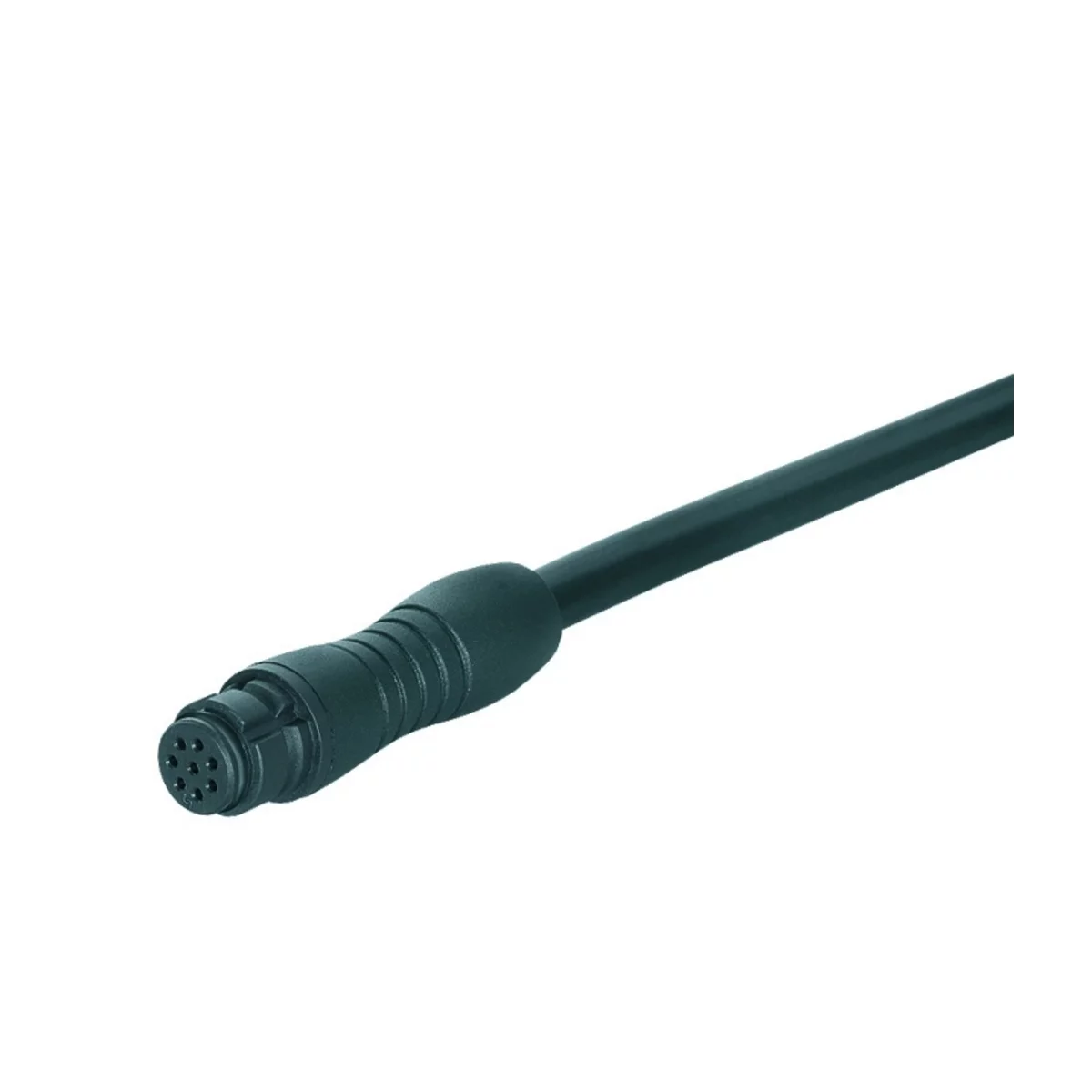

Female cable connector
With moulded cable
77 7406 0000 50005 0200
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Subminiature |
|---|---|
| Subseries | 620 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Moulded |
| Upper temperature | +70 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Snap-in |
| Mating cycles | >500 |
| Connector Diameter | 11.5 mm |
| Cable Length | 2 m |
| Cable diameter | 5 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 63 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PUR |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Cable diameter |
|---|---|---|---|---|
| 77 7406 0000 50003 0200 | 3 | 125 V | 1500 V | 4,5 mm |
| 77 7406 0000 50004 0200 | 4 | 125 V | 1500 V | 4,5 mm |
| 77 7406 0000 50008 0200 | 8 | 63 V | 800 V | 5.7 mm |
