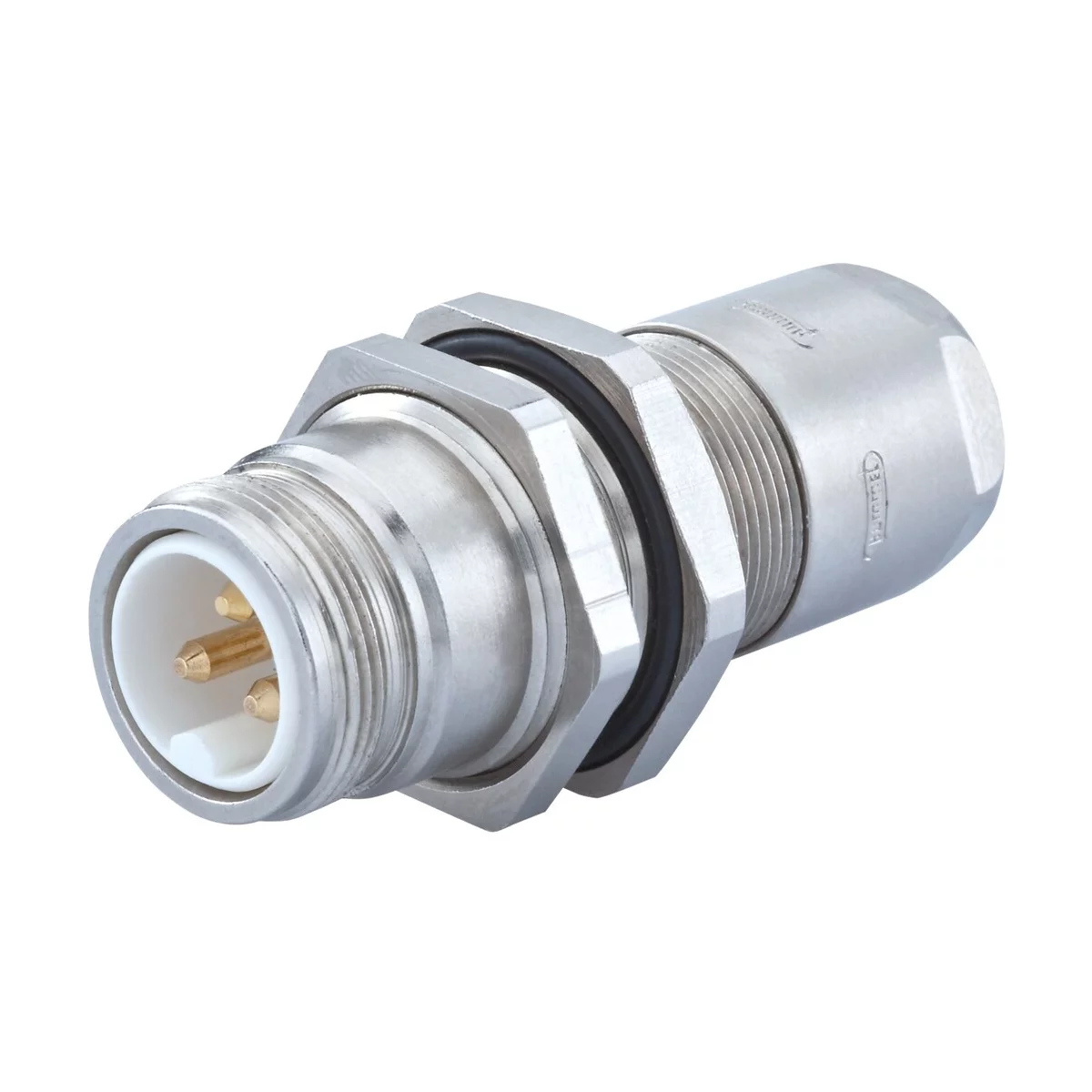

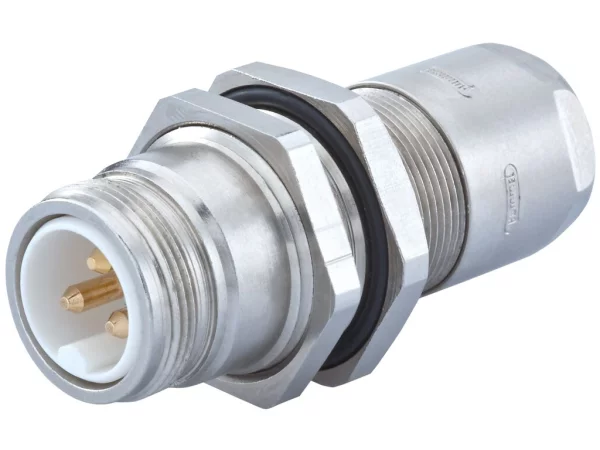

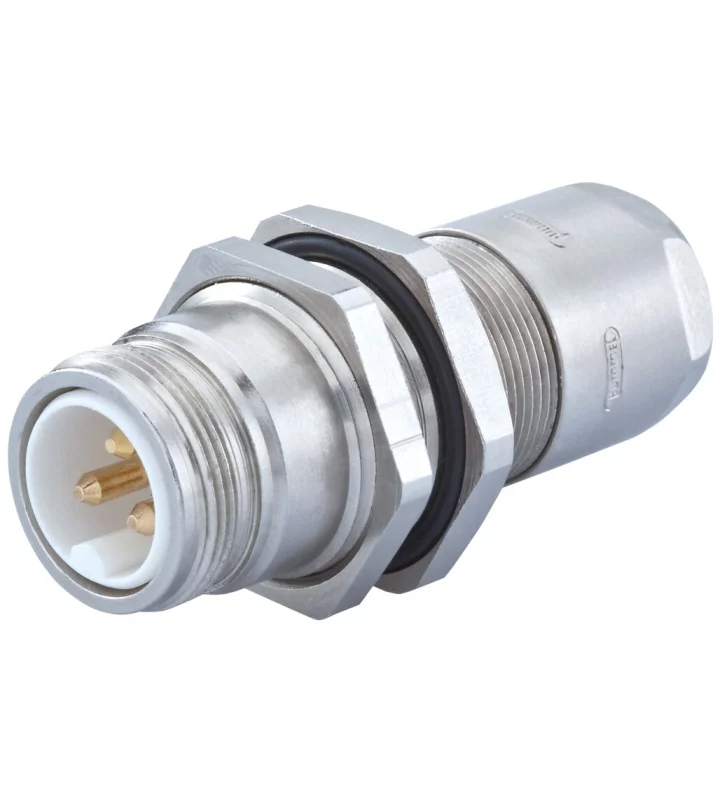

Panel Connector with built in Cable Strain Relief
Rear mounting
single hole mounted
7.852.300.000
Stel je connector verder samen
Voeg de gewenste inserts en accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Size | M16 |
|---|---|
| Gender of required insert | Male/Female |
| Upper temperature | 125 °C |
| Lower temperature | -40 °C |
| Connector locking system | Screw/Twilock |
| Protection degree | IP67/IP69K |
| Mating cycles | > 1000 |
| Cable diameter | 2 - 7 mm |
| Remark 1 | Including jam nut PG11 |
Material
| Housing material | Copper-Zinc alloy, Die cast |
|---|---|
| Housing plating | Nickel plated |
Varianten
| Art. number | Cable diameter (mm) | Cable diameter |
|---|---|---|
| 7.852.400.000 | 5 - 9 mm | 5 - 9 mm |
