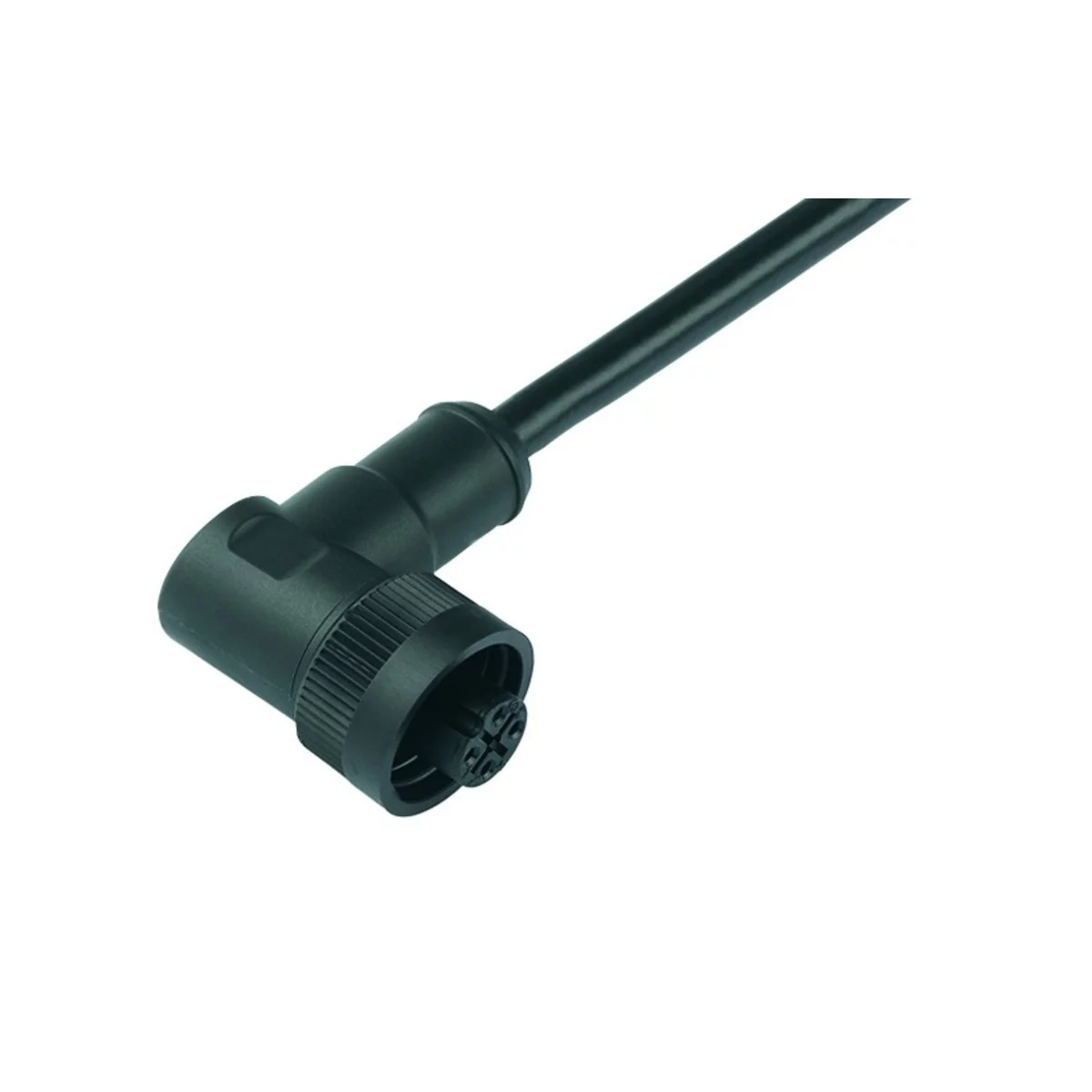

Female angled connector
79 0234 20 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | RD24 |
|---|---|
| Series | Power |
| Subseries | 692-693 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +80 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (RD24) |
| Mating cycles | >500 |
| Connector Diameter | 29 mm |
| Cable Length | 2 m |
| Cable diameter | 8,6 mm |
| Wire-section | 4 x 1,5 mm² |
Electrical parameters
| Nominal current | 16 A |
|---|---|
| Nominal voltage | 400 V |
| Impuls voltage | 6000 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PA 12 |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Cable diameter | Wire-section |
|---|---|---|---|---|---|---|
| 79 0238 20 07 | >5 - ≤10 A | 7 | 250 V | 4000 V | 9,7 mm | 7 x 0,75 mm² |
