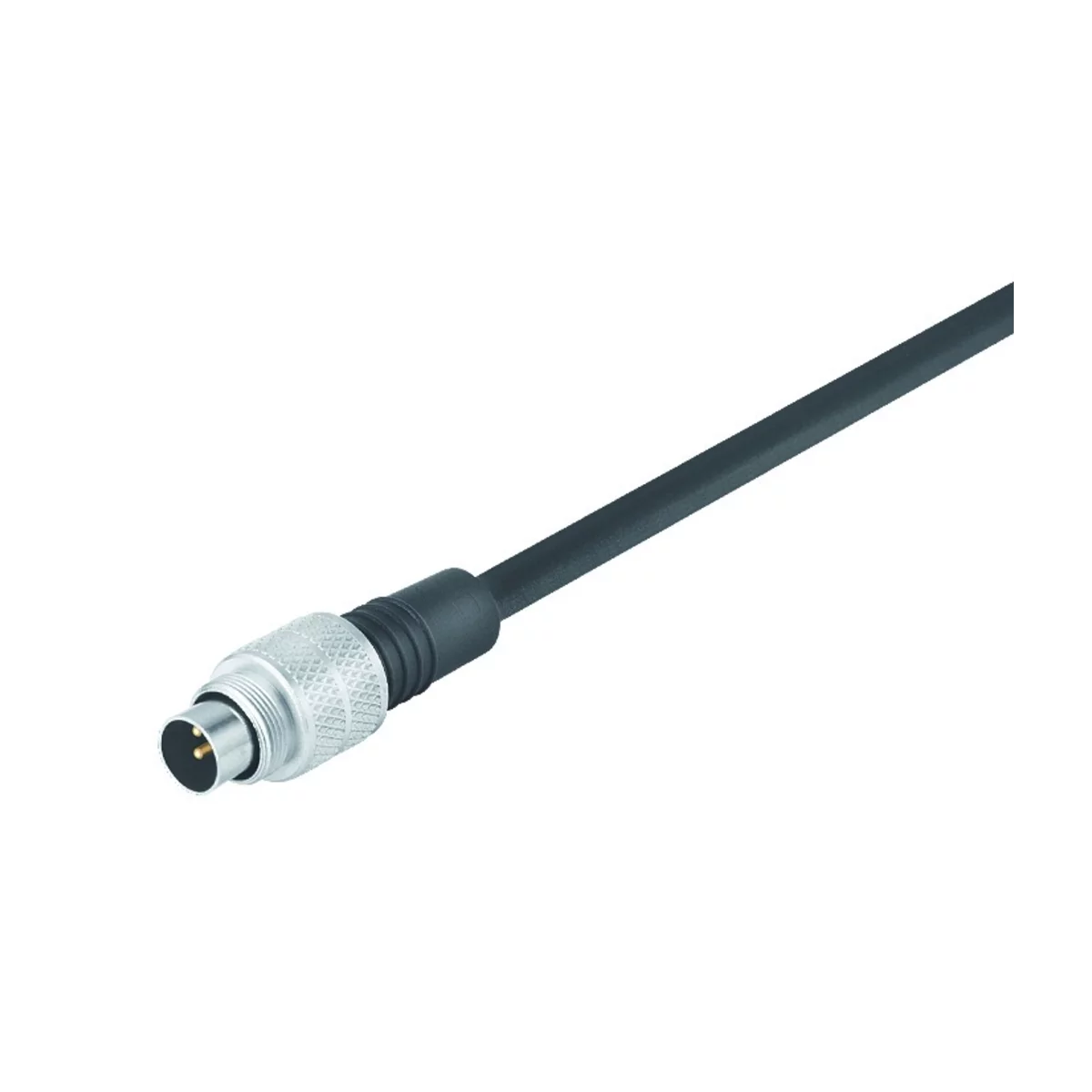

Male cable connector
Moulded, unshielded
79 1451 215 03
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M9 |
|---|---|
| Series | Subminiature |
| Subseries | 702 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Moulded |
| Upper temperature | +70 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M9) |
| Mating cycles | >500 |

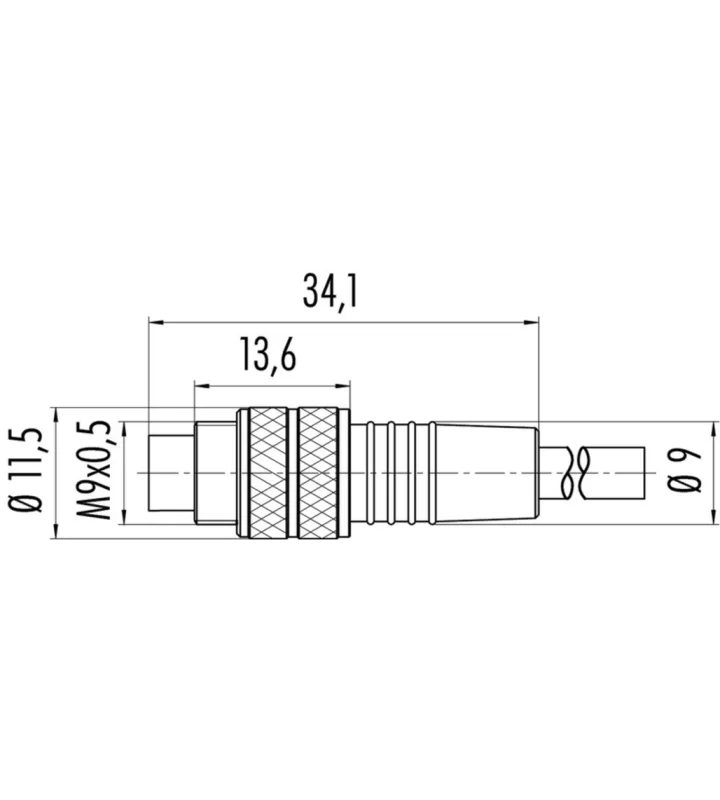

| Connector Diameter | 11.5 mm |
| Cable Length | 5 m |
| Cable diameter | 4,5 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 1 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | PUR |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Cable Length | Cable diameter | Wire-section |
|---|---|---|---|---|
| 79 1451 212 03 | 3 | 2 m | 4,5 mm | 0.25 mm² |
| 79 1455 212 05 | 5 | 2 m | 5 mm | 0.25 mm² |
| 79 1461 212 08 | 8 | 2 m | 5 mm | 0.14 mm² |
| 79 1455 215 05 | 5 | 5 m | 5 mm | 0.25 mm² |
| 79 1461 215 08 | 8 | 5 m | 5 mm | 0.14 mm² |
