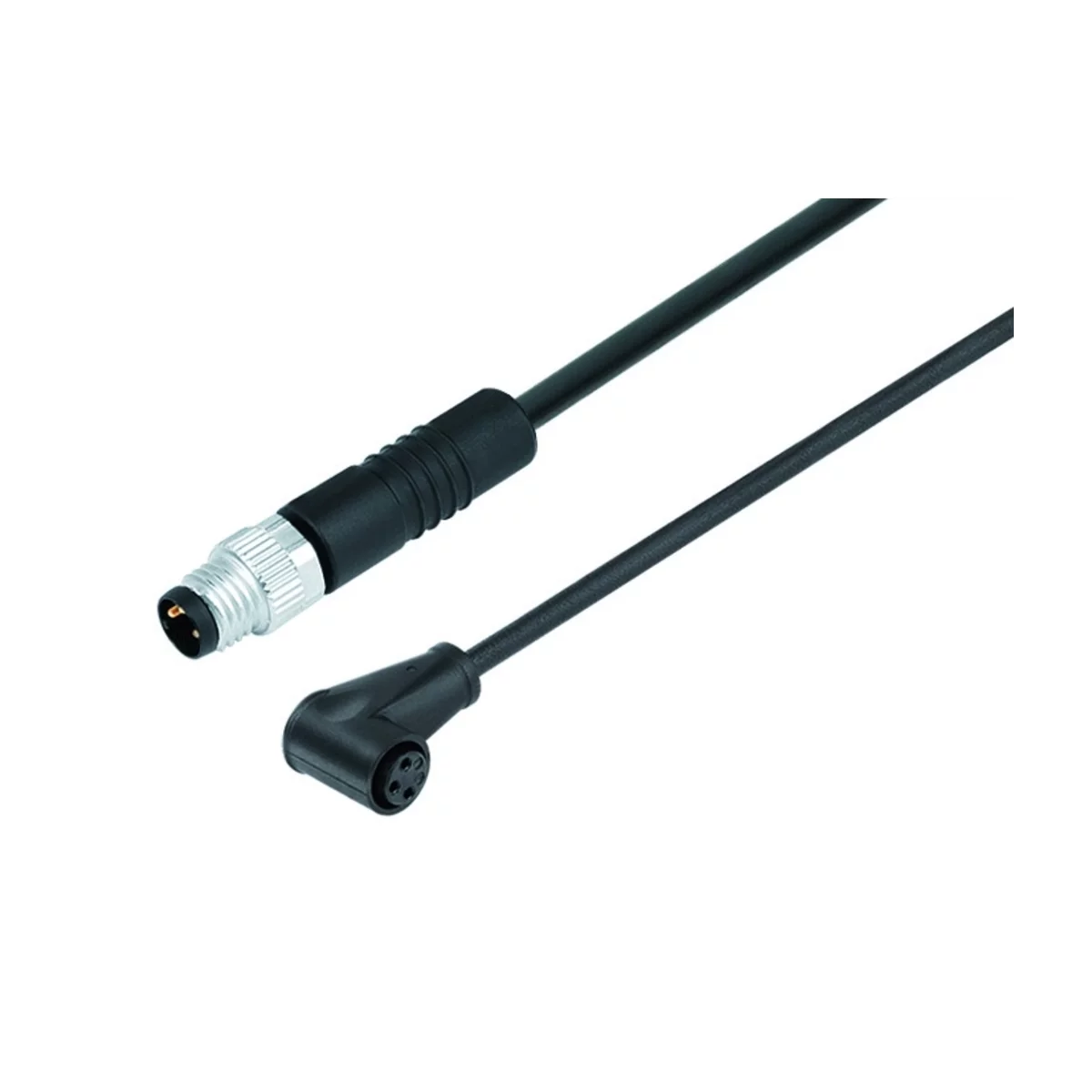

Male cable connector M8x1 - Female angled connector snap-in version M8x1
79 5062 10 03
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 765 |
| Gender | Male & Female |
| Number of contacts | 3 |
| Contact terminal | Crimp, moulded |
| Upper temperature | +70 °C |
| Lower temperature | -25 °C |
| Protection degree | IP65 |
| Locking system | Snap-in |
| Mating cycles | >50 |
| Connector Diameter | 9,7 - 8,5 mm |
| Cable Length | 1 m |
| Cable diameter | 4,5 mm |
| Cable | 3x0,25 PUR |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Jacket material | PUR |
|---|---|
| Material group | II |
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) |
| Insulation wire | PVC |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Cable Length | Cable |
|---|---|---|---|---|---|
| 79 5063 10 04 | 4 | 30 V | 800 V | 1 m | 4x0,25 PUR |
| 79 5063 20 04 | 4 | 30 V | 800 V | 2 m | 4x0,25 PUR |
