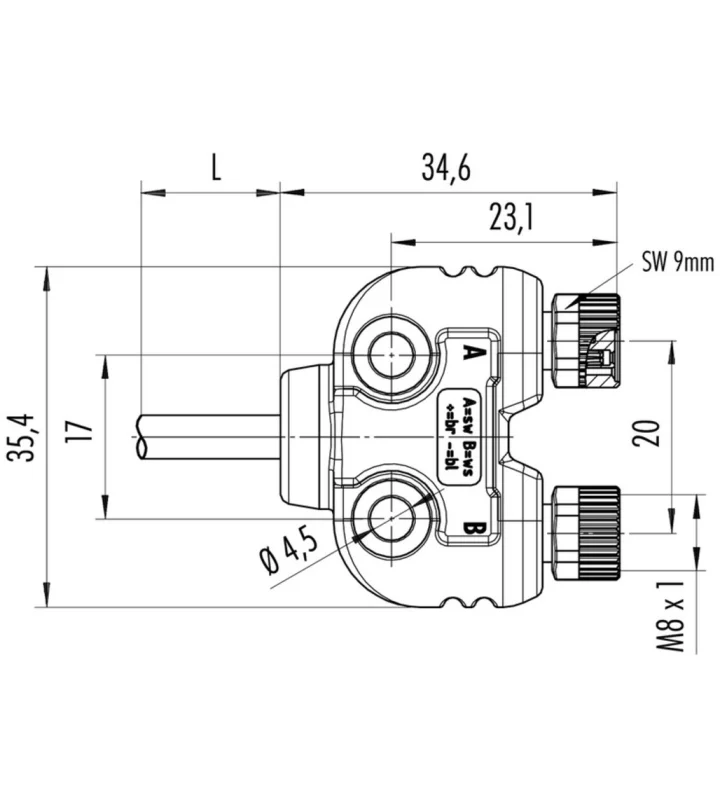

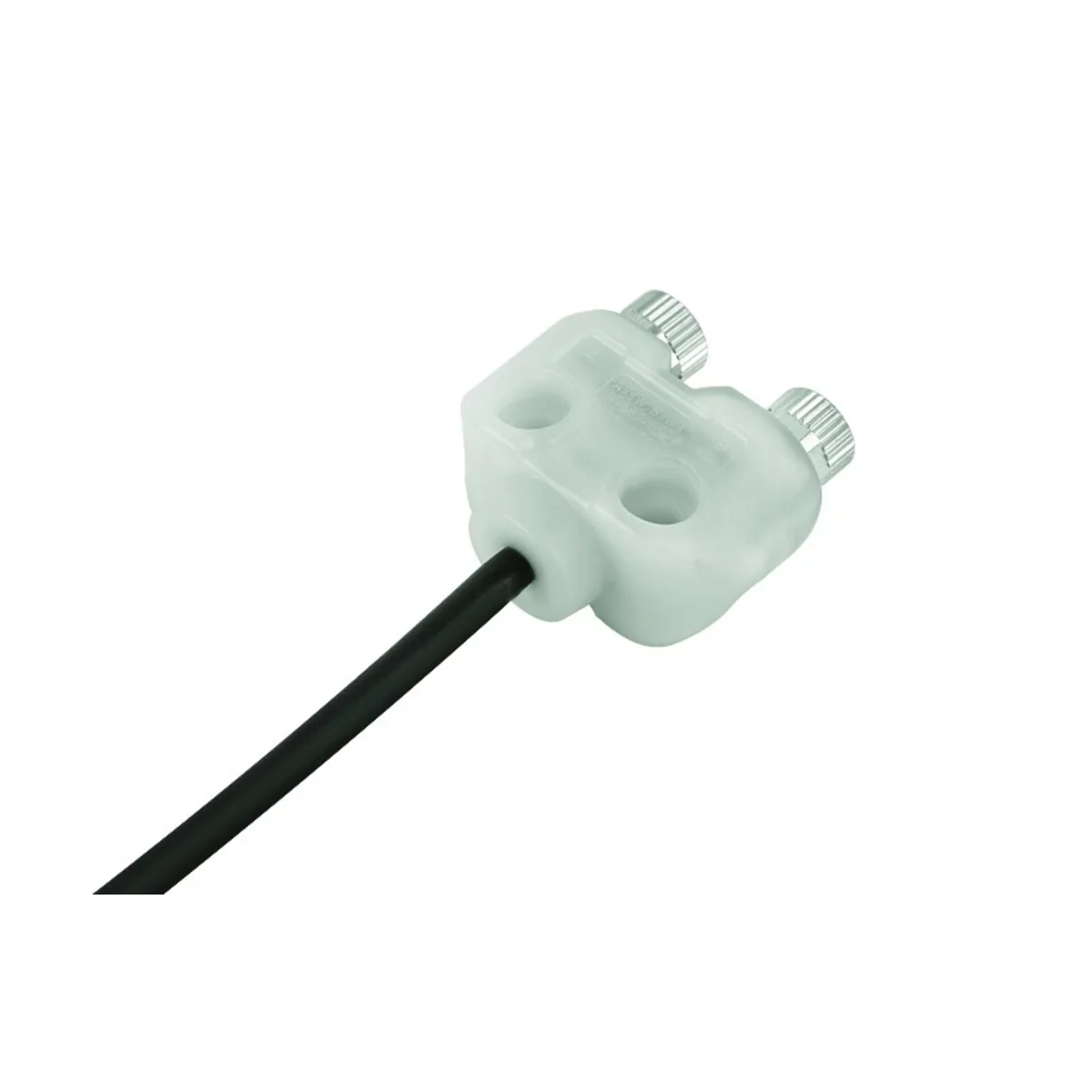

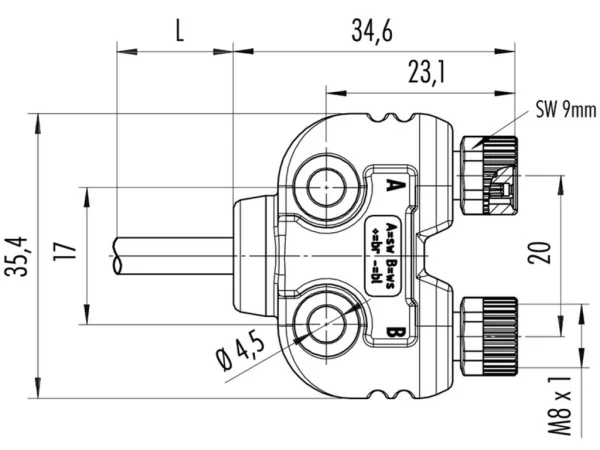

Twin distributor
Moulded, 2 female connectors M8x1
79 5232 33 04
Specificaties
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 765 |
| Gender | Female |
| Number of contacts | 3 |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP68 |
| Locking system | Screw |
| Mating cycles | >100 |
| Connector Diameter | 35.4 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PUR |
| Material of housing | PUR |
| Material of contact | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) |
