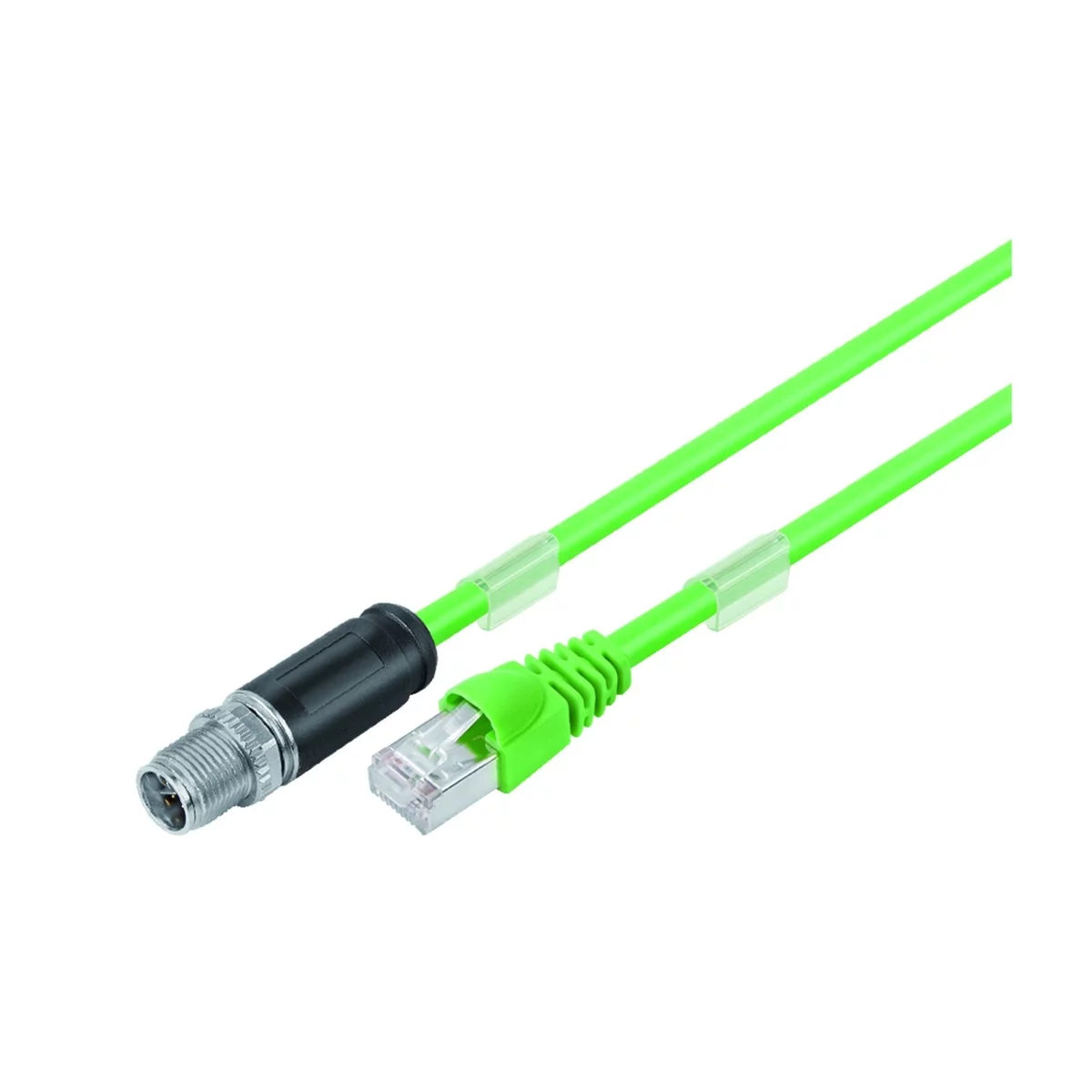

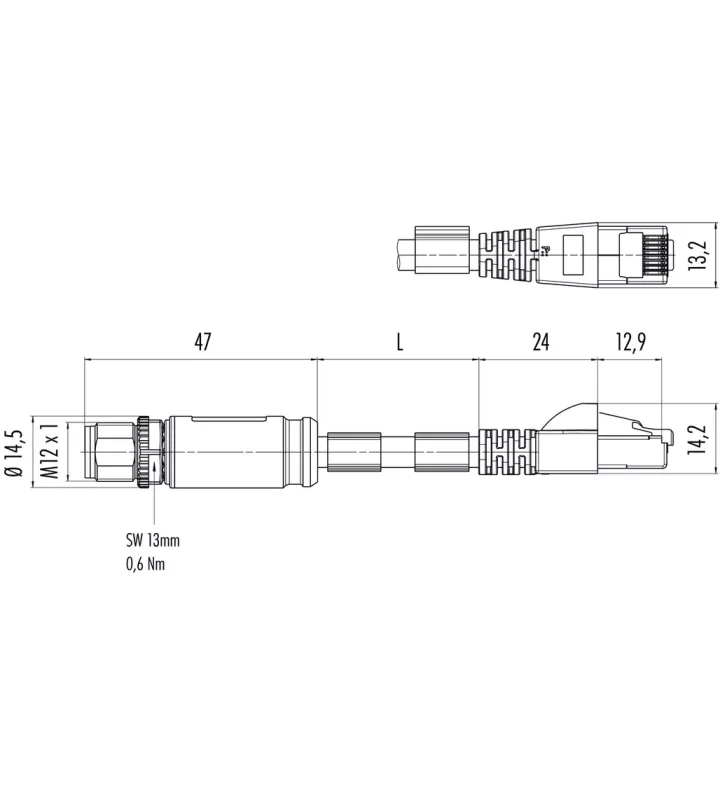

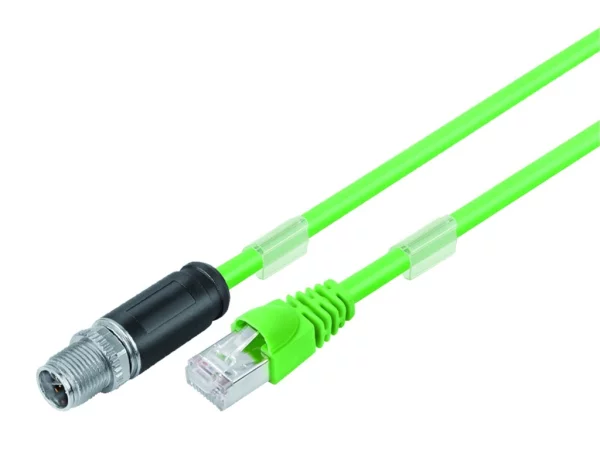

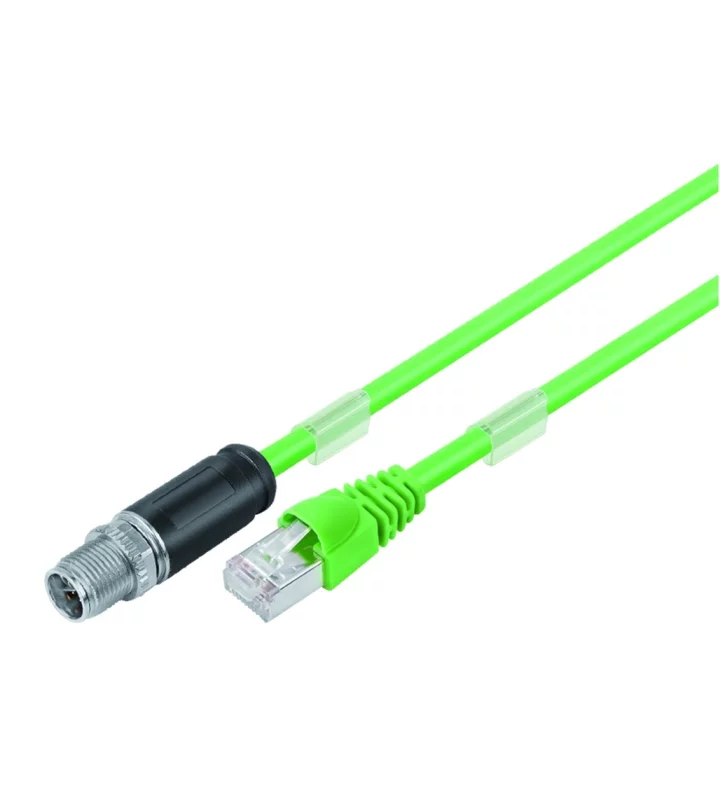

Connecting cable, male cable connector
M12 x 1, RJ45, PUR cable, shielded
79 9723 020 08
Specificaties
General Characteristics
|
Screw size |
M12-X
|
|
Series |
Sensor
|
|
Subseries |
876
|
|
Gender |
Male
|
|
Number of contacts |
8
|
|
Contact terminal |
Crimp, moulded
|
|
Upper temperature |
+85 °C
|
|
Lower temperature |
-40 °C
|
|
Protection degree |
IP67
|
|
Locking system |
Screw (M12-X)
|
|
Mating cycles |
>100
|
|
Connector Diameter |
14.5 mm
|
|
Cable Length |
2 m
|
|
Cable diameter |
6,2 mm
|
Electrical parameters
|
Nominal current |
0.5 A
|
|
Nominal voltage |
50 AC, 60 DC
|
|
Max. contact resistance |
10 mΩ
|
|
Pollution degree |
3
|
|
Overvoltage categorie |
II
|
Material
|
Jacket material |
PUR green
|
|
Material group |
II
|
|
Material of insert |
PA
|
|
Material of housing |
PUR
|
|
Material of contact |
CuZn (Brass)
|
|
Plating |
Au (Gold)
|
|
Insulation wire |
PE
|
