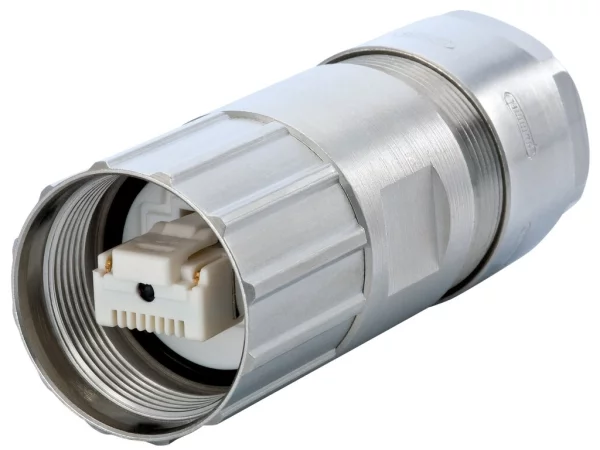

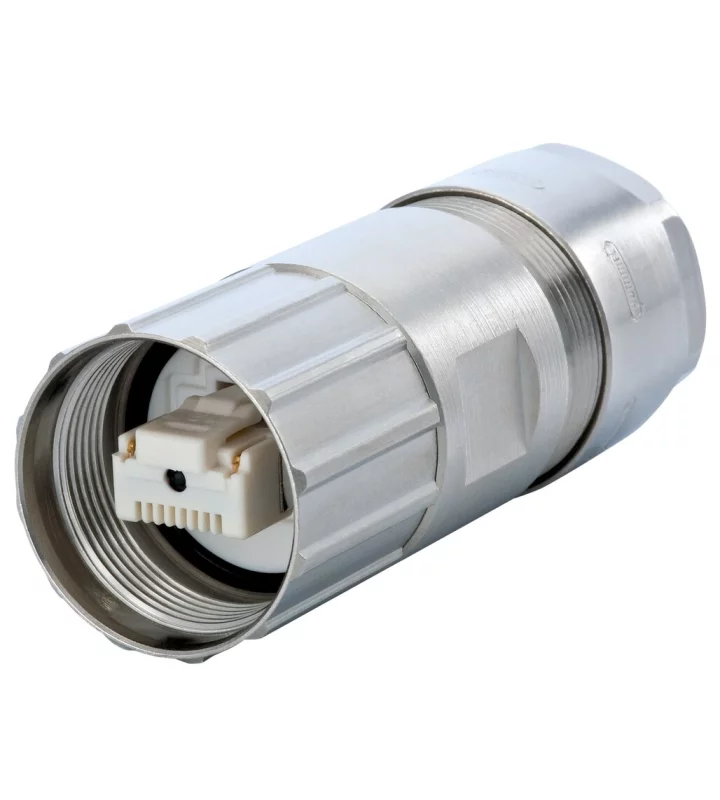

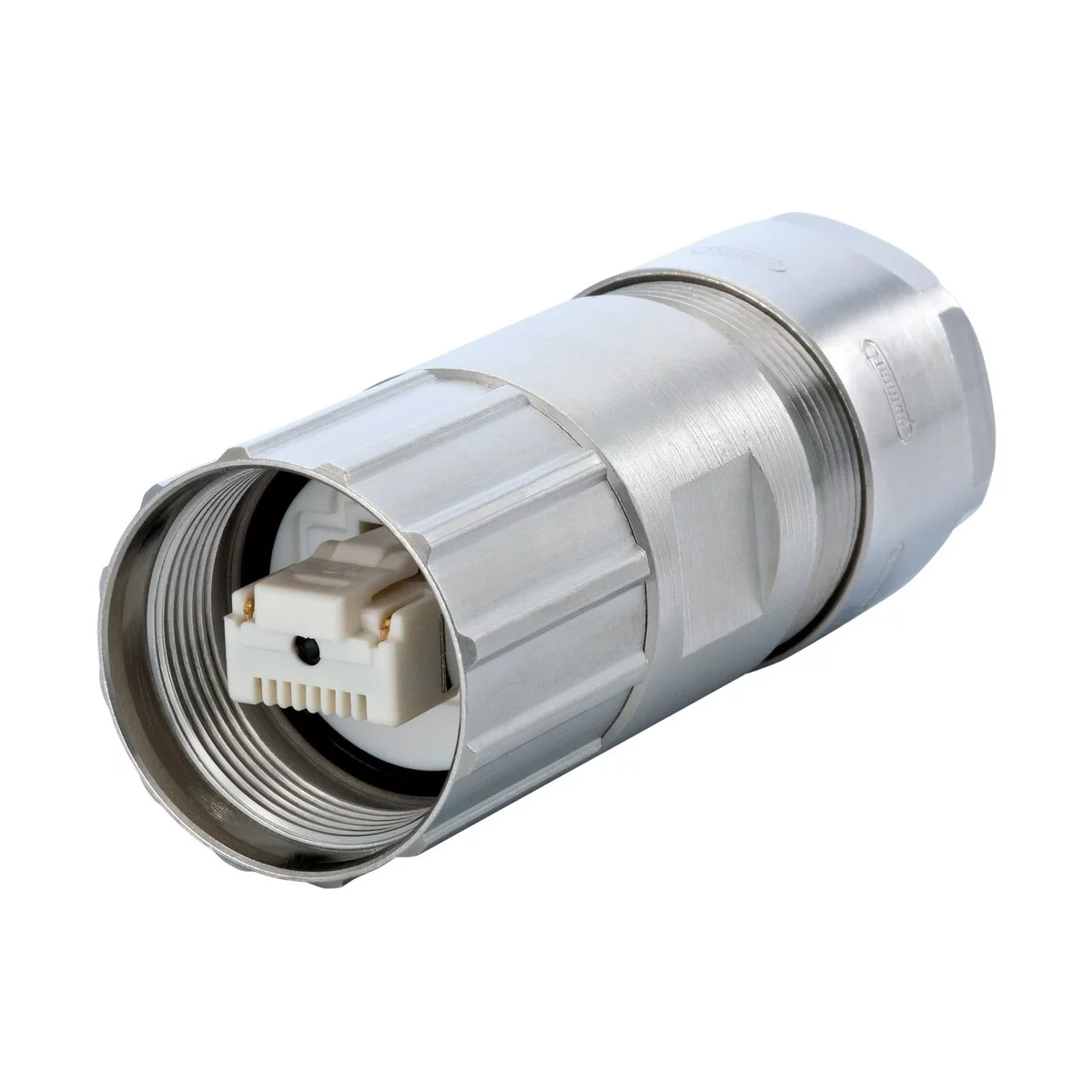

Straight connector, Female Thread
Connector with insert for patch cable
7.R10.400.000
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Number of contacts | 8;10mixed layout |
|---|---|
| Gender of required insert | Male |
| Connector diameter | 46 mm |
| Connector locking system | Screw |
| Protection degree | IP67 |
| Terminal type | IDC |
| Remark 1 | The A7RJ-081M41 plug can be recommended. A suitable patch cable can be tailor made. |
Electrical parameters
| Nominal current | upon request |
|---|---|
| Nominal voltage | upon request |
Material
| Housing material | Brass Alloy, Die Cast |
|---|---|
| Housing plating | Nickel Plated |
