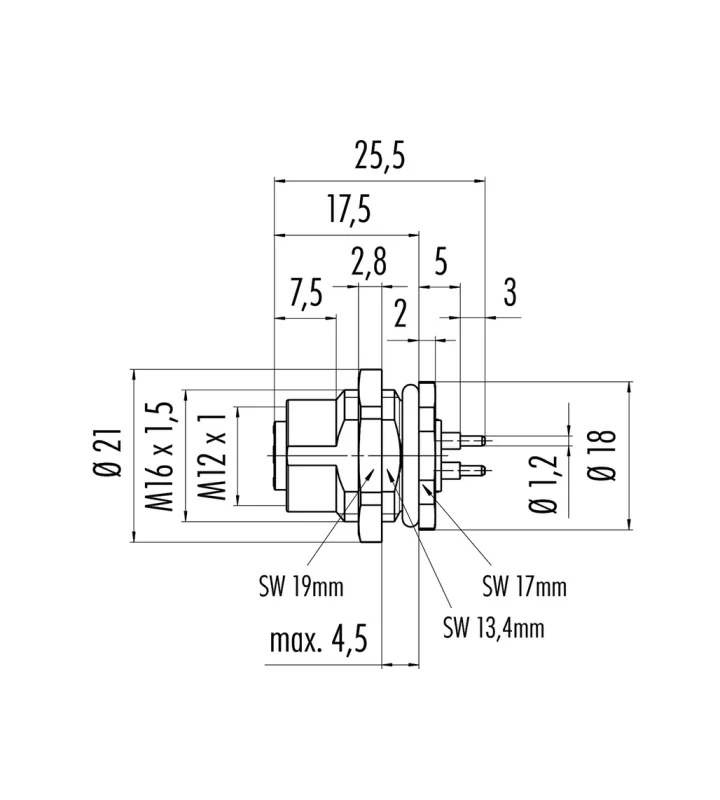

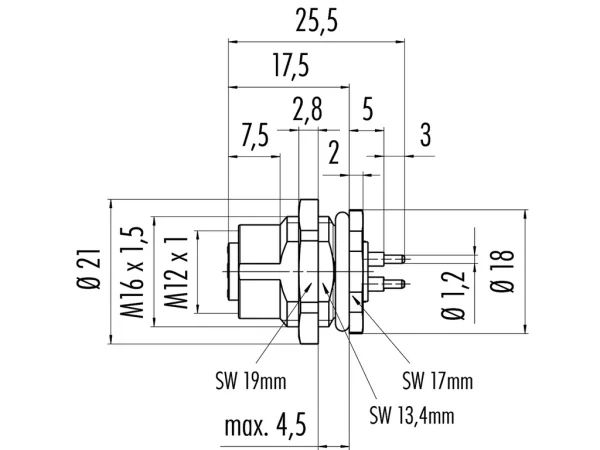

Female panel mount connector
front fastened, dip solder
86 0640 1000 00044
09 0632 90 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-T |
|---|---|
| Series | Power |
| Subseries | 813 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-T) |
| Mating cycles | >100 |
| Connector Diameter | 21 mm |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 63 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | Brass nickel plated / zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze), CuZn (Brass) |
| Plating | Au (Gold) |
