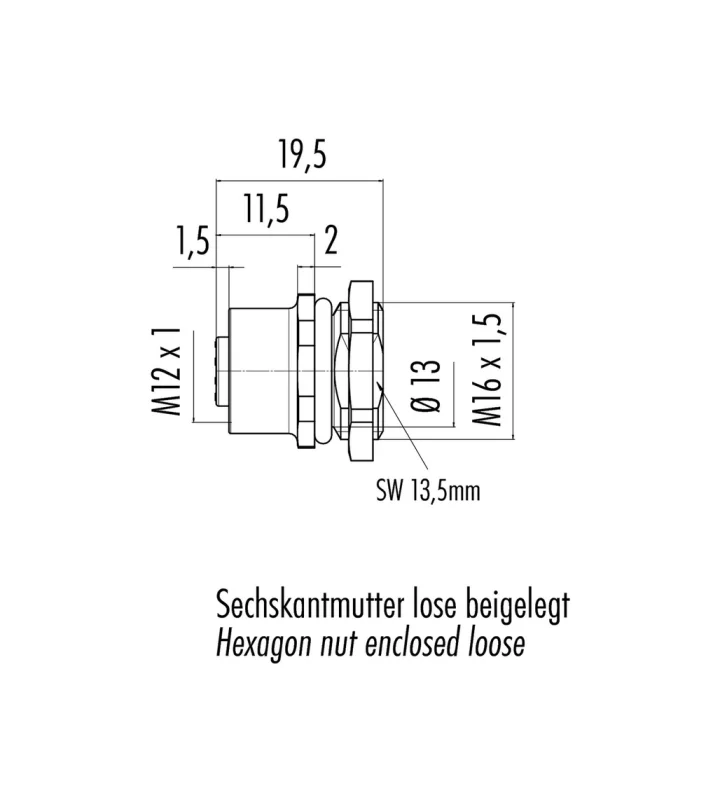

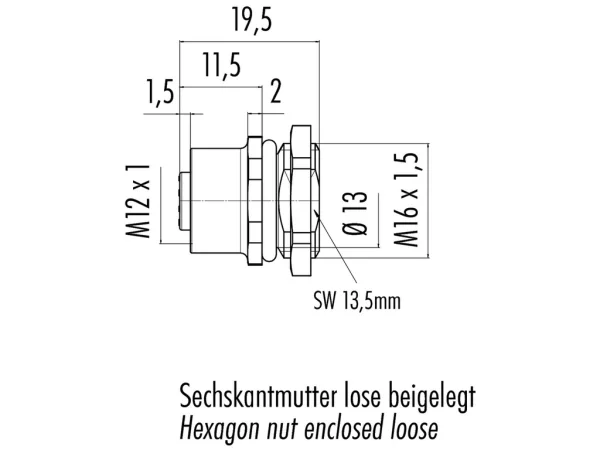

Female panel mount connector
Fastened from back side, solder
86 4332 1002 00004
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 13 mm |
| Wire-section | 0.25 mm² |
| Fixing thread | M16 x 1,5 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Fixing thread |
|---|---|---|---|---|---|
| 86 4232 1002 00004 | 4 | 250 V | 2500 V | >200 - ≤400 V | PG 9 |
| 86 4232 1002 00005 | 5 | 125 V | 1500 V | ≤200 V | PG 9 |
| 86 4332 1002 00005 | 5 | 125 V | 1500 V | ≤200 V | M16 x 1,5 |
| 86 4232 1002 00008 | 8 | 60 V | 800 V | ≤200 V | PG 9 |
| 86 4332 1002 00008 | 8 | 60 V | 800 V | ≤200 V | M16 x 1,5 |
