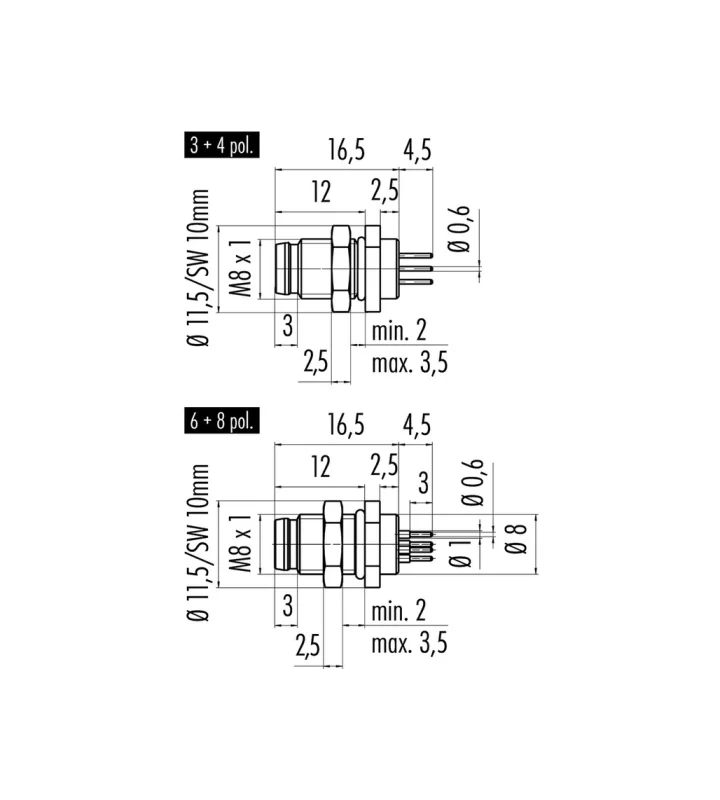

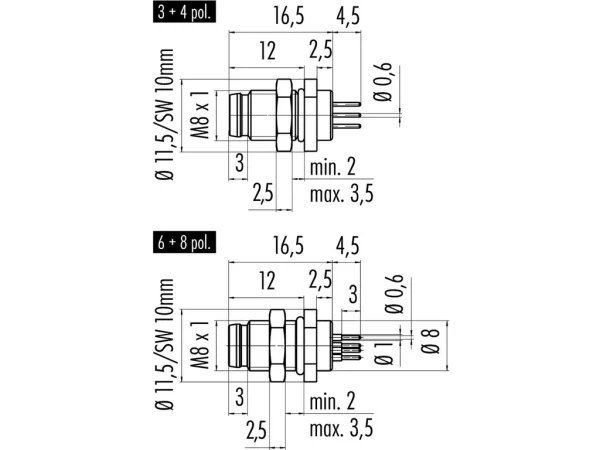

Male panel mount connector
Front fastened, dip solder
86 6119 1100 00006
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 768-718 |
| Gender | Male |
| Number of contacts | 6 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw, snap-in |
| Mating cycles | >100 |
| Connector Diameter | 11.5 mm |
Electrical parameters
| Nominal current | 1.5 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Material group | Nominal voltage | Impuls voltage |
|---|---|---|---|---|
| 86 6119 1100 00003 | 3 | II | 60 V | 800 V |
| 86 6119 1100 00008 | 8 | II | 30 V | 800 V |
| 86 6119 1100 00012 | 12 | I | 30 V | 500 V |
| 86 6119 1100 00004 | 4 | II | 30 V | 800 V |
