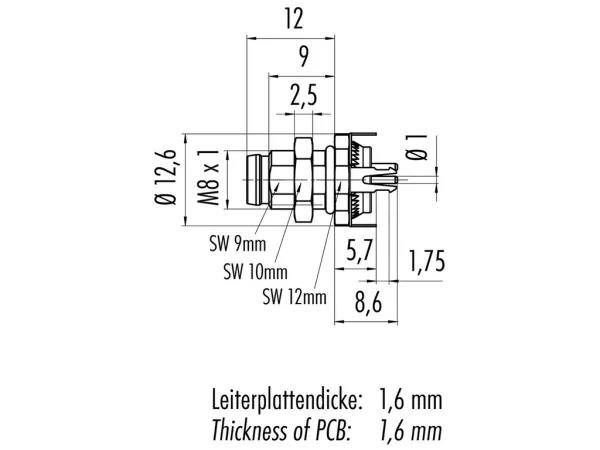

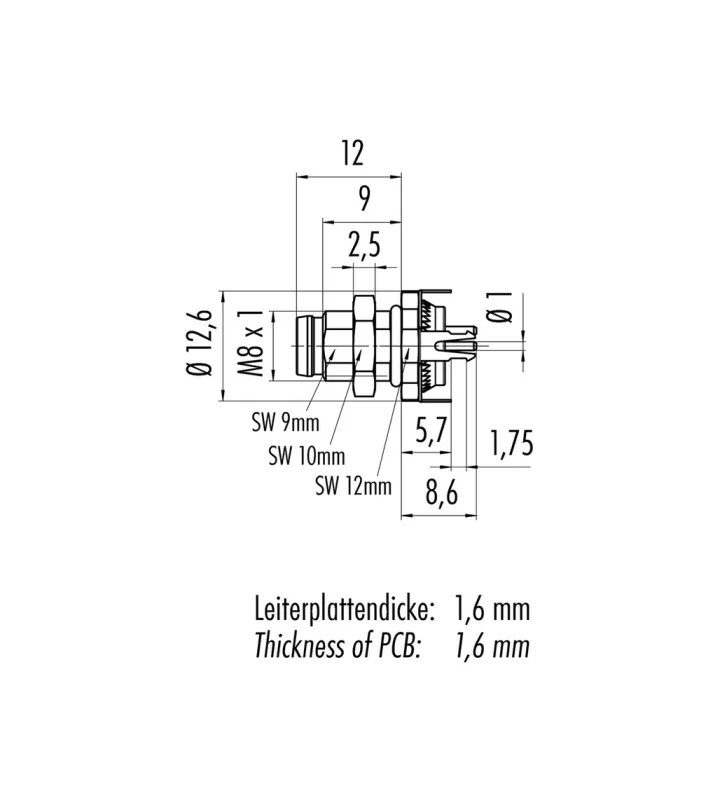

Male panel mount connector
Front fastened, with shielding sheet
86 6319 1120 00006
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 768-718 |
| Gender | Male |
| Number of contacts | 6 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw, snap-in |
| Mating cycles | >100 |
| Connector Diameter | 12.6 mm |
Electrical parameters
| Nominal current | 1.5 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
