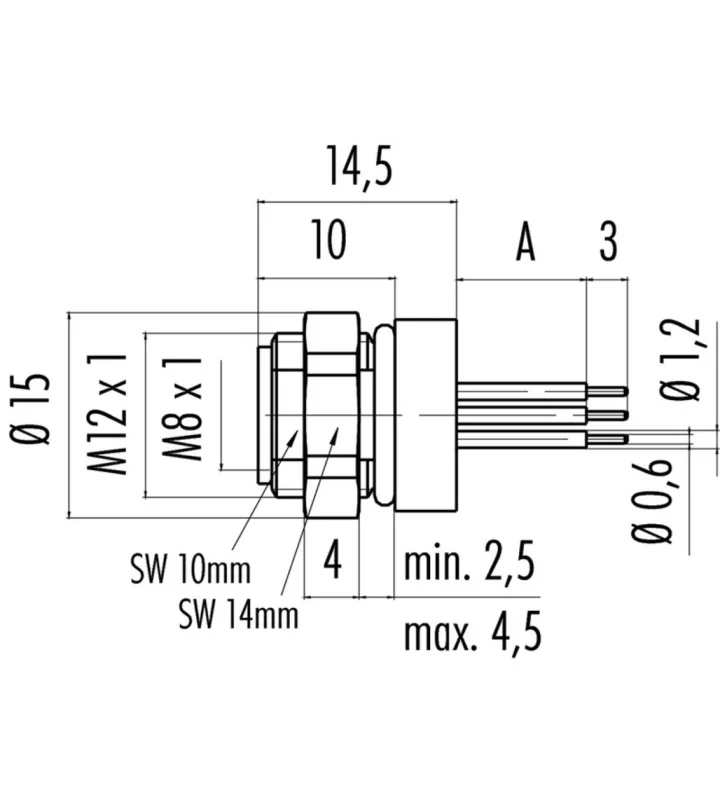

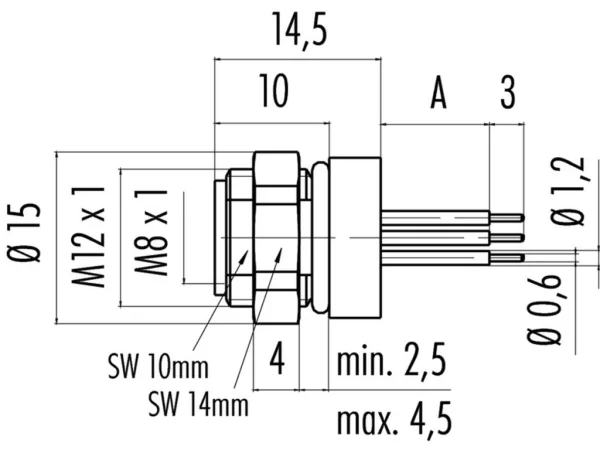

Female socket
Front fastened, dip solder
86 6518 1100 00006
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 768-718 |
| Gender | Female |
| Number of contacts | 6 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
| Connector Diameter | 15 mm |
| Contact Length | 1.5 mm |
Electrical parameters
| Nominal current | 1.5 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Contact Length |
|---|---|---|---|
| 86 6518 1123 00003 | 3 | 60 V | 9.5 mm |
| 86 6518 1122 00003 | 3 | 60 V | 4.7 mm |
| 86 6518 1100 00003 | 3 | 60 V | 0.5 mm |
| 86 6518 1123 00004 | 4 | 30 V | 9.5 mm |
| 86 6518 1122 00004 | 4 | 30 V | 4.7 mm |
| 86 6518 1100 00004 | 4 | 30 V | 0.5 mm |
| 86 6518 1100 00008 | 8 | 30 V | 1.5 mm |
