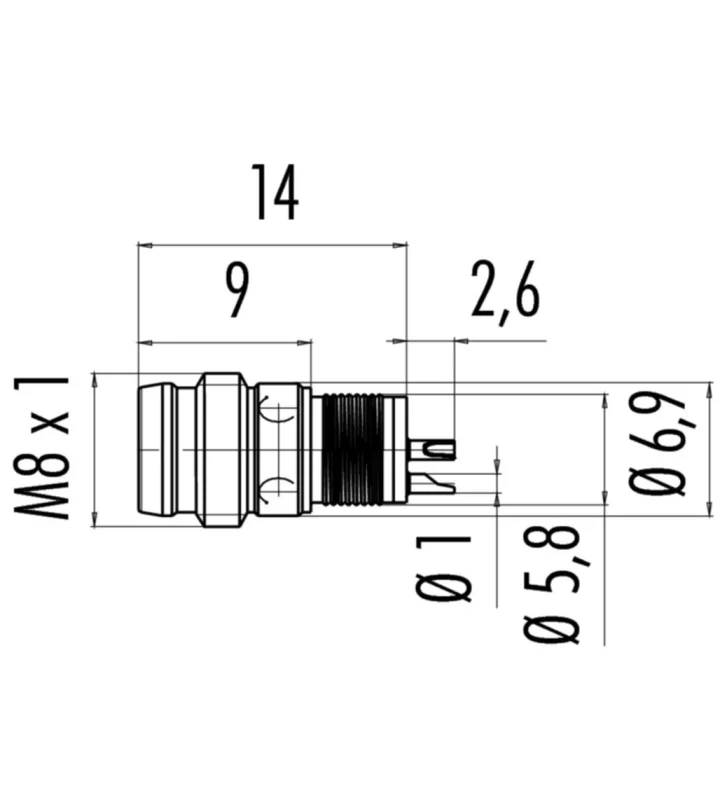

Male receptacle
Combi version
86 6919 0002 32704
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 768-718 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Solder |
| Upper temperature | Snap-in +70, Screw +85 |
| Lower temperature | -40 °C |
| Protection degree | Snap-in IP65, Screw IP67 |
| Locking system | Screw, snap-in |
| Mating cycles | Snap-in >50, Screw >100 |
| Connector Diameter | 6.9 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 10-30 (with LED) V |
| Impuls voltage | 500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
