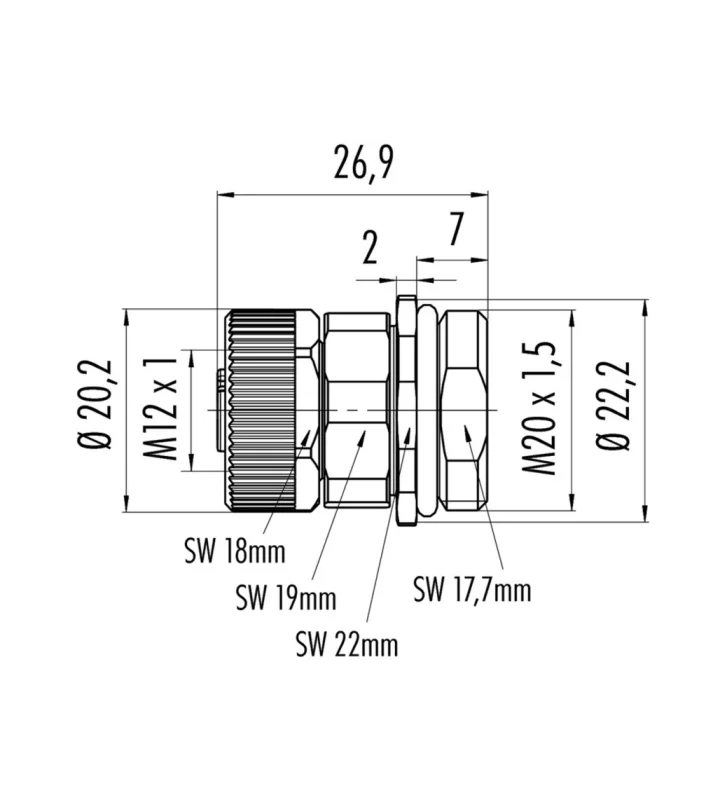

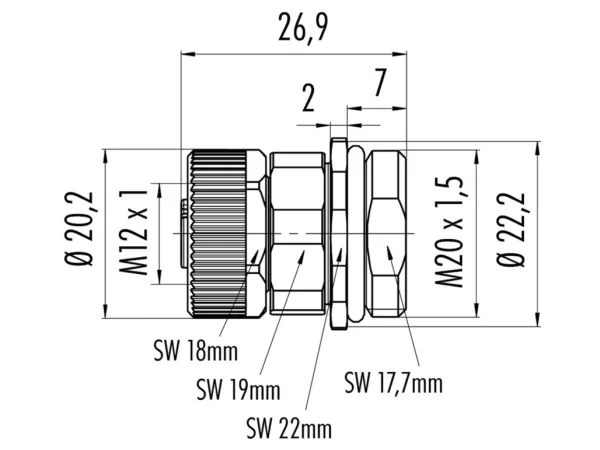

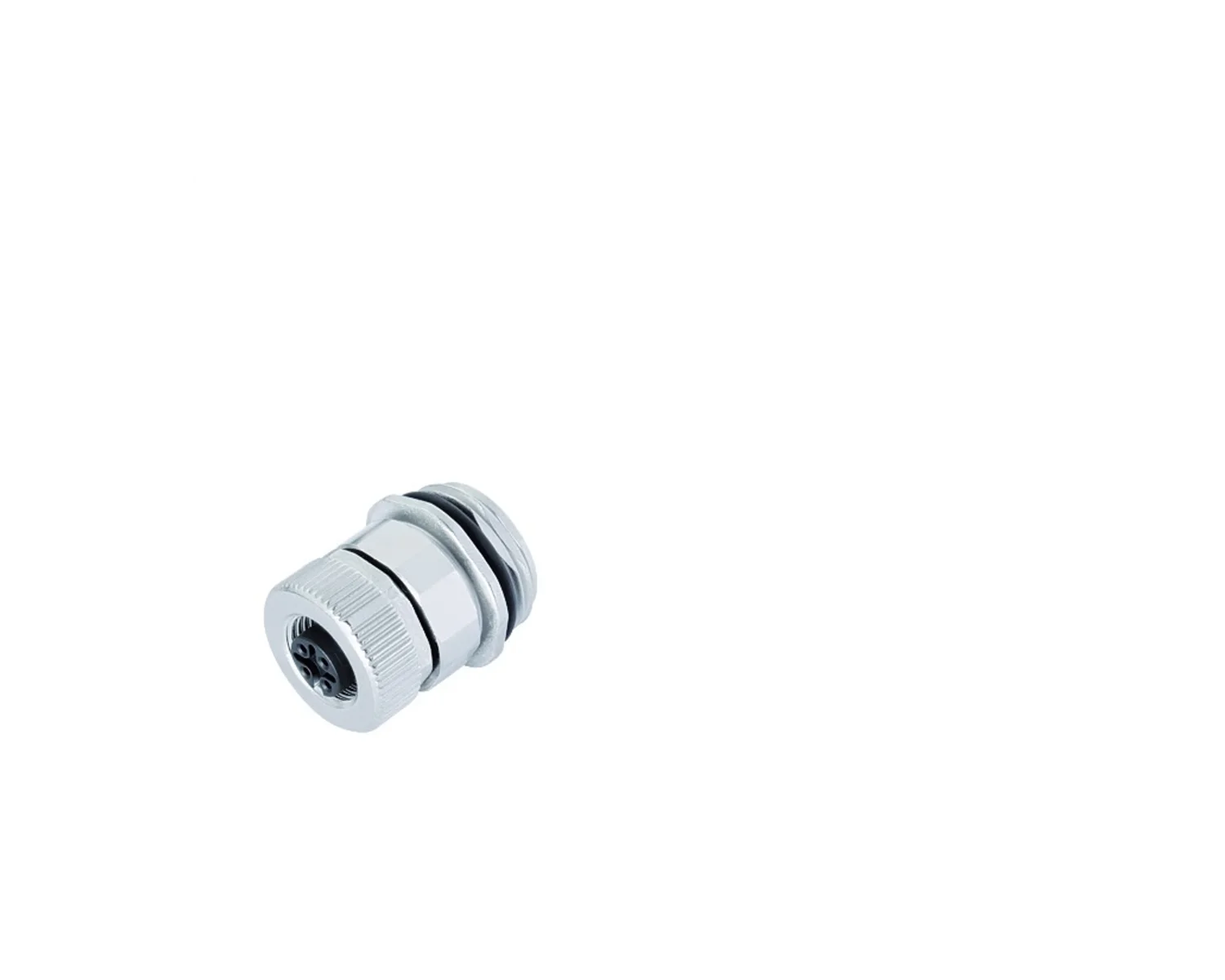

Female panel mount connector
Screw clamp connection
UL-approval
99 0382 500 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Screw clamp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 22.2 mm |
| Wire-section | 0.5 mm² |
| Fixing thread | M20 x 1,5 |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
