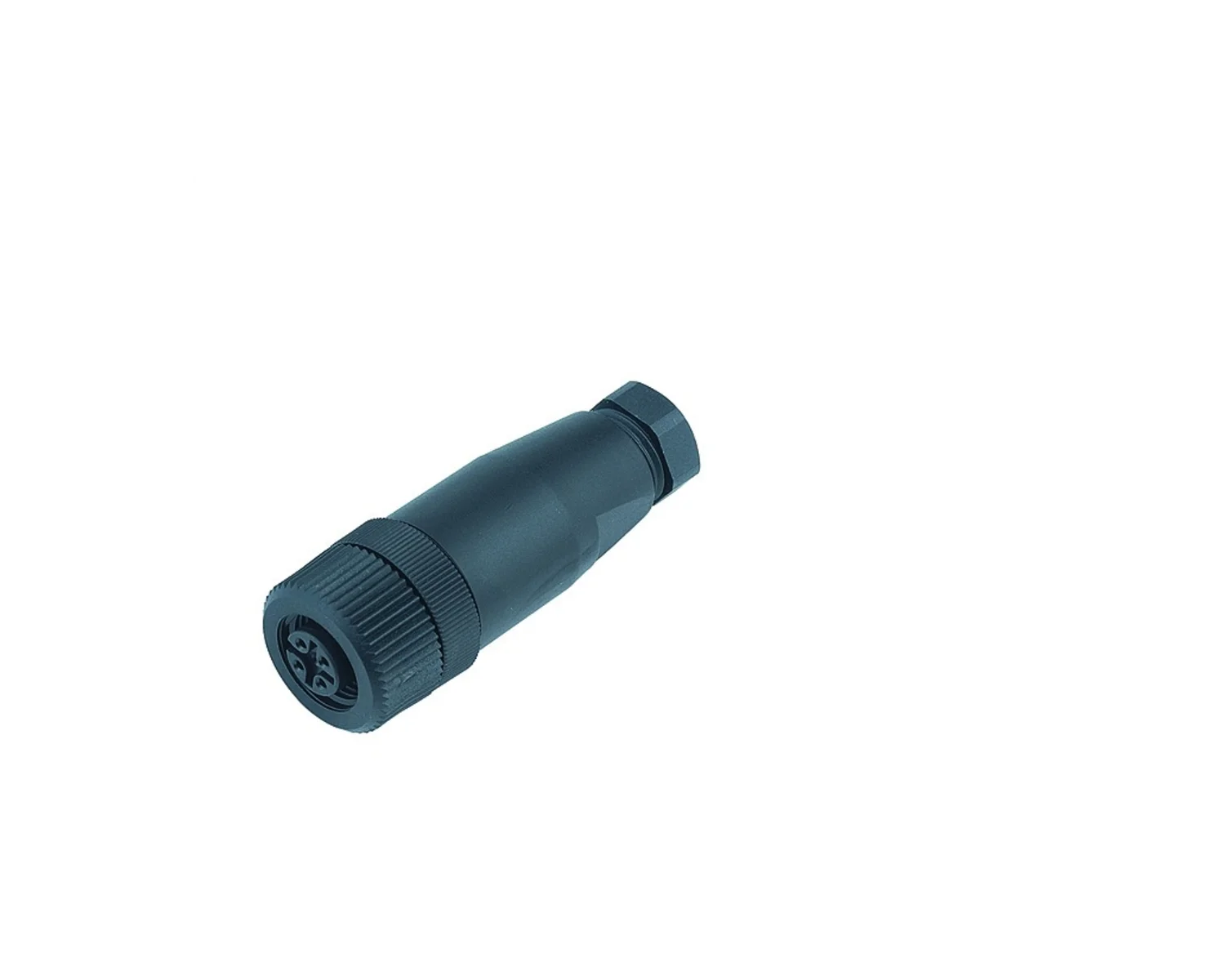

Female cable connector
Plastic locking system, screw clamp connection
99 0430 30 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >50 |
| Connector Diameter | 20 mm |
| Cable outlet | 4-6 (Housing transparent) mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 8 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable outlet |
|---|---|---|---|---|---|
| 99 0430 10 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 4-6 (Housing black) mm |
| 99 0430 57 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 6-8 (Housing black) mm |
| 99 0436 10 05 | 5 | 125 V | 1500 V | ≤200 V | 4-6 mm |
| 99 0436 57 05 | 5 | 125 V | 1500 V | ≤200 V | 6-8 mm |
