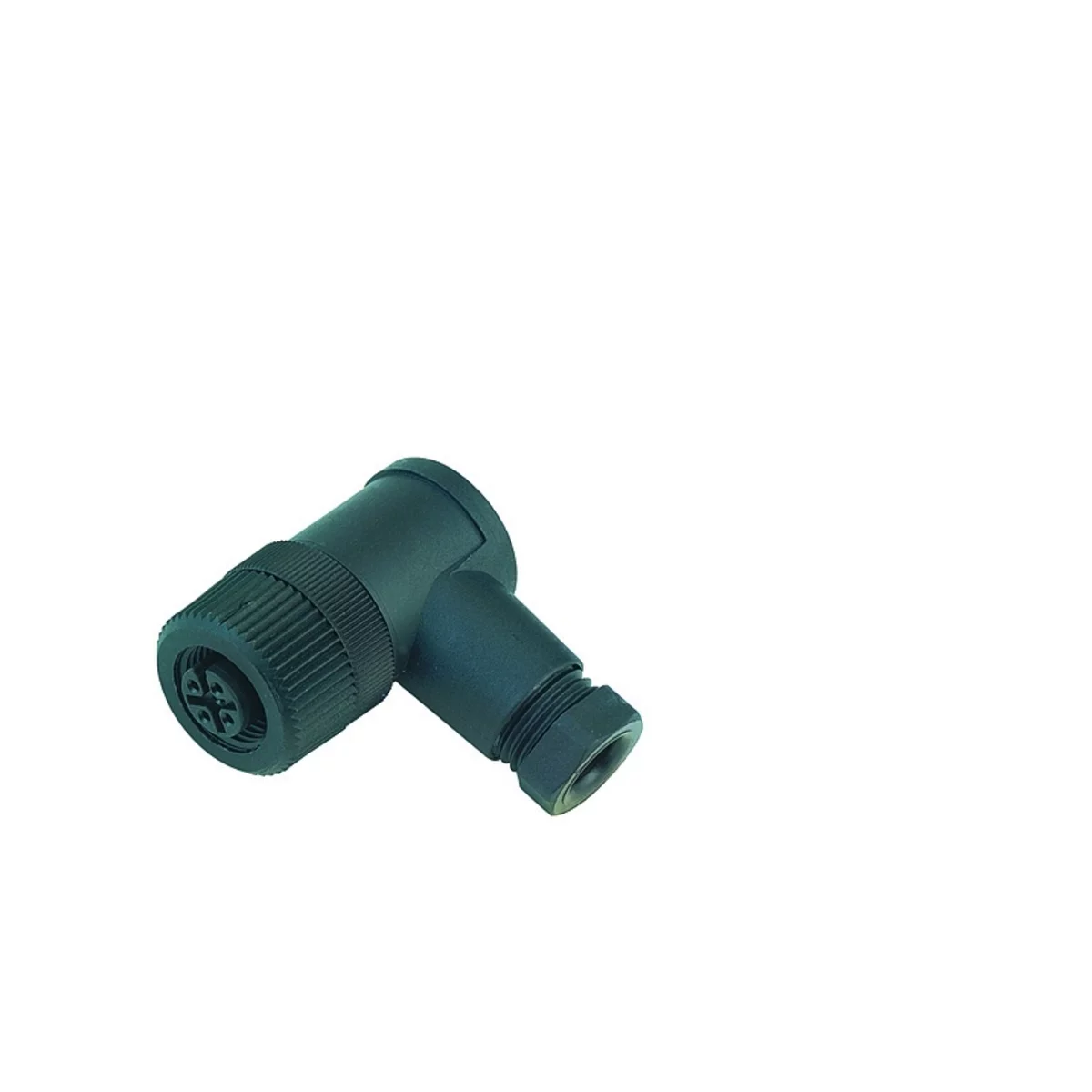

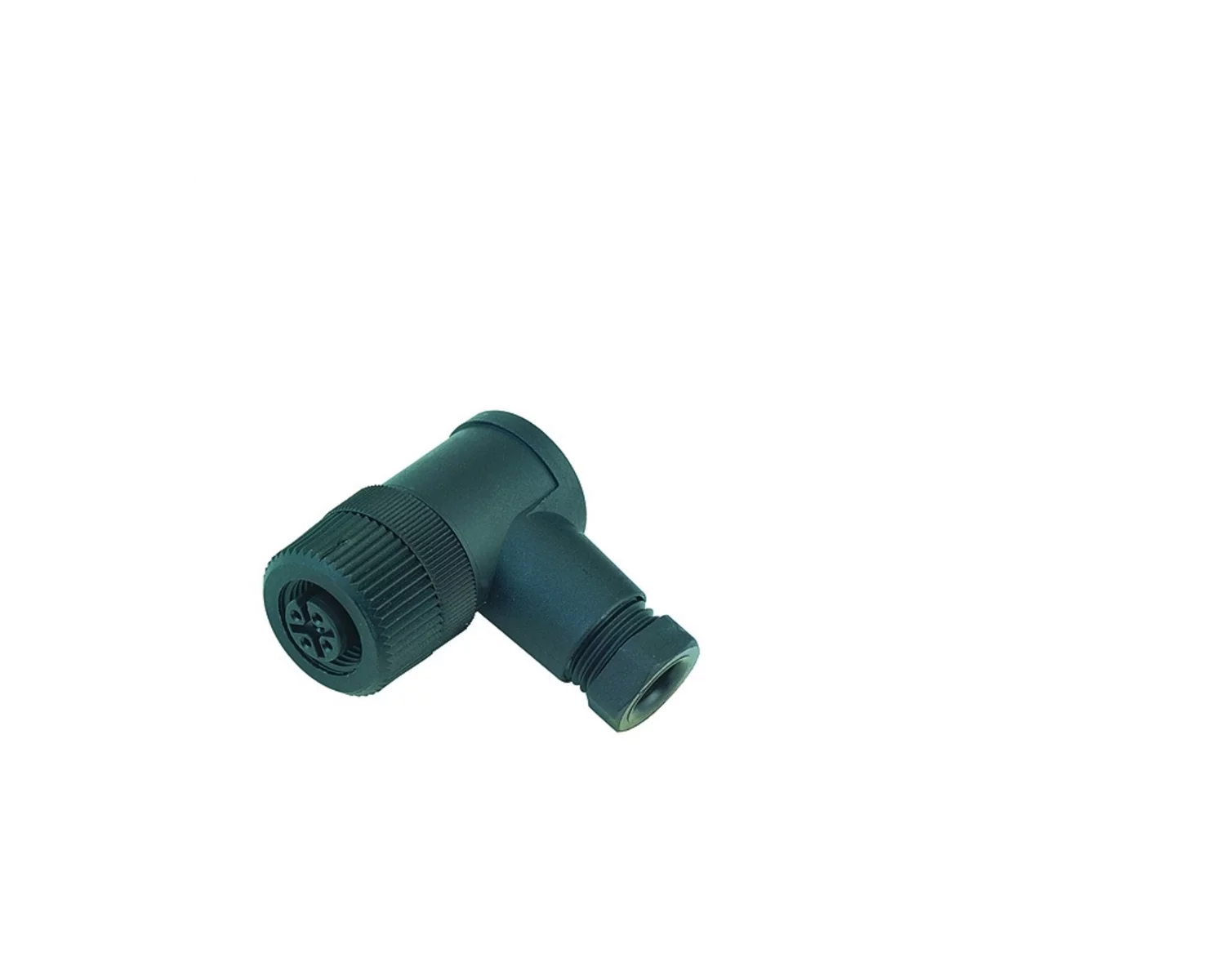

Female angled connector
Plastic locking system, screw clamp connection
UL-approval
99 0430 68 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >50 |
| Connector Diameter | 20 mm |
| Cable outlet | 6-8 (Housing transparent) mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 8 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PBT |
| Material of contact | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable outlet |
|---|---|---|---|---|---|
| 99 0430 00 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 4-6 (Housing black) mm |
| 99 0430 20 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 4-6 (Housing transparent) mm |
| 99 0430 69 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 6-8 (Housing black) mm |
| 99 0436 00 05 | 5 | 125 V | 1500 V | ≤200 V | 4-6 mm |
| 99 0436 69 05 | 5 | 125 V | 1500 V | ≤200 V | 6-8 mm |
