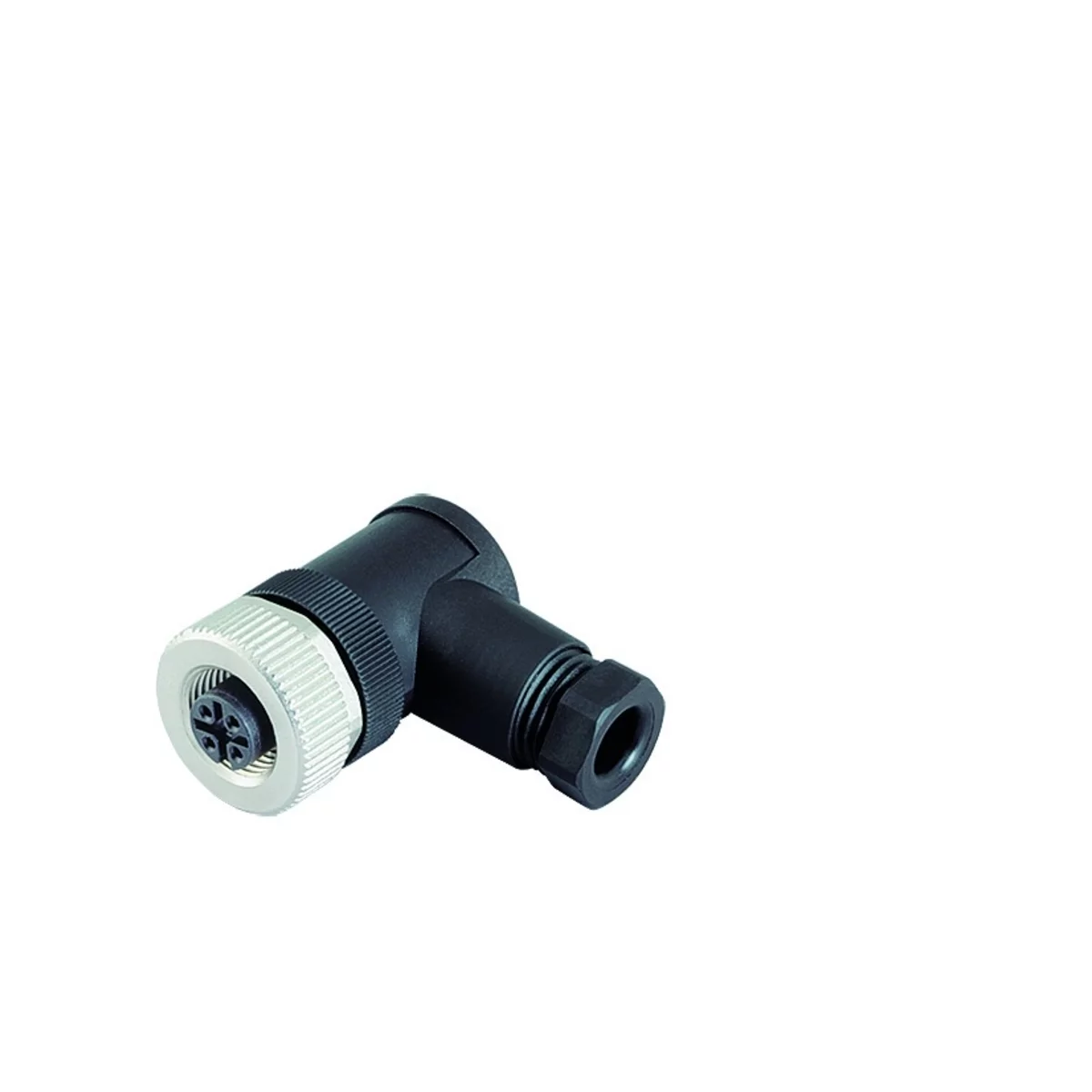

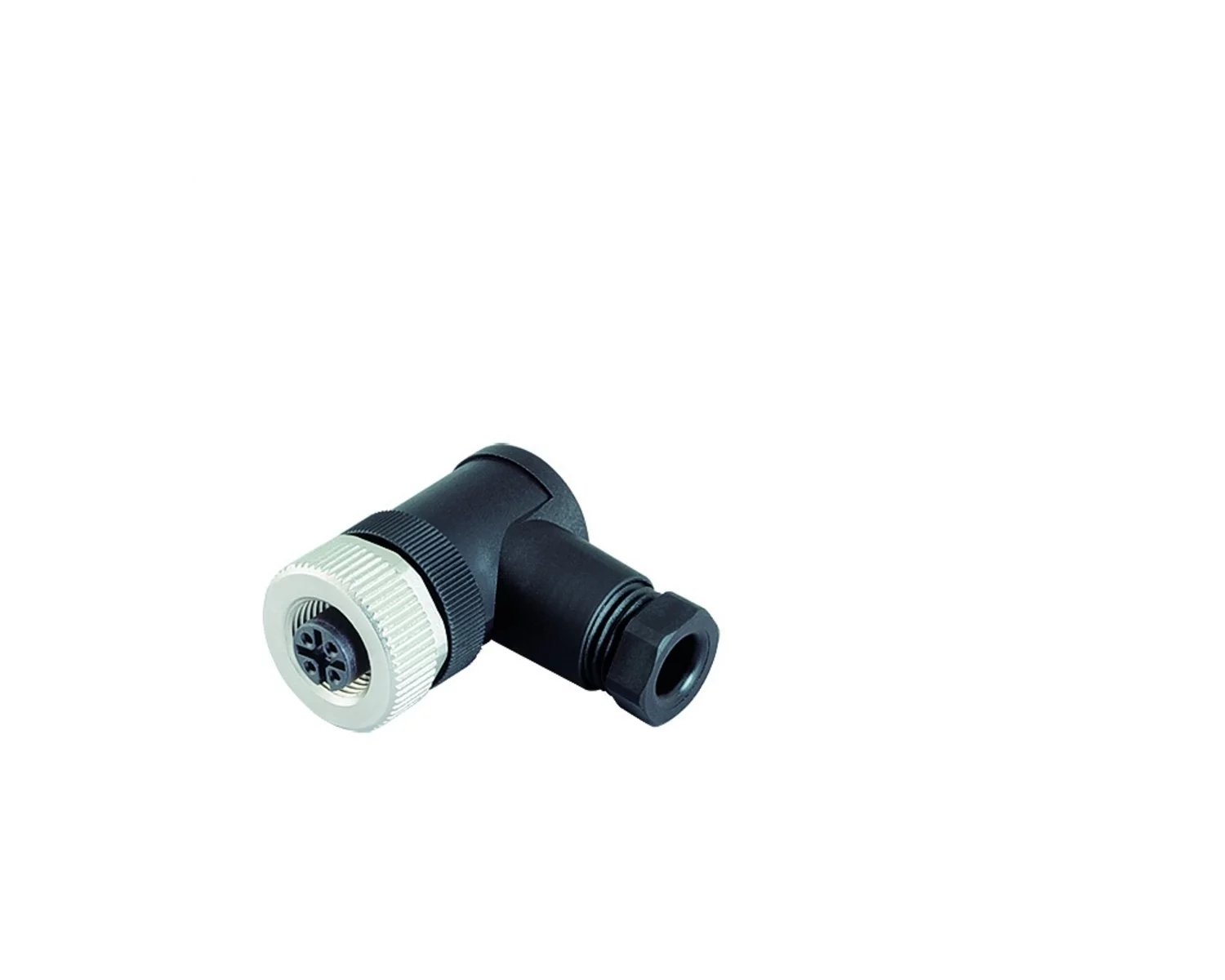

Female angled connector
With wire clamp connection
99 0536 52 05
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Female |
| Number of contacts | 5 |
| Contact terminal | Wire clamp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |

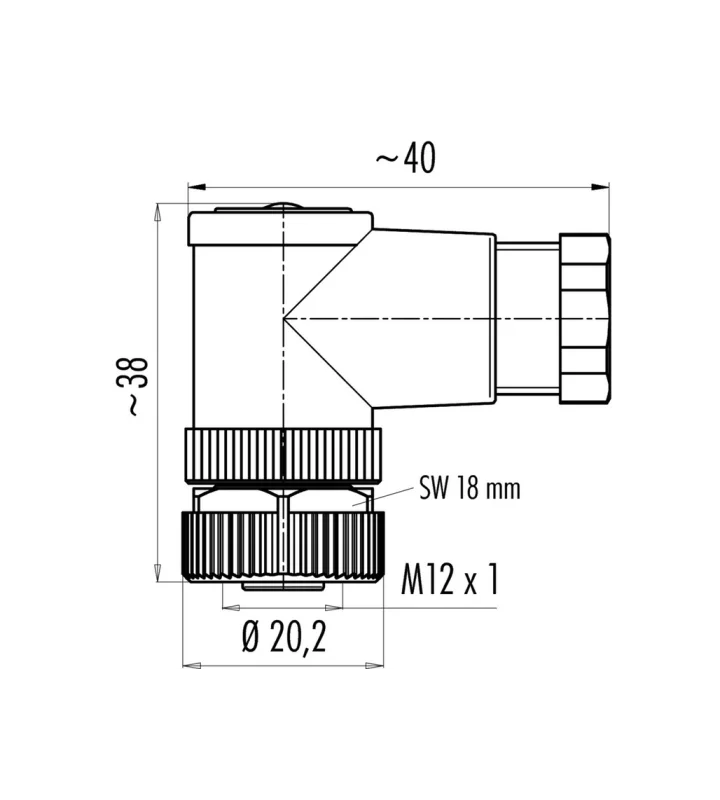

| Connector Diameter | 20,2 mm |
| Cable outlet | 6-8 mm |
| Wire-section | 0.5 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | PBT, zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable outlet |
|---|---|---|---|---|---|
| 99 0524 24 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 4-6 mm |
| 99 0524 52 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 6-8 mm |
| 99 0536 24 05 | 5 | 125 V | 1500 V | ≤200 V | 4-6 mm |
