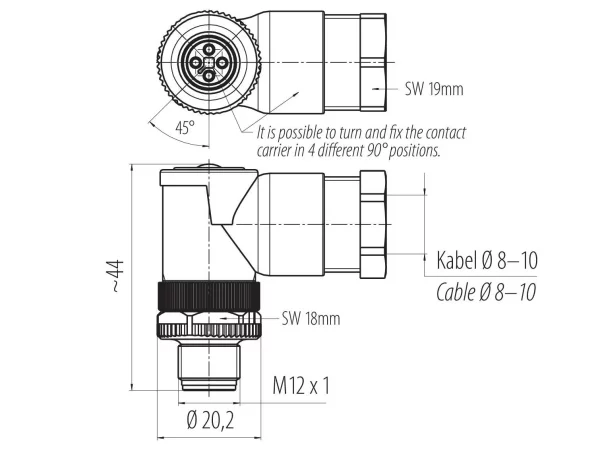

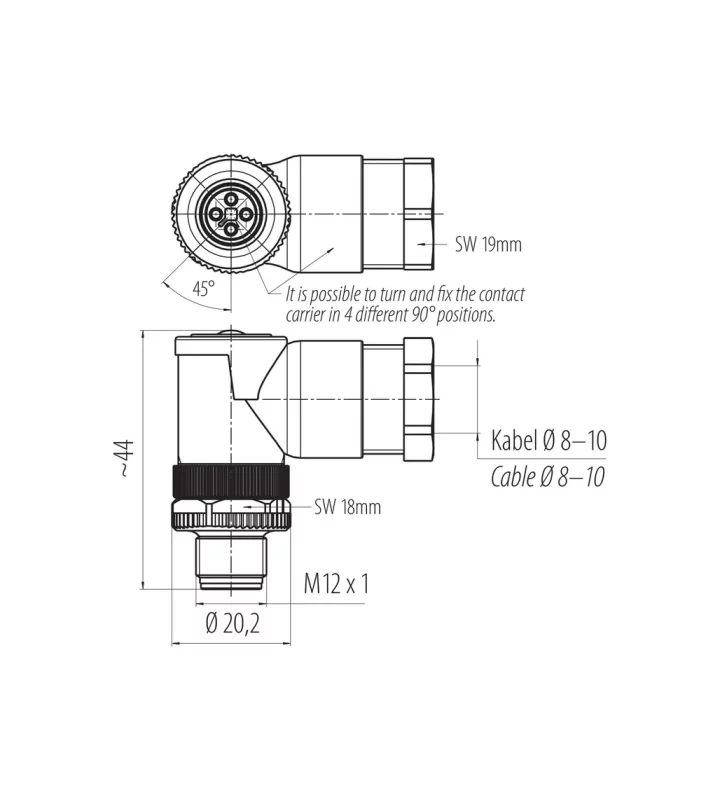

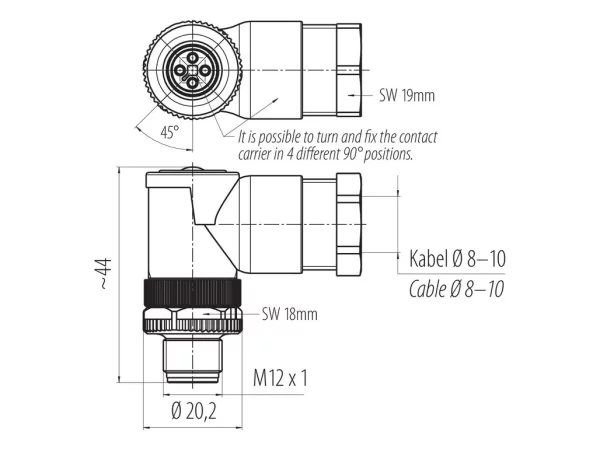

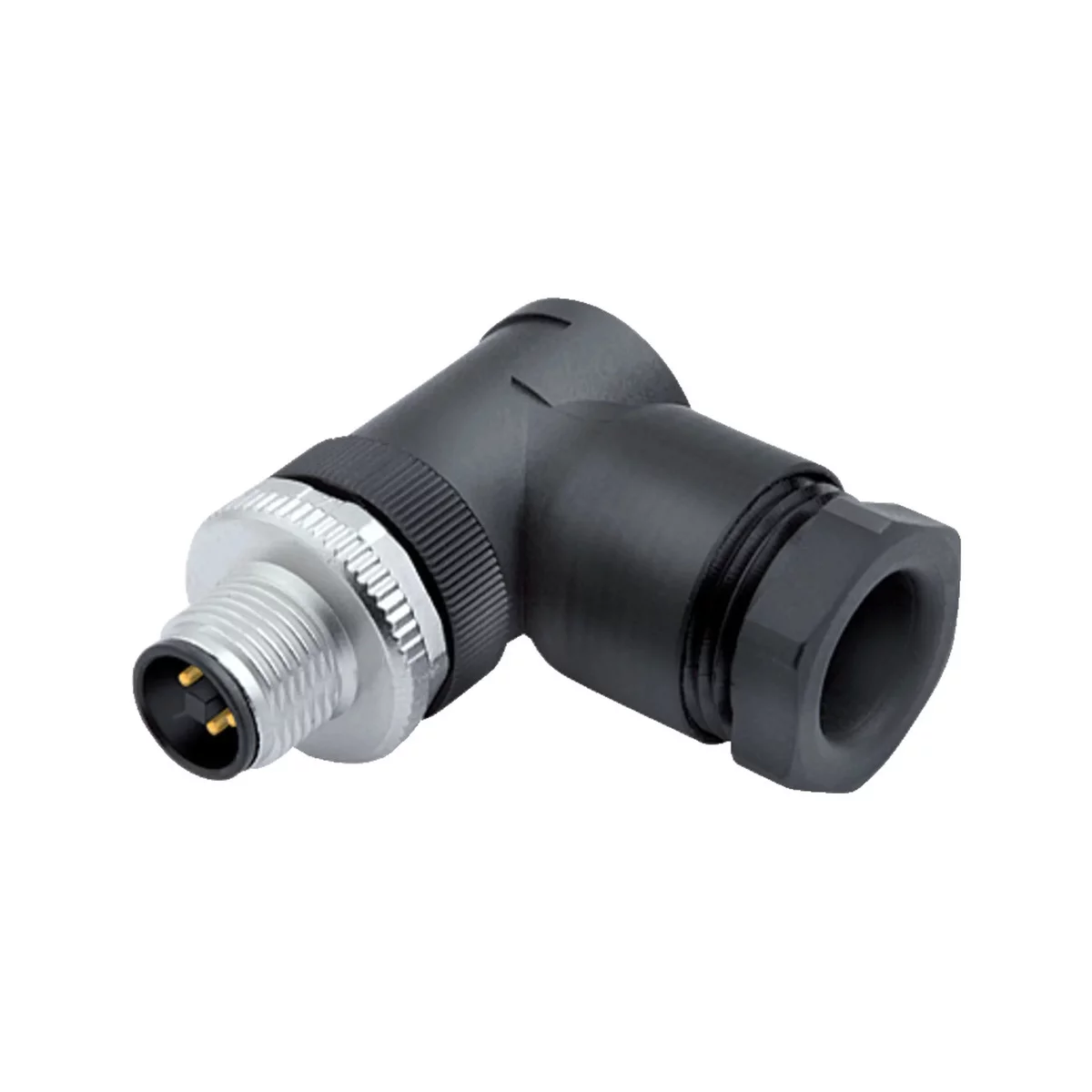

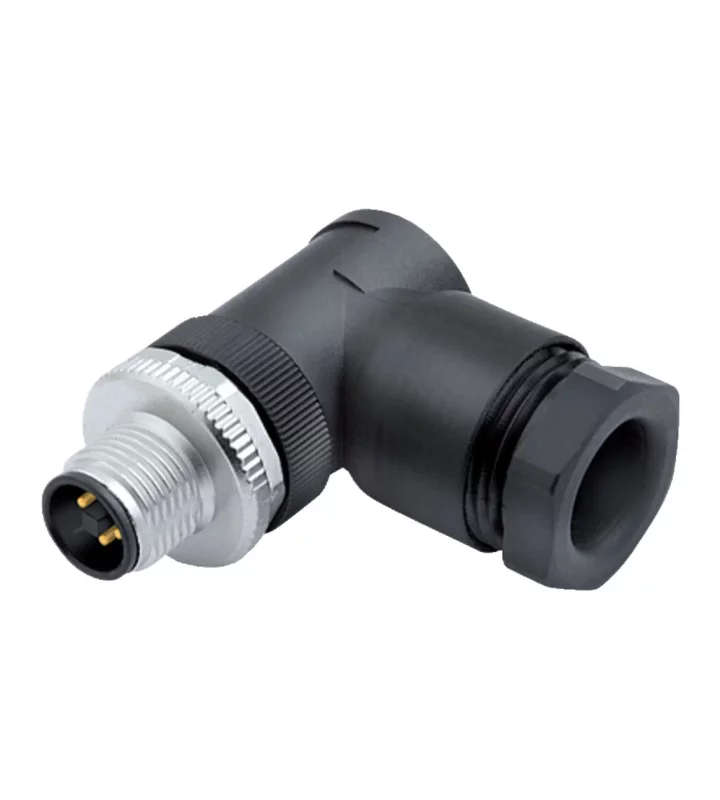

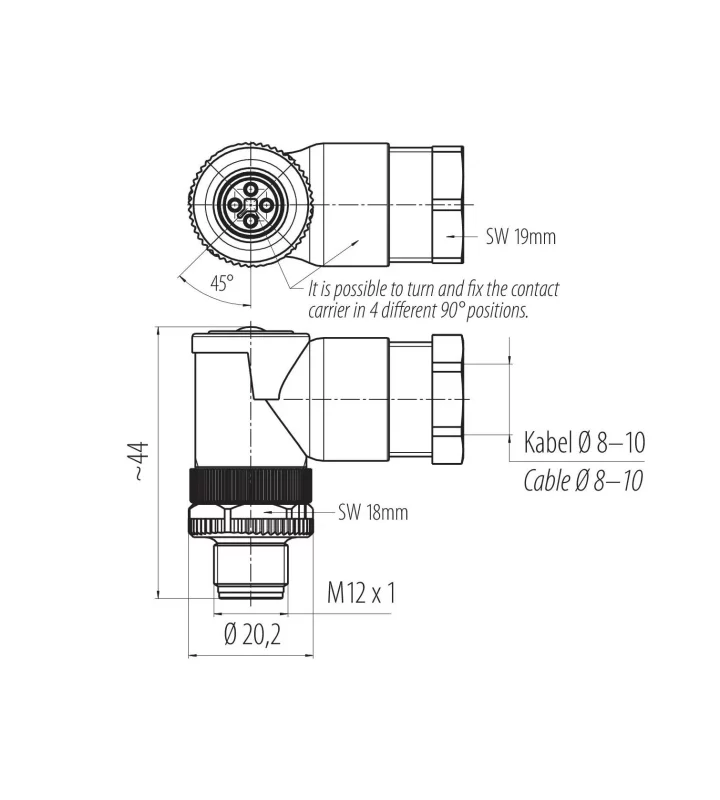

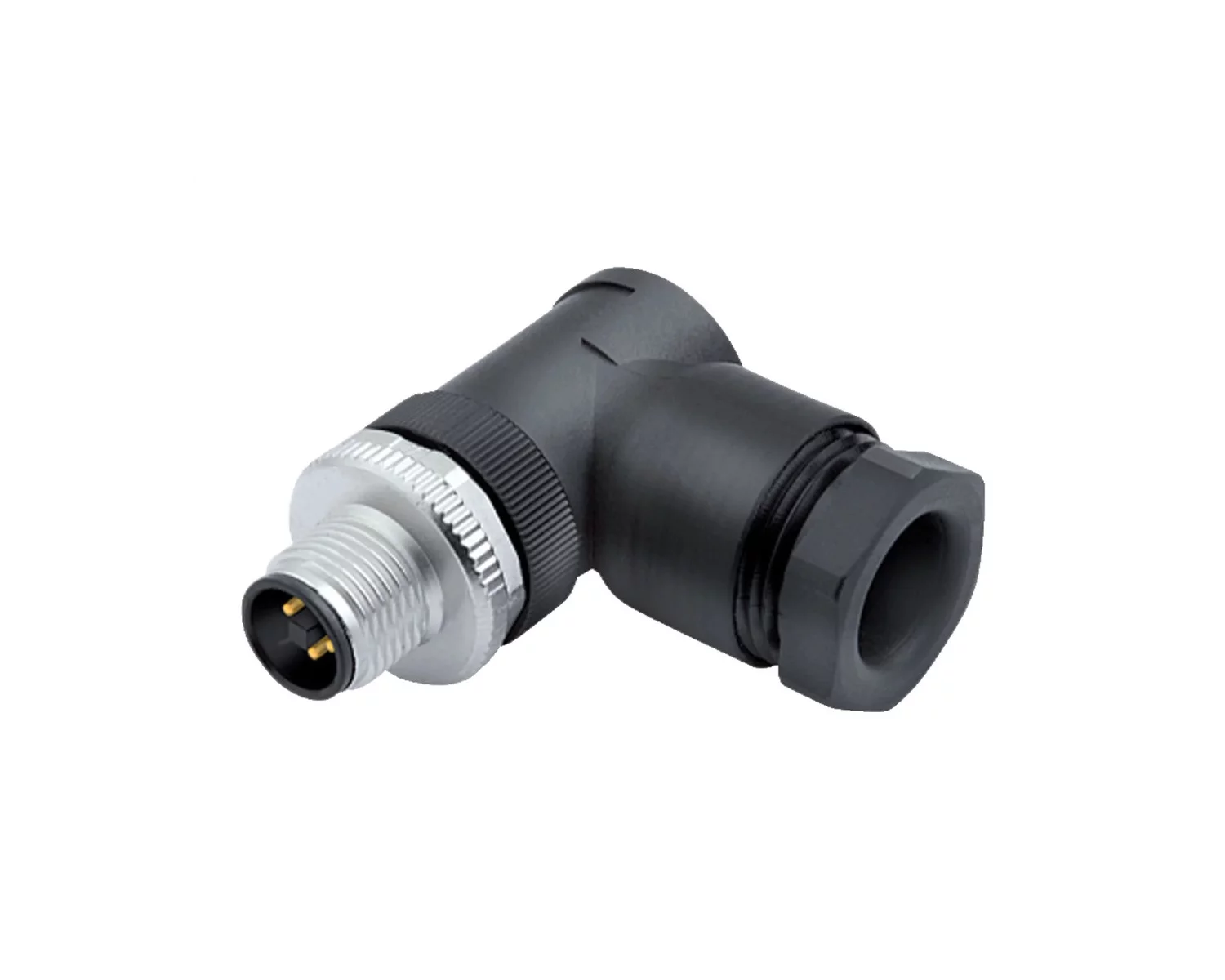

M12 Male angled connector
Unshielded, screw clamp
99 0629 58 04
Specificaties
General Characteristics
| Series | Power |
|---|---|
| Subseries | 813 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Screw clamp |
| Upper temperature | 85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw |
| Mating cycles | >100 |
| Connector Diameter | 20.2 mm |
| Cable outlet | 2026-10-08 00:00:00 |
| Wire gauge | 16 AWG |
| Wire-section | max. 1,50 |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 63 V |
| Impuls voltage | 1500 V |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
