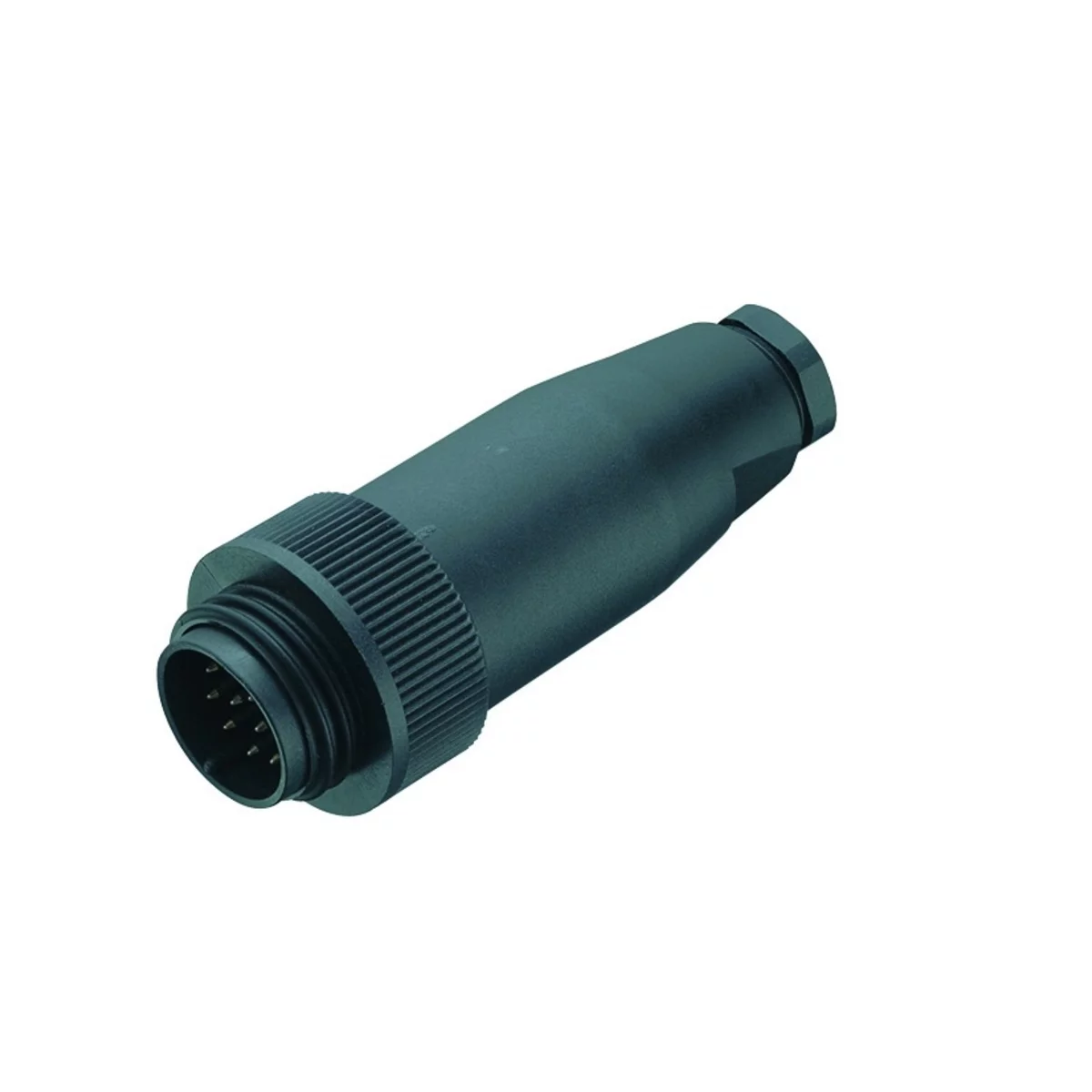

Male cable connector
99 0737 00 24
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | RD30 |
|---|---|
| Series | Power |
| Subseries | 694 |
| Gender | Male |
| Number of contacts | 24 |
| Contact terminal | Solder |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP65 |
| Locking system | Screw (RD30) |
| Mating cycles | >500 |
| Connector Diameter | 40 mm |
| Cable outlet | 10-12 mm |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | PA (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Max. contact resistance | Plating | Nominal Voltage | Cable outlet | Wire-section |
|---|---|---|---|---|---|---|---|---|---|---|
| 99 0709 00 05 | >10 - ≤20 A | 5 | 400 V | Screw | 6000 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 10-12 mm | 2.5 mm² |
| 99 0709 02 05 | >10 - ≤20 A | 5 | 400 V | Screw | 6000 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 12-14 mm | 2.5 mm² |
| 99 0709 03 05 | >10 - ≤20 A | 5 | 400 V | Screw | 6000 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 14-18 mm | 2.5 mm² |
| 99 0717 00 13 | >5 - ≤10 A | 13 | 250 V | Solder | 4000 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 10-12 mm | 1 mm² |
| 99 0717 02 13 | >5 - ≤10 A | 13 | 250 V | Solder | 4000 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 12-14 mm | 1 mm² |
| 99 0717 03 13 | >5 - ≤10 A | 13 | 250 V | Solder | 4000 V | 5 mΩ | Ag (Silver) | >200 - ≤400 V | 14-18 mm | 1 mm² |
| 99 0737 02 24 | ≤5 A | 24 | 125 V | Solder | 2500 V | 3 mΩ | Au (Gold) | ≤200 V | 12-14 mm | 0.25 mm² |
| 99 0737 03 24 | ≤5 A | 24 | 125 V | Solder | 2500 V | 3 mΩ | Au (Gold) | ≤200 V | 14-18 mm | 0.25 mm² |
