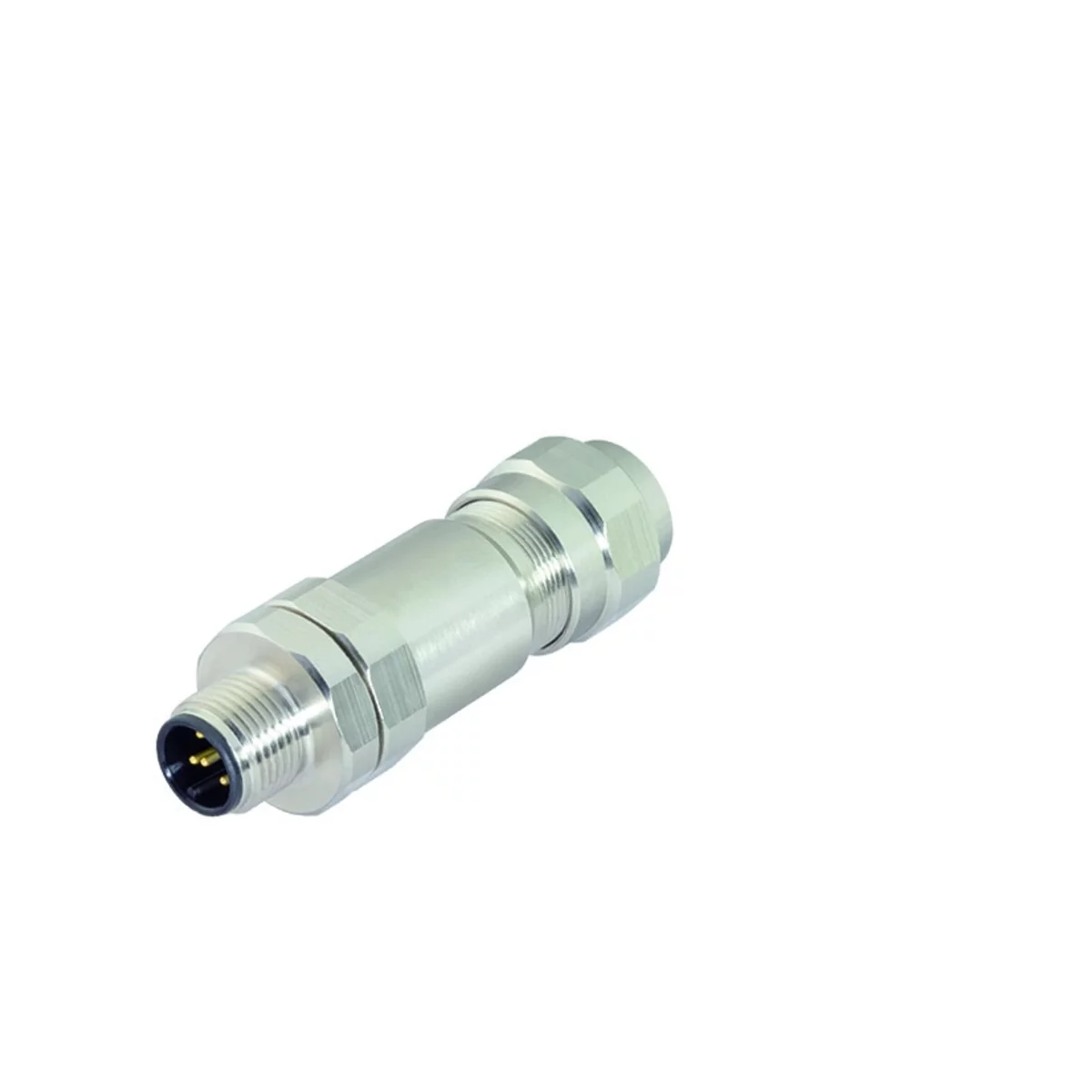

Male cable connector
Shieldable, screw clamp connection, shielding ring, stainless steel version
UL-approval
99 1429 991 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 20 mm |
| Cable outlet | 3-5,5 mm |
| Wire-section | 0.75 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Stainless steel 1.4404 |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable outlet | Wire-section |
|---|---|---|---|---|---|---|
| 99 1429 992 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 5,5-8,6 mm | 0.75 mm² |
| 99 1437 991 05 | 5 | 125 V | 1500 V | ≤200 V | 3-5,5 mm | 0.75 mm² |
| 99 1437 992 05 | 5 | 125 V | 1500 V | ≤200 V | 5,5-8,6 mm | 0.75 mm² |
| 99 1487 992 08 | 8 | 60 V | 800 V | ≤200 V | 5,5-8,6 mm | 0.5 mm² |
