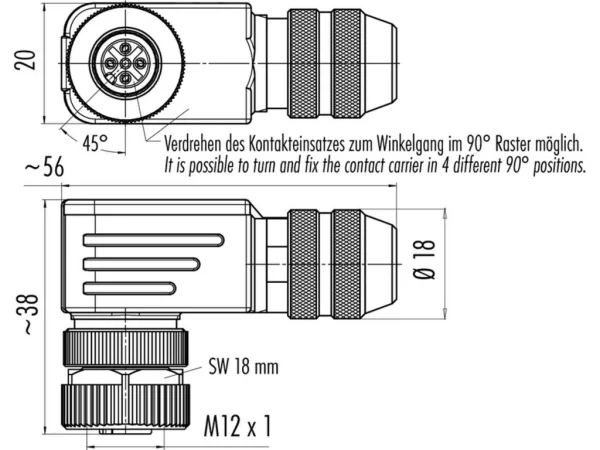

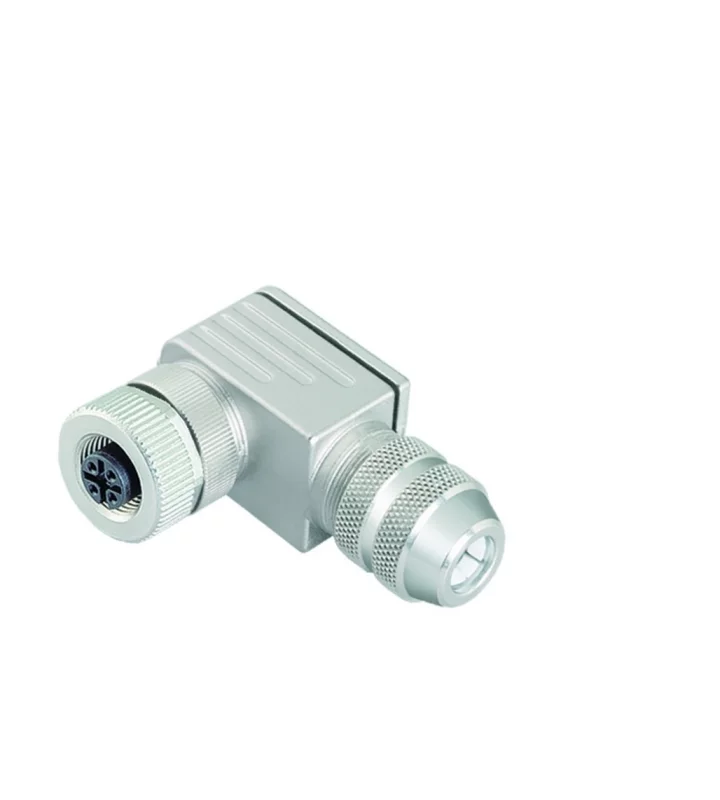

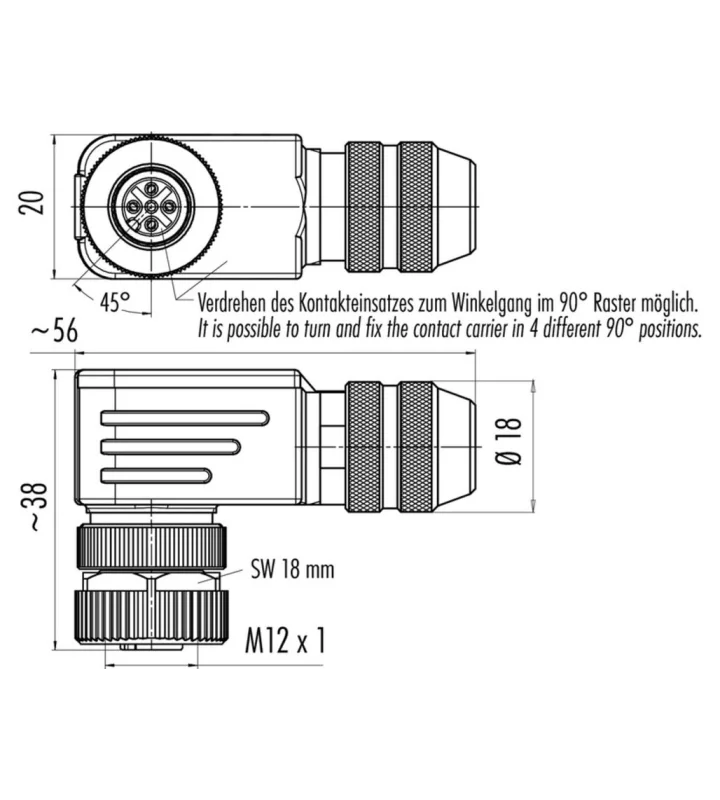

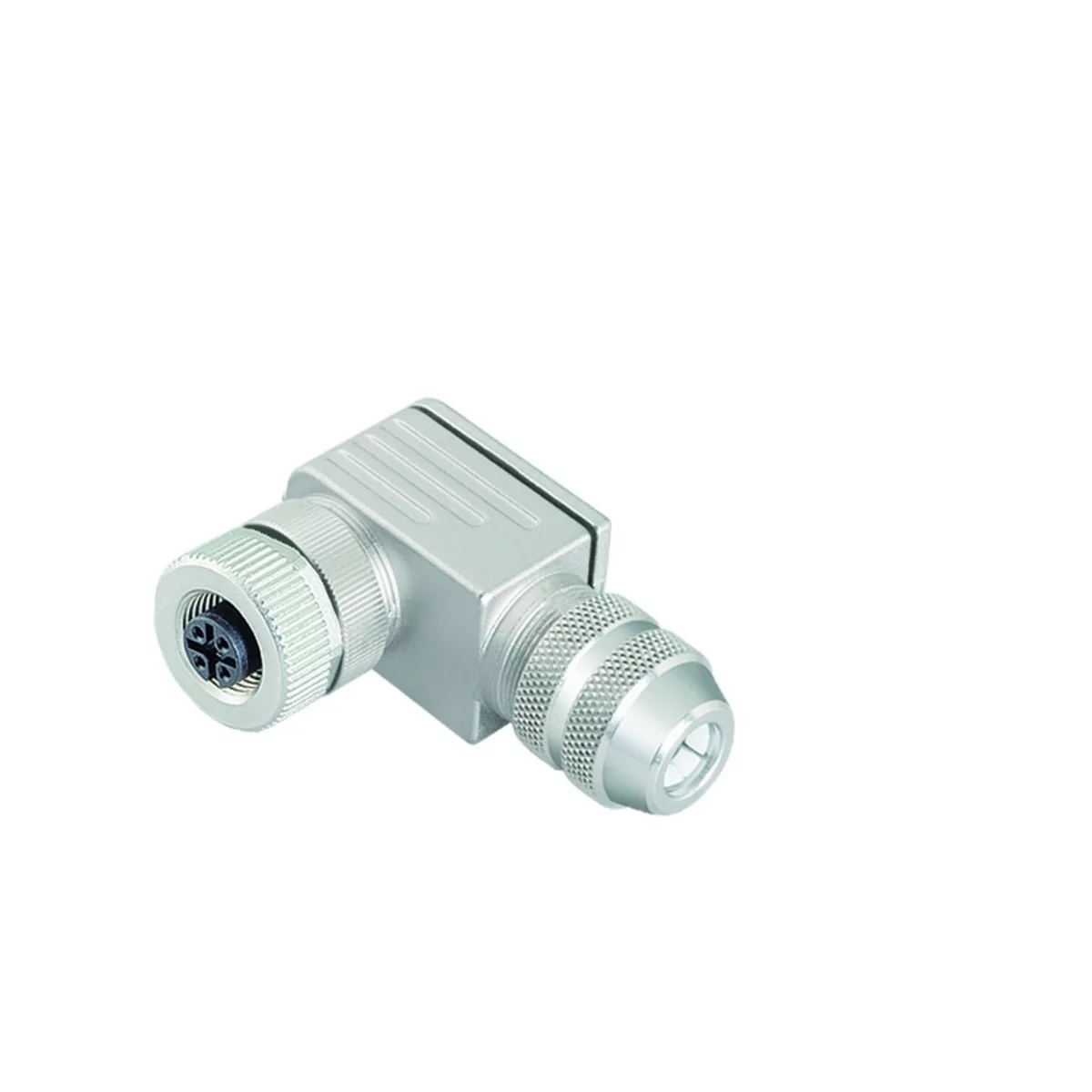

Female angled connector
Shieldable, with wire clamp connection, version with shielding ring
99 1526 824 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Wire clamp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 20 mm |
| Cable outlet | 4-6 mm |
| Wire-section | 0.5 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | PBT, zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Cable outlet |
|---|---|---|---|---|---|
| 99 1526 822 04 | 4 | 250 V | 2500 V | >200 - ≤400 V | 6-8 mm |
| 99 1538 824 05 | 5 | 125 V | 1500 V | ≤200 V | 4-6 mm |
| 99 1538 822 05 | 5 | 125 V | 1500 V | ≤200 V | 6-8 mm |
