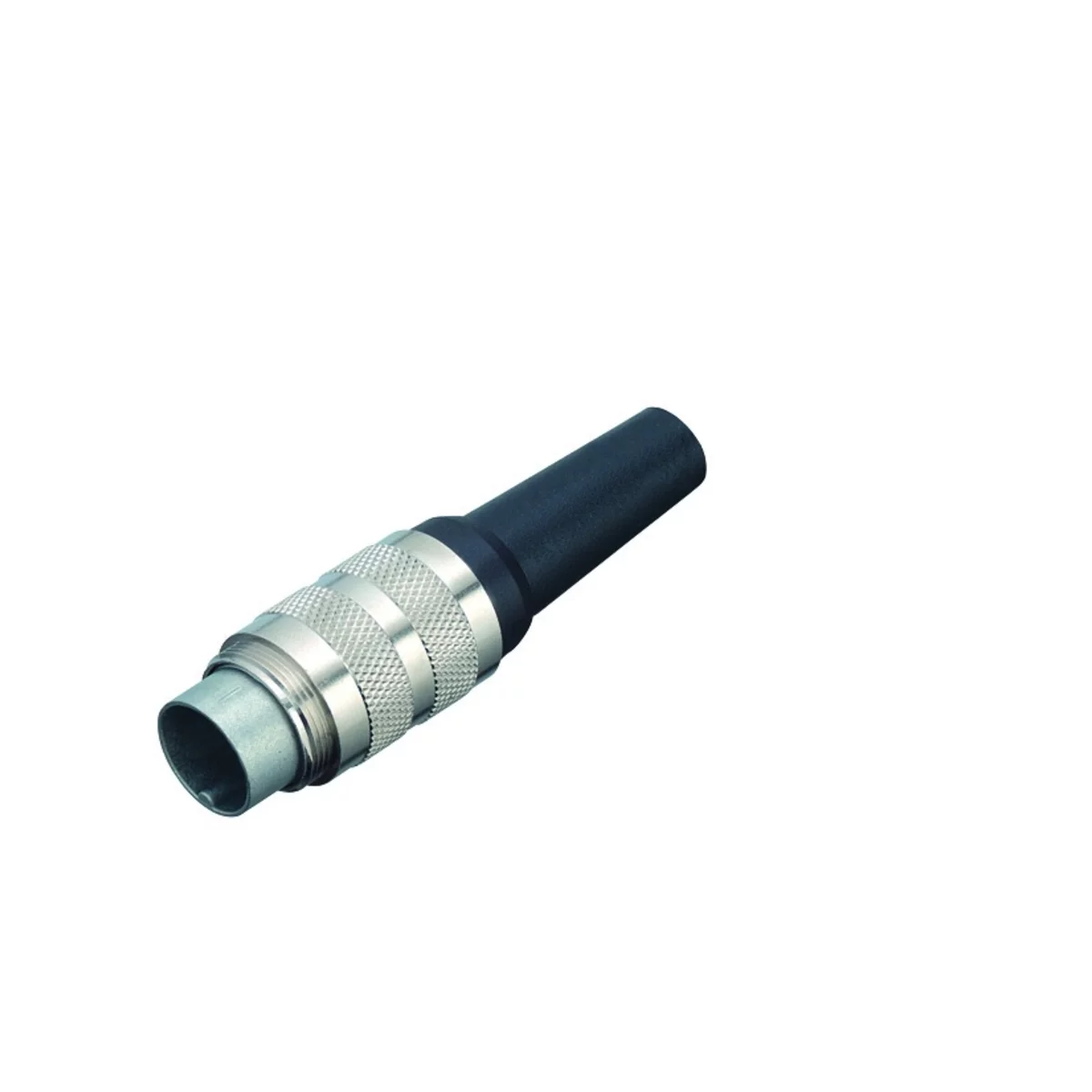

Male cable connector
With cable clamp, crimp connection, shieldable
99 2021 700 06
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 581 |
| Gender | Male |
| Number of contacts | 6 |
| Contact terminal | Crimp |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP40 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 18.5 mm |
| Cable outlet | 4-6 mm |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 5 A |
|---|---|
| Nominal voltage | 250 (32) V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 99 2009 700 04 | >5 - ≤10 A | 4 | 250 (32) V | 1500 V | >200 - ≤400 V |
| 99 2013 700 05 | >5 - ≤10 A | 5 | 250 (32) V | 1500 V | >200 - ≤400 V |
| 99 2025 700 07 | ≤5 A | 7 | 125 (32) V | 800 V | ≤200 V |
| 99 2061 700 08 | ≤5 A | 8 | 60 (32) V | 500 V | ≤200 V |
