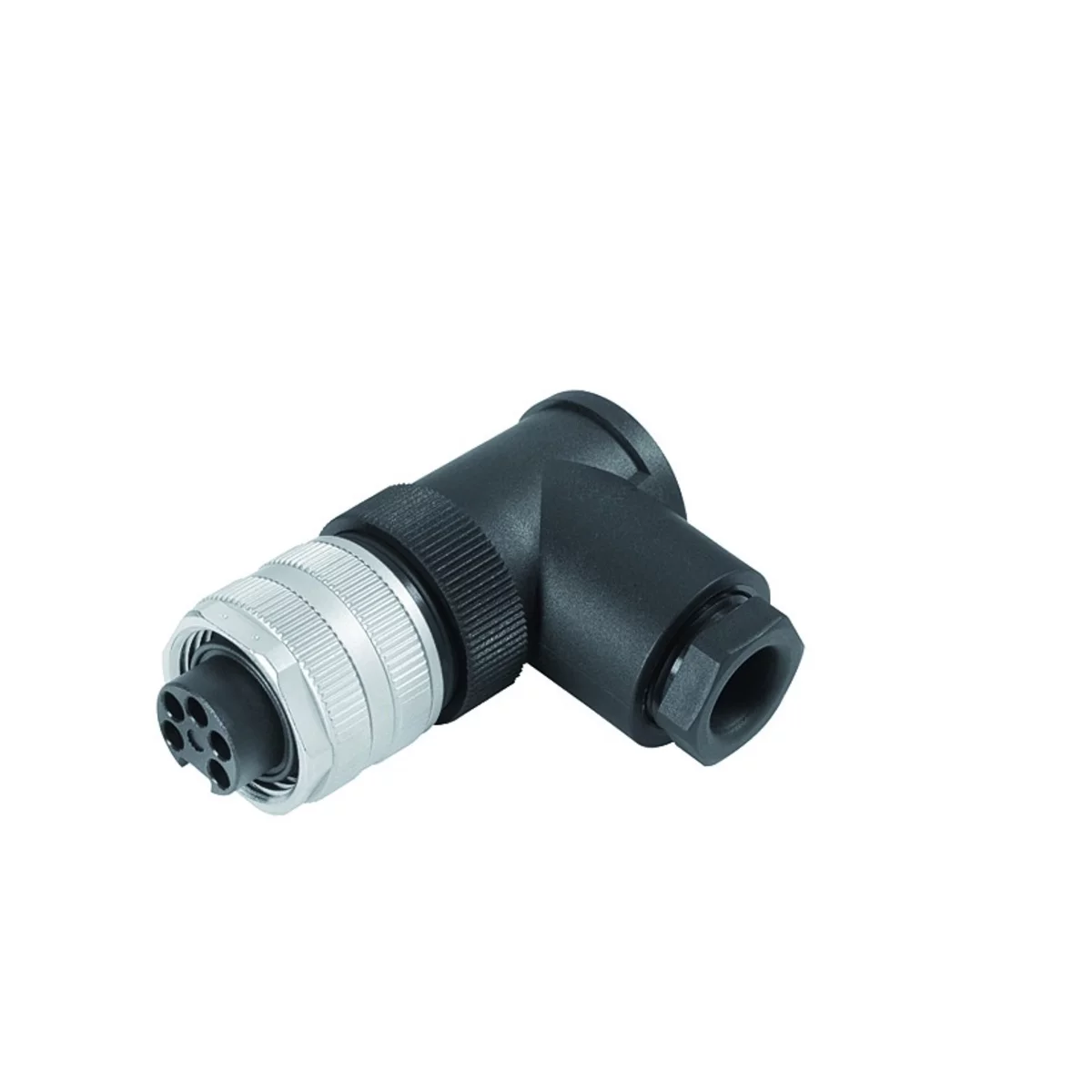

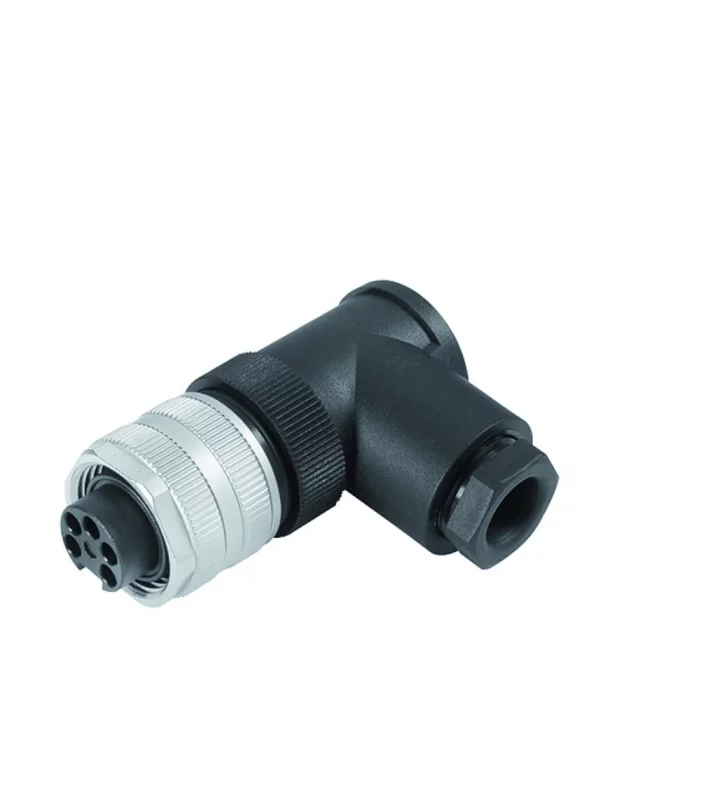

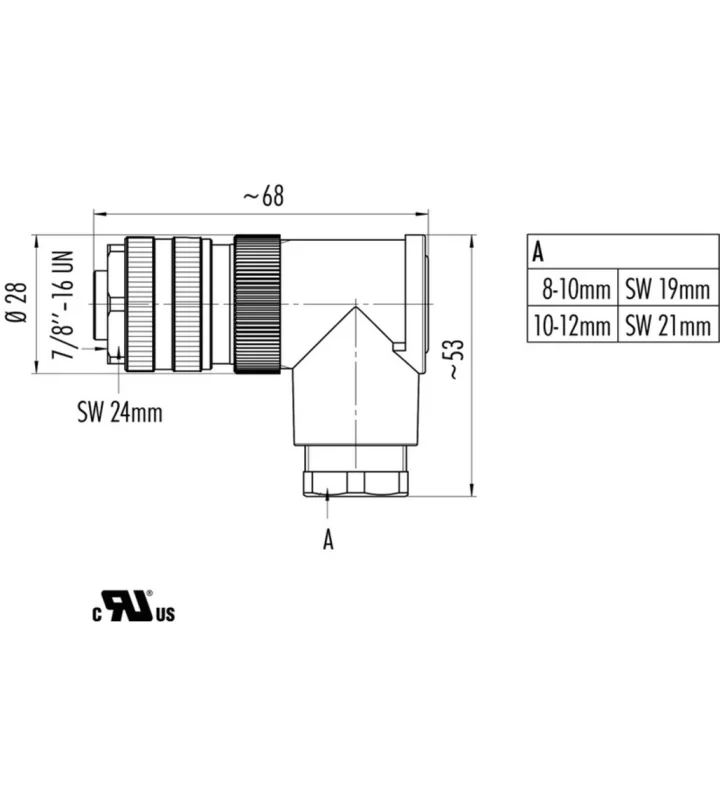

Female angled connector
UL-approval
99 2440 72 03
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | 7/8 |
|---|---|
| Series | Sensor |
| Subseries | 820 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (7/8"-16 UN) |
| Mating cycles | >50 |
| Connector Diameter | 28 mm |
| Cable outlet | 10-12 mm |
| Wire-section | 1.5 mm² |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 300 (UL 600) V |
| Impuls voltage | 4000 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PUR/PA (UL 94 HB) |
| Material of housing | PBT (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Cable outlet | Wire-section |
|---|---|---|---|---|
| 99 2440 62 03 | >10 - ≤20 A | 3 | 8-10 mm | 1.5 mm² |
| 99 2442 62 04 | >5 - ≤10 A | 4 | 8-10 mm | 1.5 mm² |
| 99 2442 72 04 | >5 - ≤10 A | 4 | 10-12 mm | 1.5 mm² |
| 99 2444 62 05 | >5 - ≤10 A | 5 | 8-10 mm | 1.5 mm² |
| 99 2444 72 05 | >5 - ≤10 A | 5 | 10-12 mm | 1.5 mm² |
| 99 2444 63 05 | >5 - ≤10 A | 5 | 8-10 mm | 2.5 mm² |
| 99 2444 73 05 | >5 - ≤10 A | 5 | 10-12 mm | 2.5 mm² |
