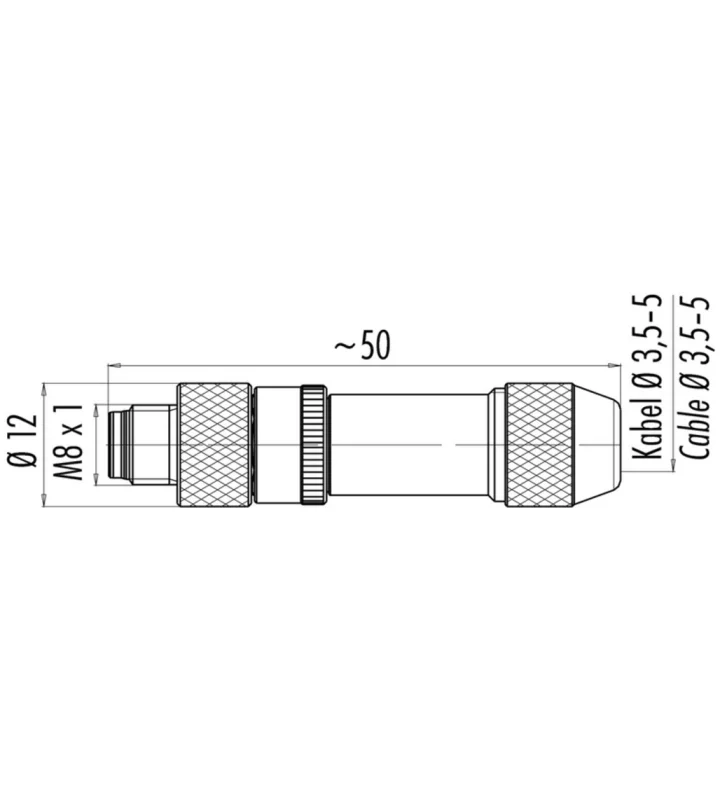

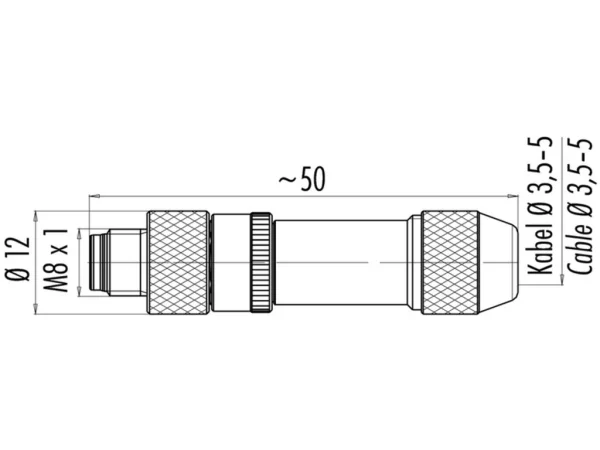

Male cable connector
Shieldable, solder
99 3363 00 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 768 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Connector Diameter | 12 mm |
| Cable outlet | 3,5-5 mm |
| Wire gauge | 24 AWG |
| Wire-section | 0.25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Cable outlet |
|---|---|---|---|
| 99 3361 00 03 | 3 | 60 V | 3,5-5 mm |
| 99 3361 25 03 | 3 | 60 V | 2-3,5 mm |
| 99 3363 25 04 | 4 | 30 V | 2-3,5 mm |
