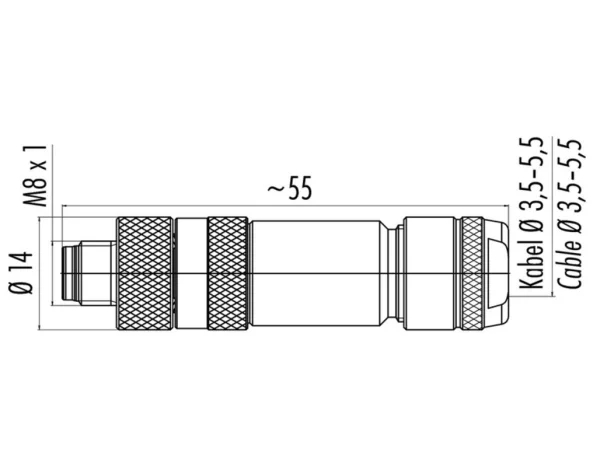

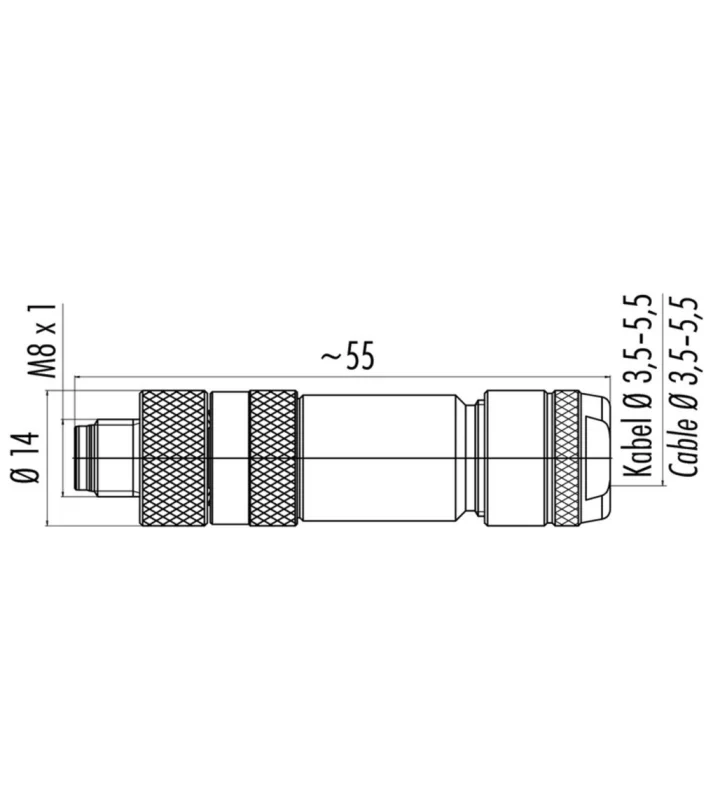

Male cable connector
Shieldable, screw clamp connection
99 3363 100 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 768 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Screw |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
| Connector Diameter | 14 mm |
| Cable outlet | 3,5-5,5 mm |
| Wire-section | 0,14 - 0,5 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage |
|---|---|---|
| 99 3361 100 03 | 3 | 60 V |
