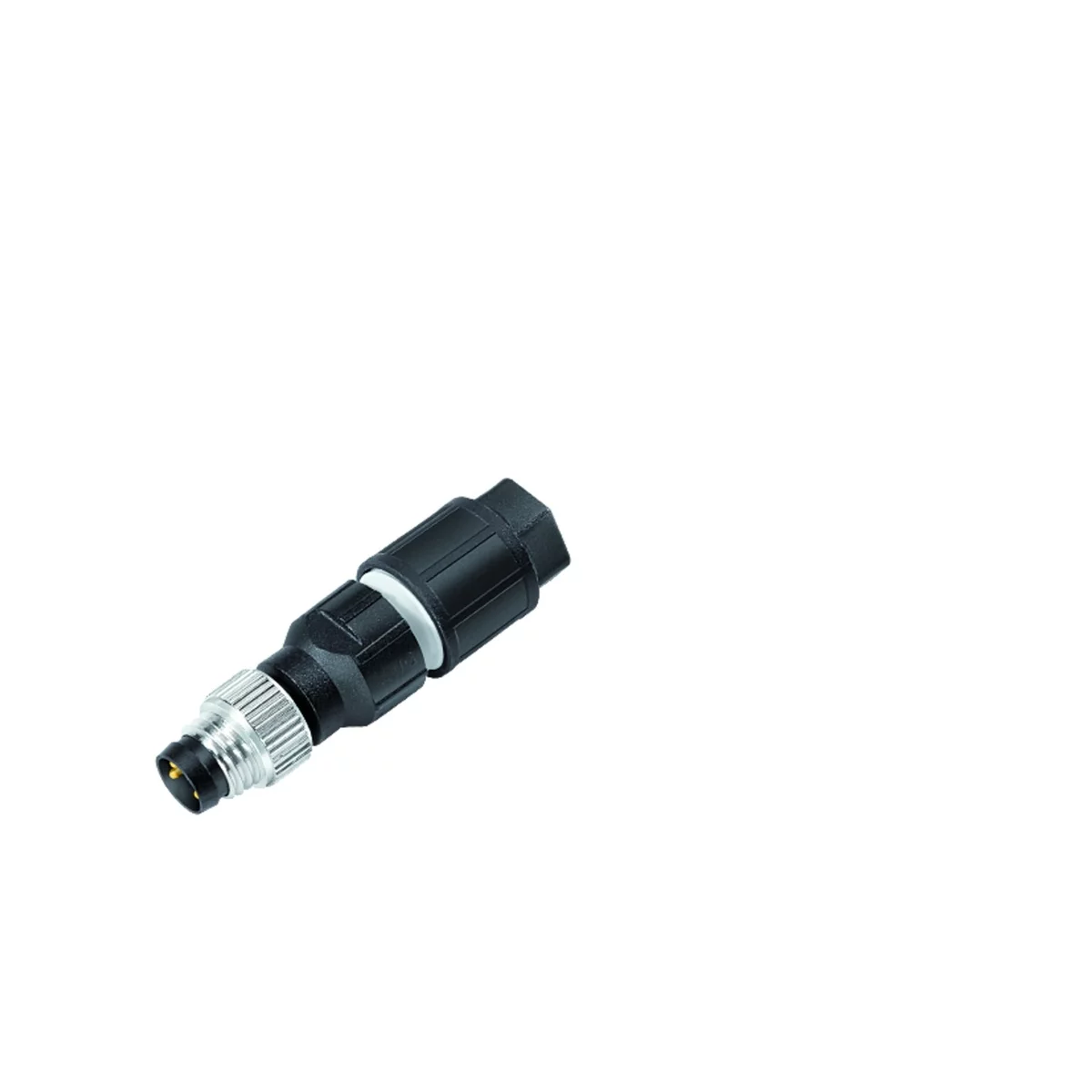

Male cable connector
IDT
99 3379 500 03
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 768 |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Cutting clamping |
| Upper temperature | +85 °C |
| Lower temperature | -25 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Connector Diameter | 10 mm |
| Cable outlet | 2,5-5,2 mm |
| Wire gauge | 28-24 AWG |
| Wire-section | 0,08-0,25 mm² |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | TPU |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Wire gauge | Wire-section |
|---|---|---|---|
| 99 3379 550 03 | 3 | 24-20 AWG | 0,25-0,5 mm² |
| 99 3383 500 04 | 4 | 28-24 AWG | 0,08-0,25 mm² |
| 99 3383 550 04 | 4 | 24-20 AWG | 0,25-0,5 mm² |
