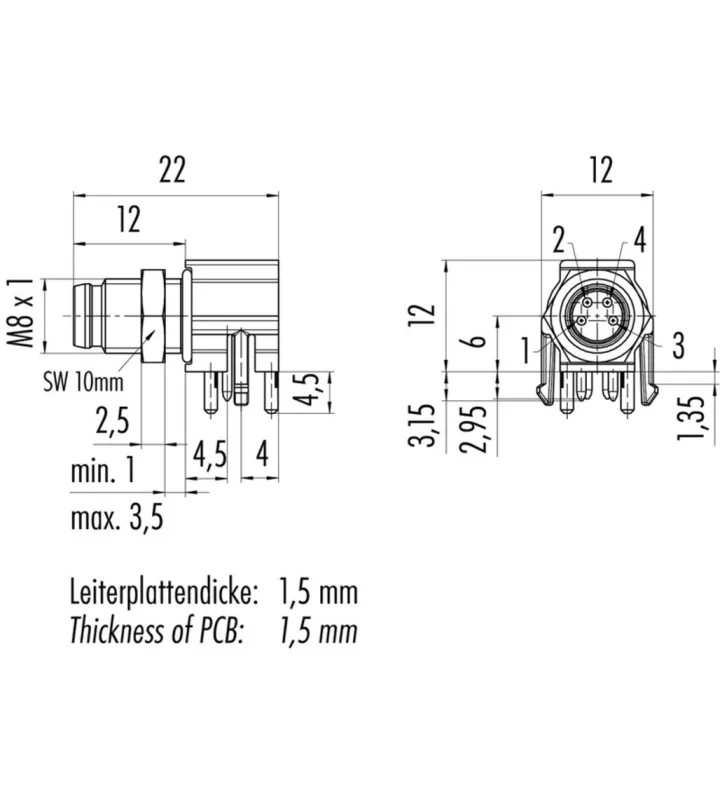

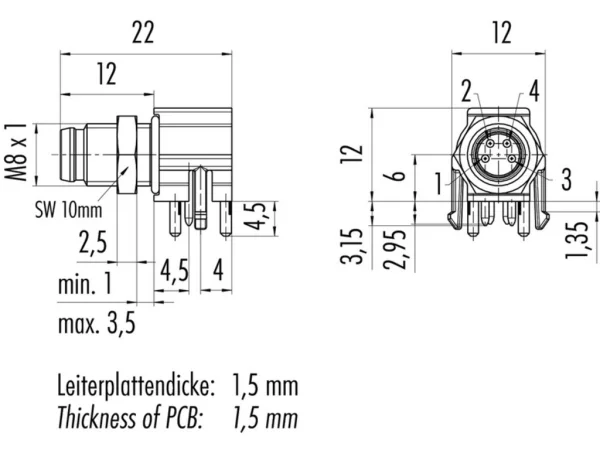

Male angled panel mount connector
99 3391 282 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 768-718 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw, snap-in |
| Mating cycles | >100 |
| Connector Diameter | 12.6 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 30 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | Zinc diecasting nickel plated, PA |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage |
|---|---|---|
| 99 3403 282 03 | 3 | 60 V |
