Female panel mount connector

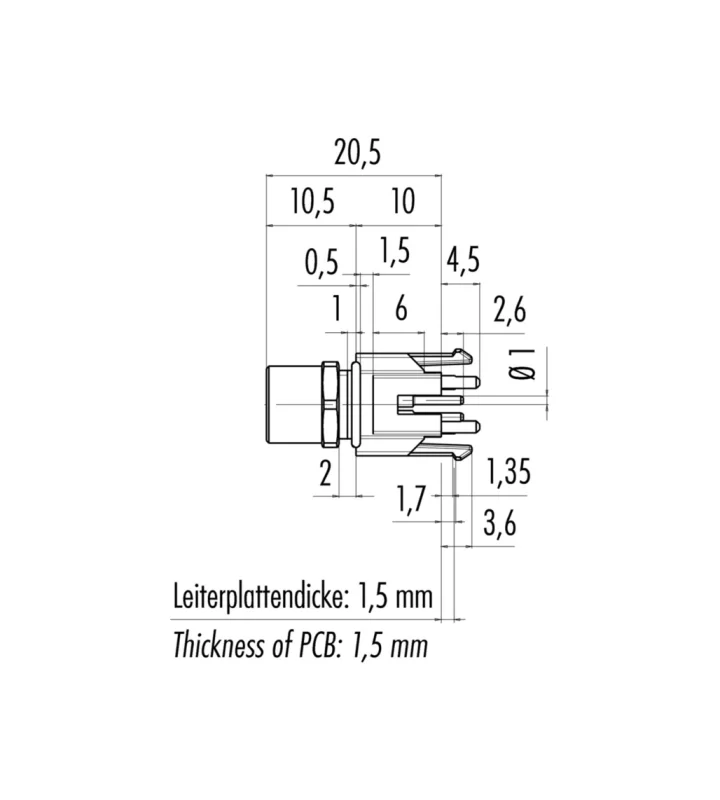

Straight, dip solder, 10 mm
UL-approval
99 3412 280 03
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M8 |
|---|---|
| Series | Sensor |
| Subseries | 768-718 |
| Gender | Female |
| Number of contacts | 3 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M8) |
| Mating cycles | >100 |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 HB) |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage |
|---|---|---|
| 99 3390 280 04 | 4 | 30 V |
