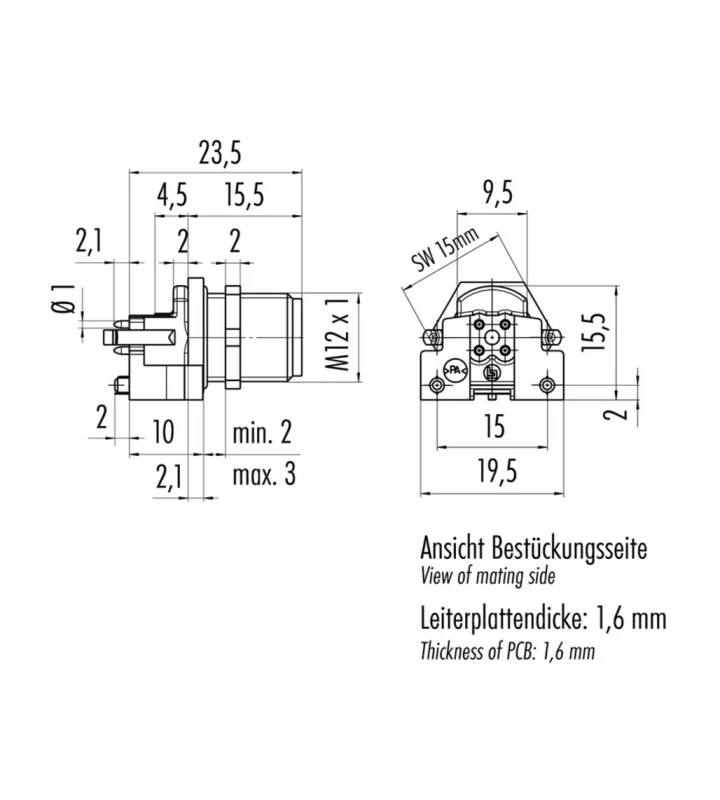

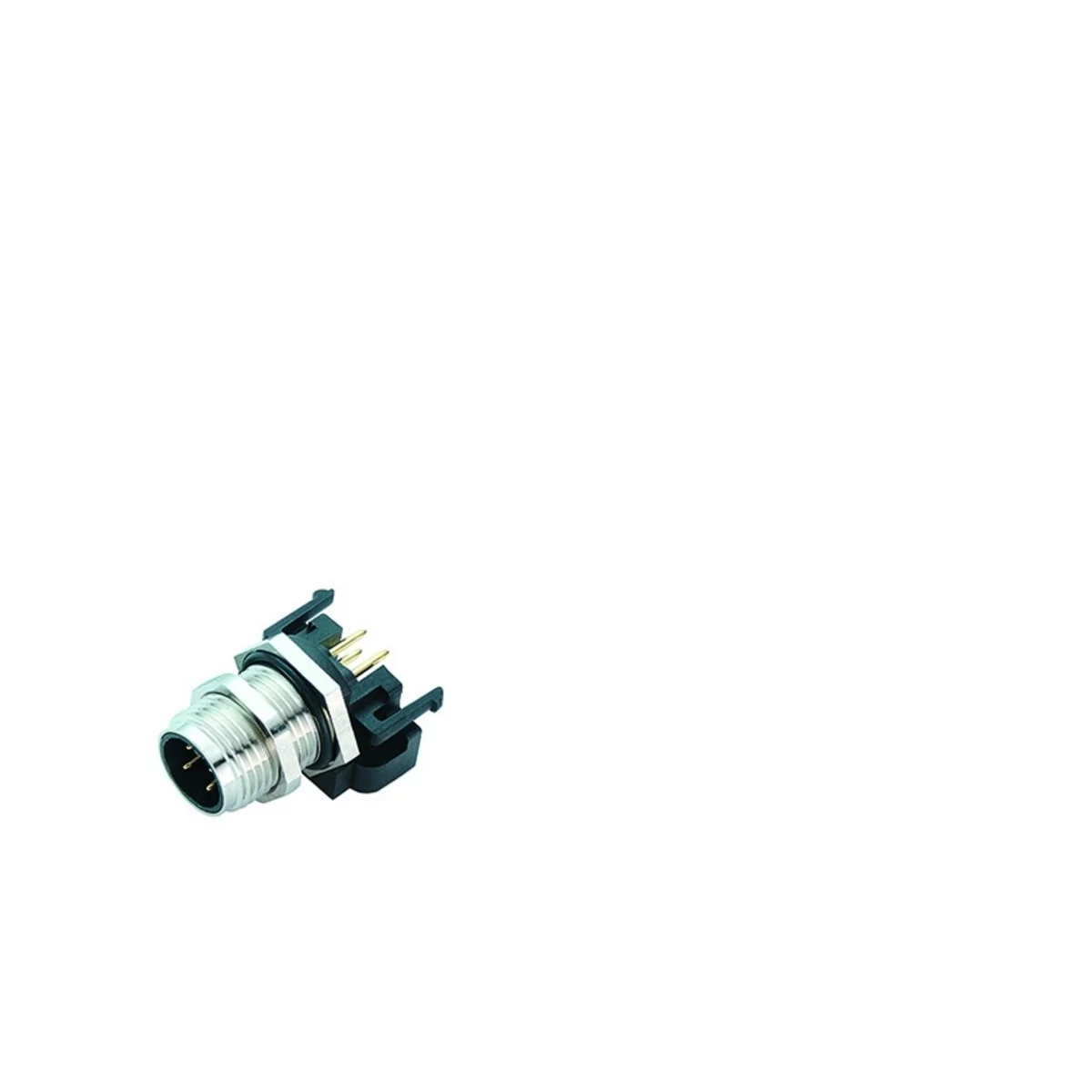

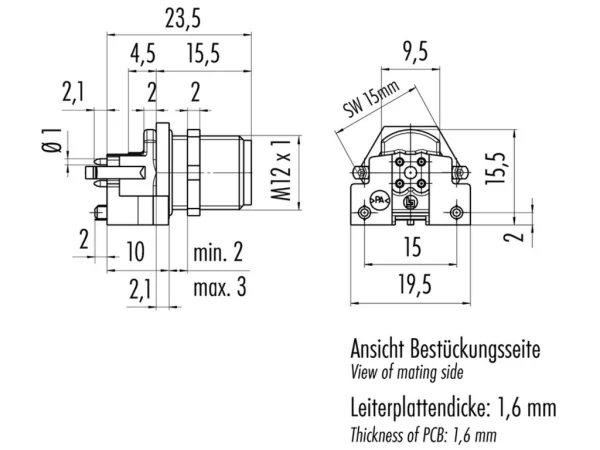

Male receptacle
for PCB assembly, straight
UL-approval
99 3441 200 05
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 5 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 19.5 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 125 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|
| 99 3431 200 04 | 4 | 250 V | 2500 V | >200 - ≤400 V |
| 99 3431 458 04 | 4 | 250 V | 2500 V | >200 - ≤400 V |
| 99 3441 458 05 | 5 | 125 V | 1500 V | ≤200 V |
| 99 3481 200 08 | 8 | 60 V | 800 V | ≤200 V |
| 99 3481 458 08 | 8 | 60 V | 800 V | ≤200 V |
