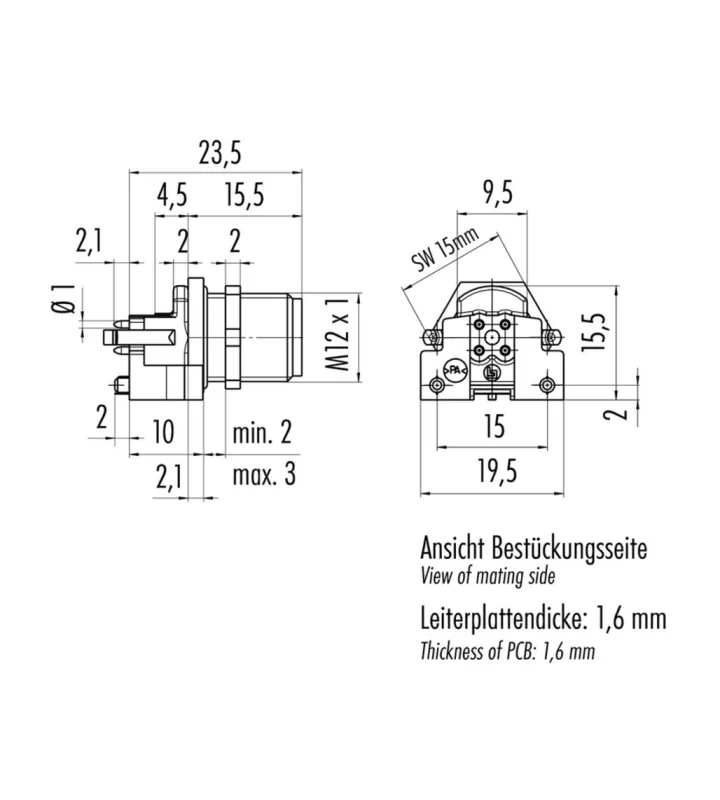

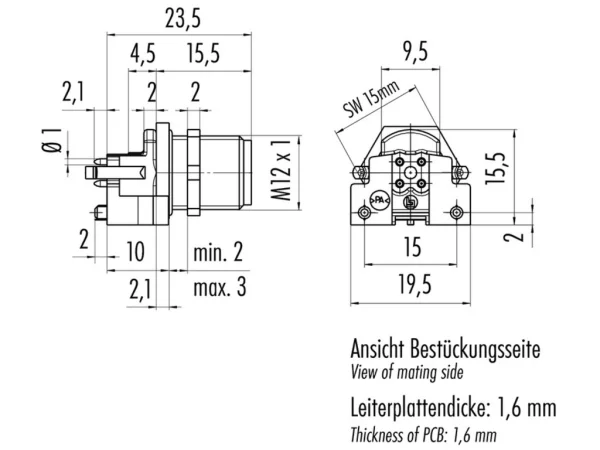

Male receptacle
for PCB assembly, straight
With shielding sheet, UL approval
99 3481 458 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-A |
|---|---|
| Series | Sensor |
| Subseries | 713-763 |
| Gender | Male |
| Number of contacts | 8 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68 |
| Locking system | Screw (M12-A) |
| Mating cycles | >100 |
| Connector Diameter | 19.5 mm |
Electrical parameters
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 60 V |
| Impuls voltage | 800 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|
| 99 3431 200 04 | 4 | 250 V | 2500 V | >200 - ≤400 V |
| 99 3431 458 04 | 4 | 250 V | 2500 V | >200 - ≤400 V |
| 99 3441 200 05 | 5 | 125 V | 1500 V | ≤200 V |
| 99 3441 458 05 | 5 | 125 V | 1500 V | ≤200 V |
| 99 3481 200 08 | 8 | 60 V | 800 V | ≤200 V |
