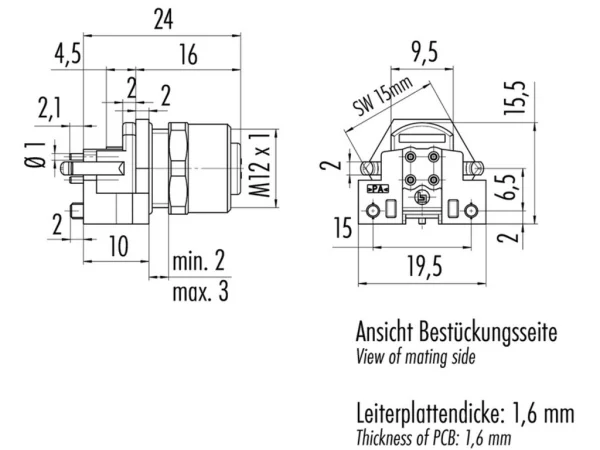

Female receptacle
for PCB assembly, straight
UL-approval
99 3732 201 04
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-D |
|---|---|
| Series | Sensor |
| Subseries | 825-876 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-D) |
| Mating cycles | >100 |
| Connector Diameter | 19.5 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | CuZn (Brass nickel plated) |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number |
|---|
| 99 3732 200 04 |
