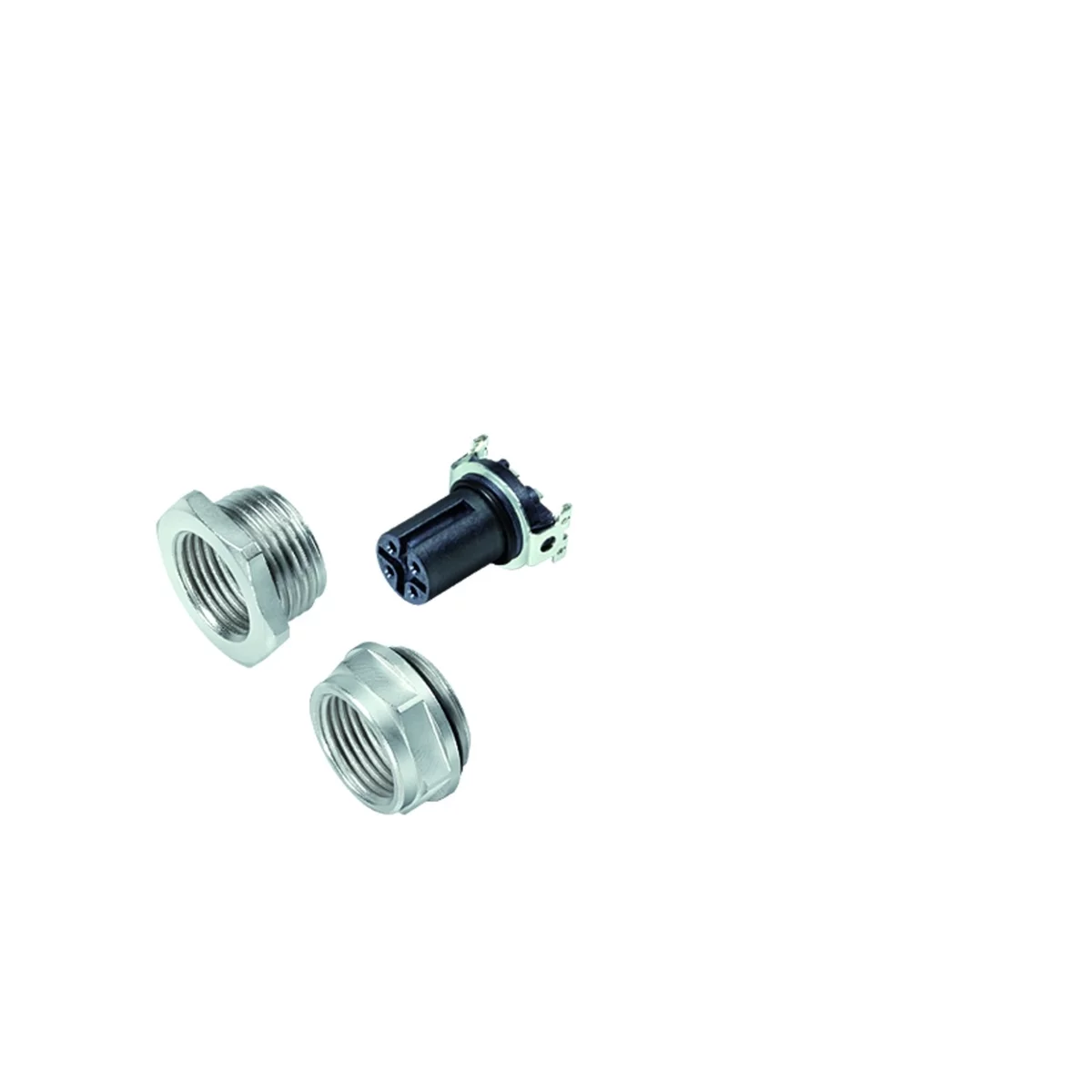

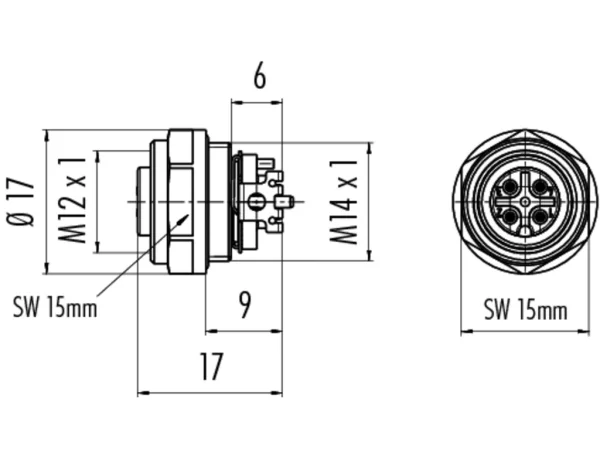

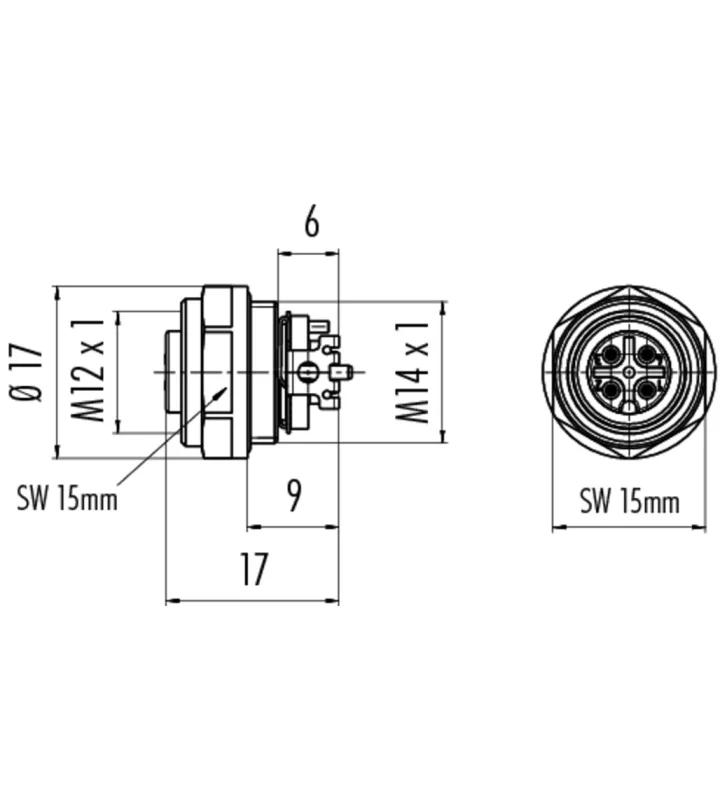

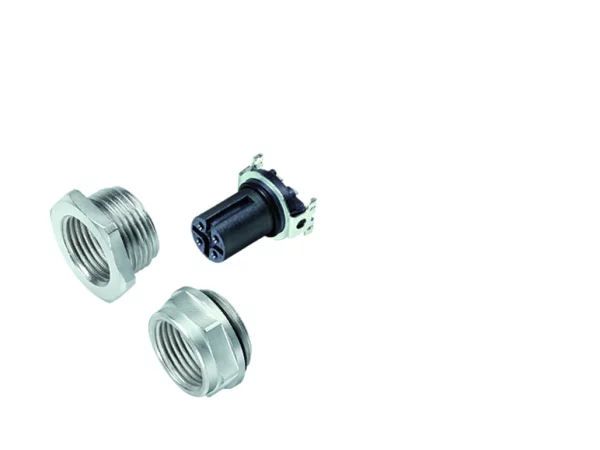

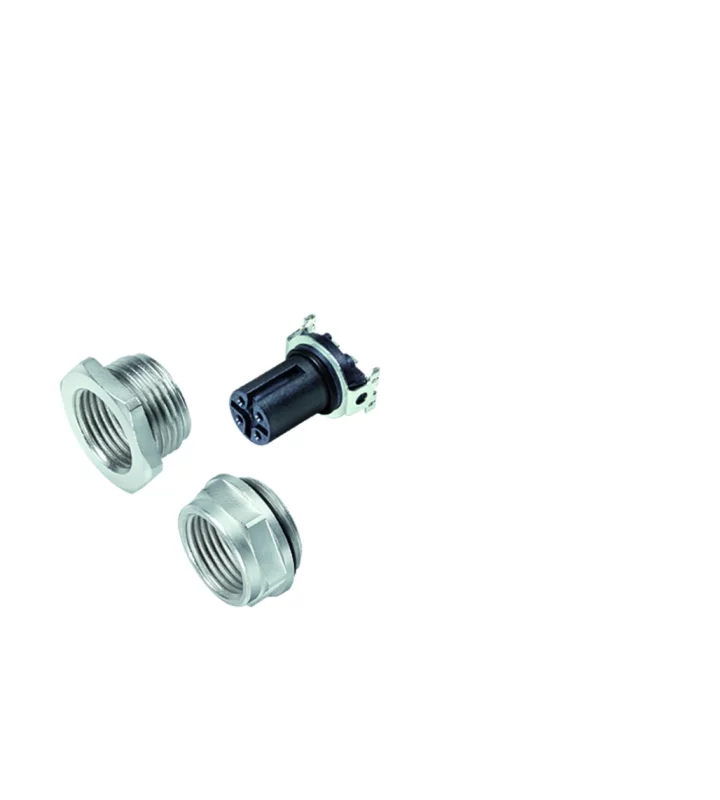

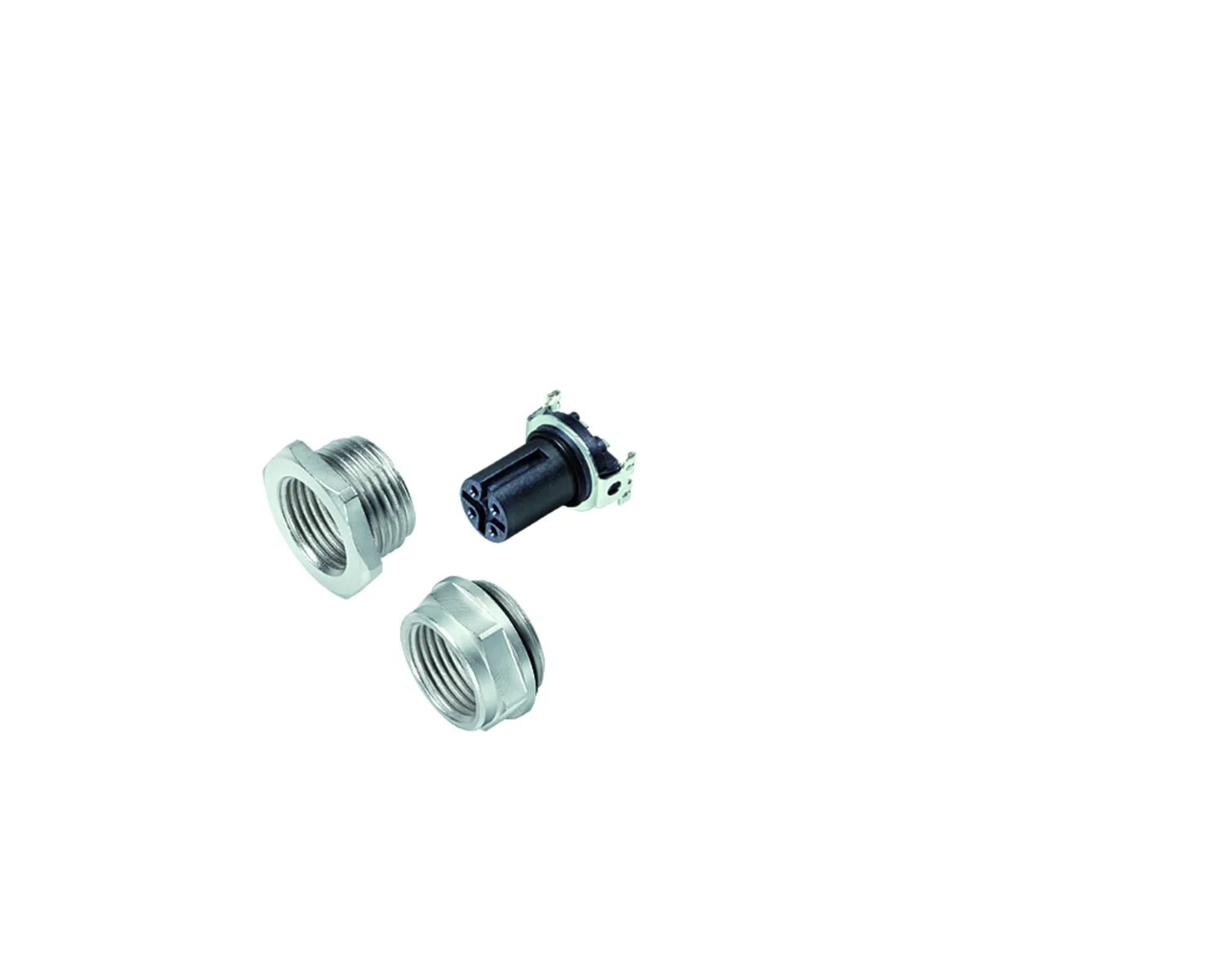

Female panel mount connector
SMT, with housing
Shieldable
99 3732 401 04
Specificaties
General Characteristics
| Screw size | M12-D |
|---|---|
| Series | Sensor |
| Subseries | 825-876 |
| Gender | Female |
| Number of contacts | 4 |
| Contact terminal | SMT |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Locking system | Screw (M12-D) |
| Connector Diameter | 19 mm |
| Mounting height | 9 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
Material
| Material of insert | LCP |
|---|---|
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
Varianten
| Art. number | Mounting height |
|---|---|
| 99 3732 402 04 | 13 mm |
