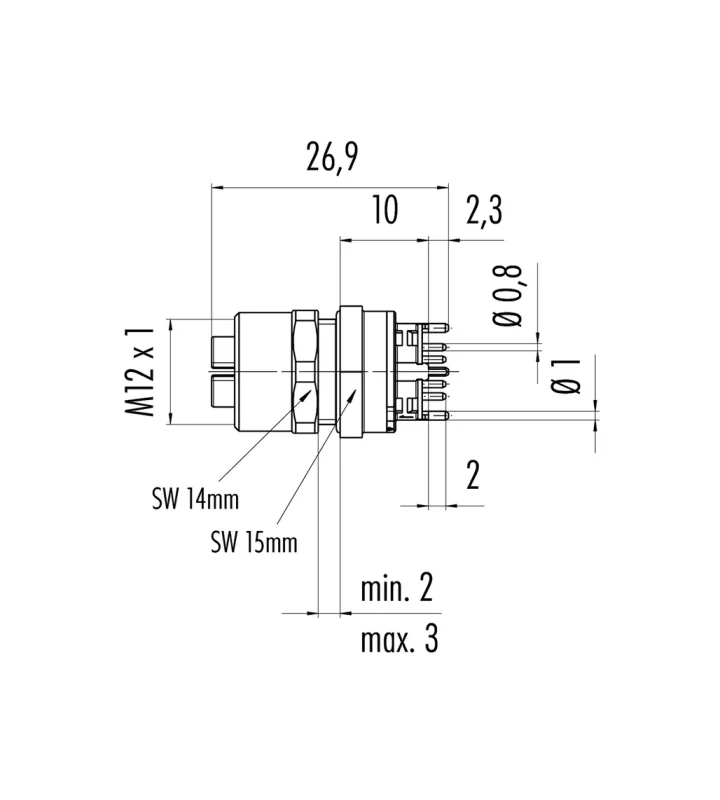

Female panel mount connector
dip solder, contact carrier fix
99 3782 210 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M12-X |
|---|---|
| Series | Sensor |
| Subseries | 825-876 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-X) |
| Mating cycles | >100 |
| Cable outlet | 6-8 mm |
Electrical parameters
| Nominal current | 0.5 A |
|---|---|
| Nominal voltage | 50 AC, 60 DC |
| Max. contact resistance | 10 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PA |
| Material of housing | Zinc diecasting nickel plated |
| Material of contact | CuSn (Bronze) |
| Plating | Au (Gold) |
