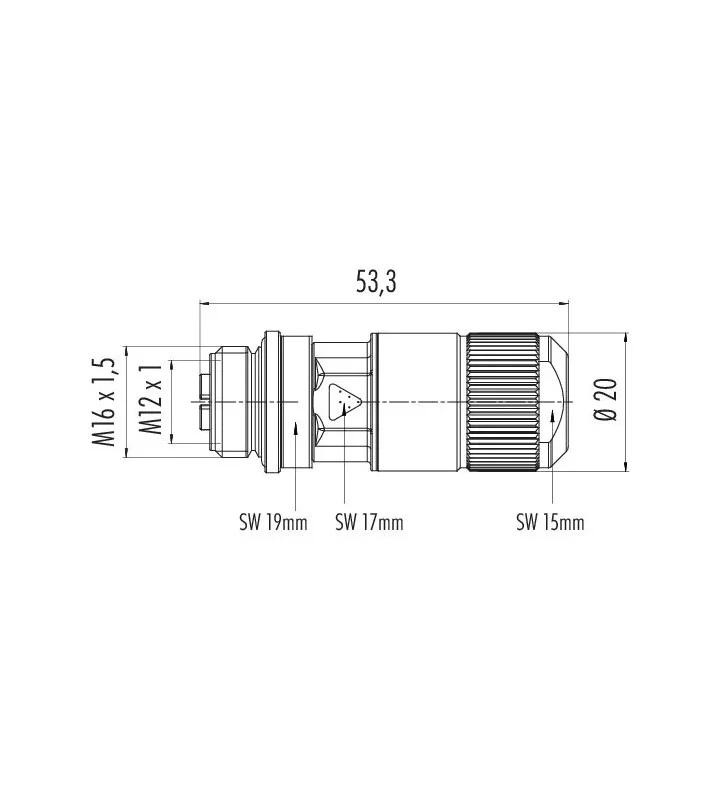

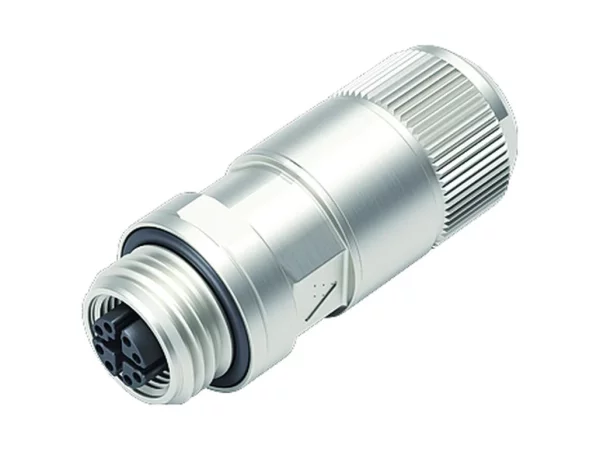

M12 Female cable connector
Shieldable
99 3788 810 08
Specificaties
General Characteristics
| Series | Sensor |
|---|---|
| Subseries | 825 |
| Gender | Female |
| Number of contacts | 8 |
| Contact terminal | IDC |
| Upper temperature | 85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw |
| Mating cycles | >100 |
| Connector Diameter | 20 mm |
| Cable outlet | 5.5-9 mm |
| Wire gauge | 27-22 AWG |
Electrical parameters
| Nominal current | 0.5 A |
|---|---|
| Nominal voltage | 50 AC, 60 DC |
| Impuls voltage | 800 V |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA |
| Material of housing | Brass nickel-plated / Zinc die-cast nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
