Female cable connector
Cable outlet 7-17 mm
99 4202 300 07
Specificaties
General Characteristics
| Series | Power |
|---|---|
| Subseries | 825-876 |
| Gender | Female |
| Number of contacts | 7 |
| Contact terminal | Crimp |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Bolted |
| Mating cycles | >50 |

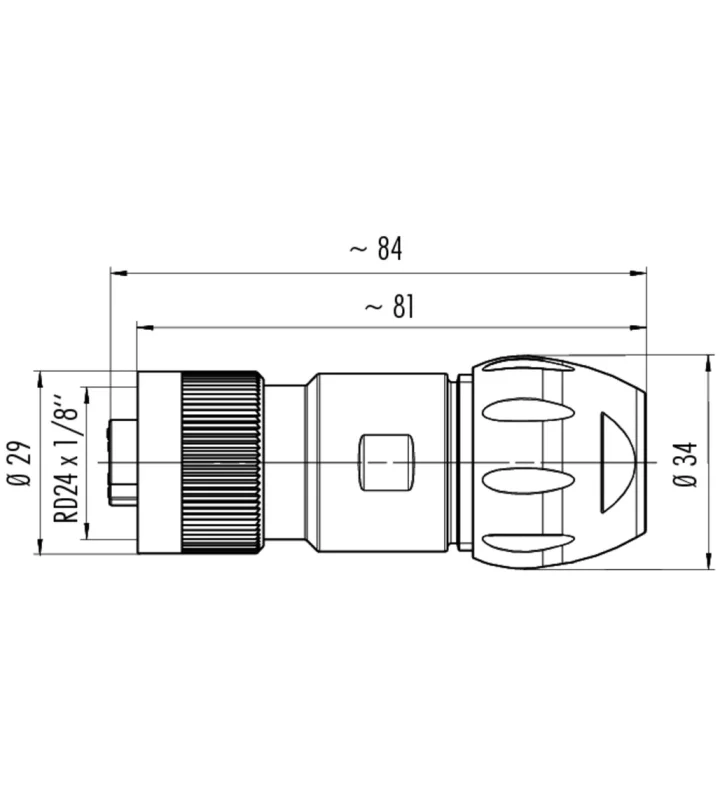

| Connector Diameter | 29 mm |
| Cable outlet | 7-17 mm |
| Wire gauge | 26-16 AWG |
| Wire-section | 0,14-1,5 mm² |
Electrical parameters
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 4000 V |
| Max. contact resistance | ≤ 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PBT |
| Material of housing | PBT |
| Material of contact | CuSn (Bronze) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|---|
| 99 4222 300 04 | >10 - ≤20 A | 4 | 400 V | Screw clamp | 6000 V | 20-14 AWG | 0,5-2,5 mm² |
| 99 4226 300 07 | >5 - ≤10 A | 7 | 250 V | Solder | 4000 V | max. 20 | max. 0,75 |
| 99 4218 300 07 | >5 - ≤10 A | 7 | 250 V | Screw clamp | 4000 V | 22-16 AWG | 0,34-1,5 mm² |
