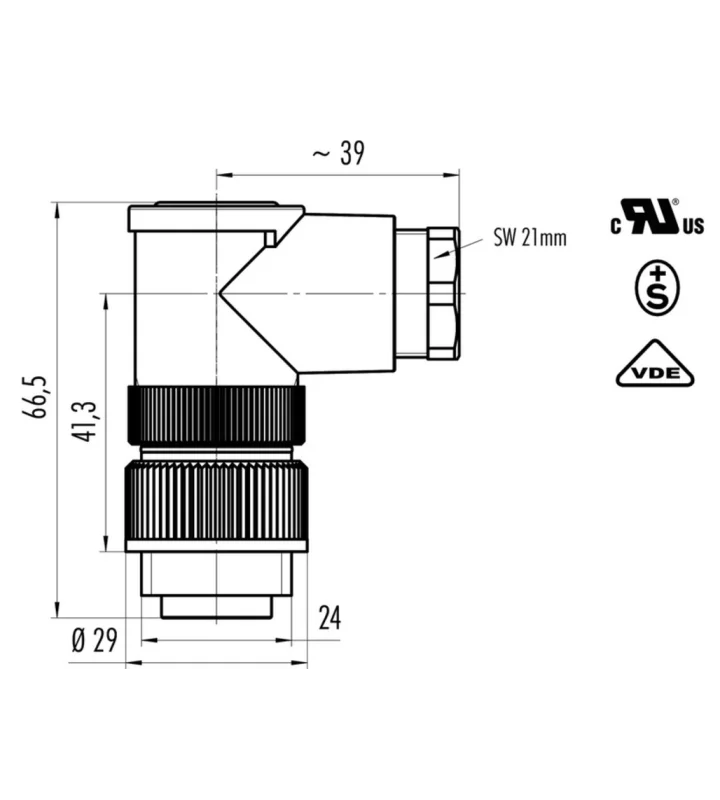

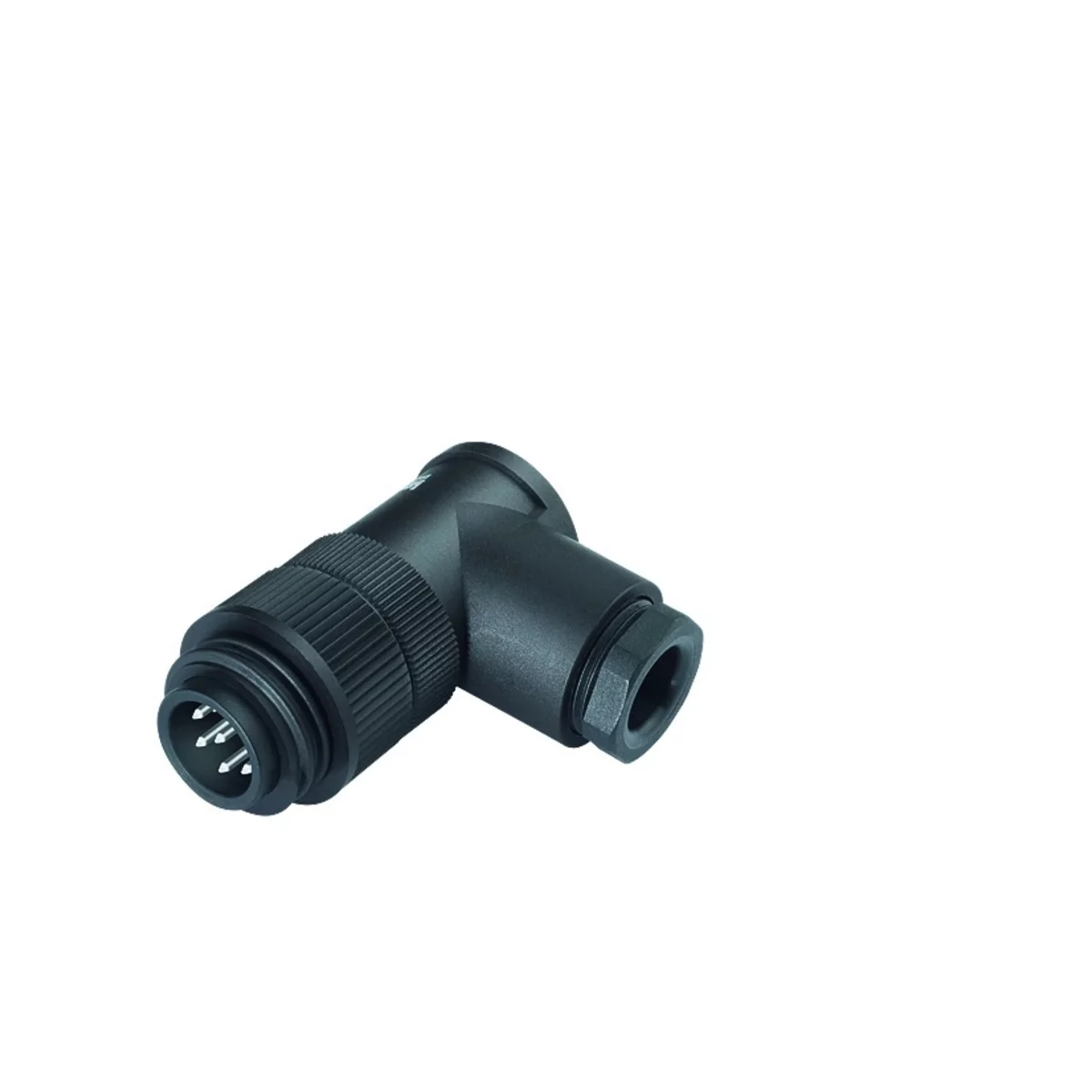

Male angled connector
PG13,5 / with VDE-, SEV-, UL-approval
99 4217 215 07
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | RD24 |
|---|---|
| Series | Power |
| Subseries | 692-693 |
| Gender | Male |
| Number of contacts | 7 |
| Contact terminal | Screw |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67* |
| Locking system | Screw (RD24) |
| Mating cycles | >500 |
| Connector Diameter | 29 mm |
| Cable outlet | 10-12 mm |
| Wire-section | 0,34 - 1,5 mm² |
| Remark* | *IP65 for cable-Ø 6-7 mm |
Electrical parameters
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 4000 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL94 V-0) |
| Material of housing | PBT (UL94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Ag (Silver) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Contact terminal | Impuls voltage | Wire-section |
|---|---|---|---|---|---|---|
| 99 4221 215 04 | >10 - ≤20 A | 4 | 400 V | Screw | 6000 V | 0,5 - 2,5 mm² |
| 99 4225 215 07 | >5 - ≤10 A | 7 | 250 V | Solder | 4000 V | 0.75 mm² |
| 99 4201 215 07 | >5 - ≤10 A | 7 | 250 V | Crimp | 4000 V | 0,14 - 1,5 mm² |
