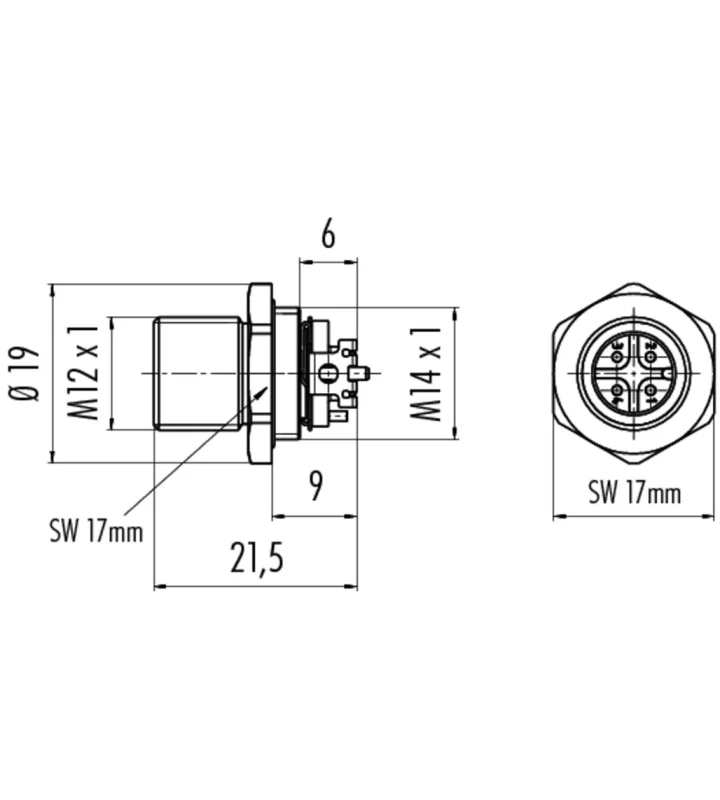

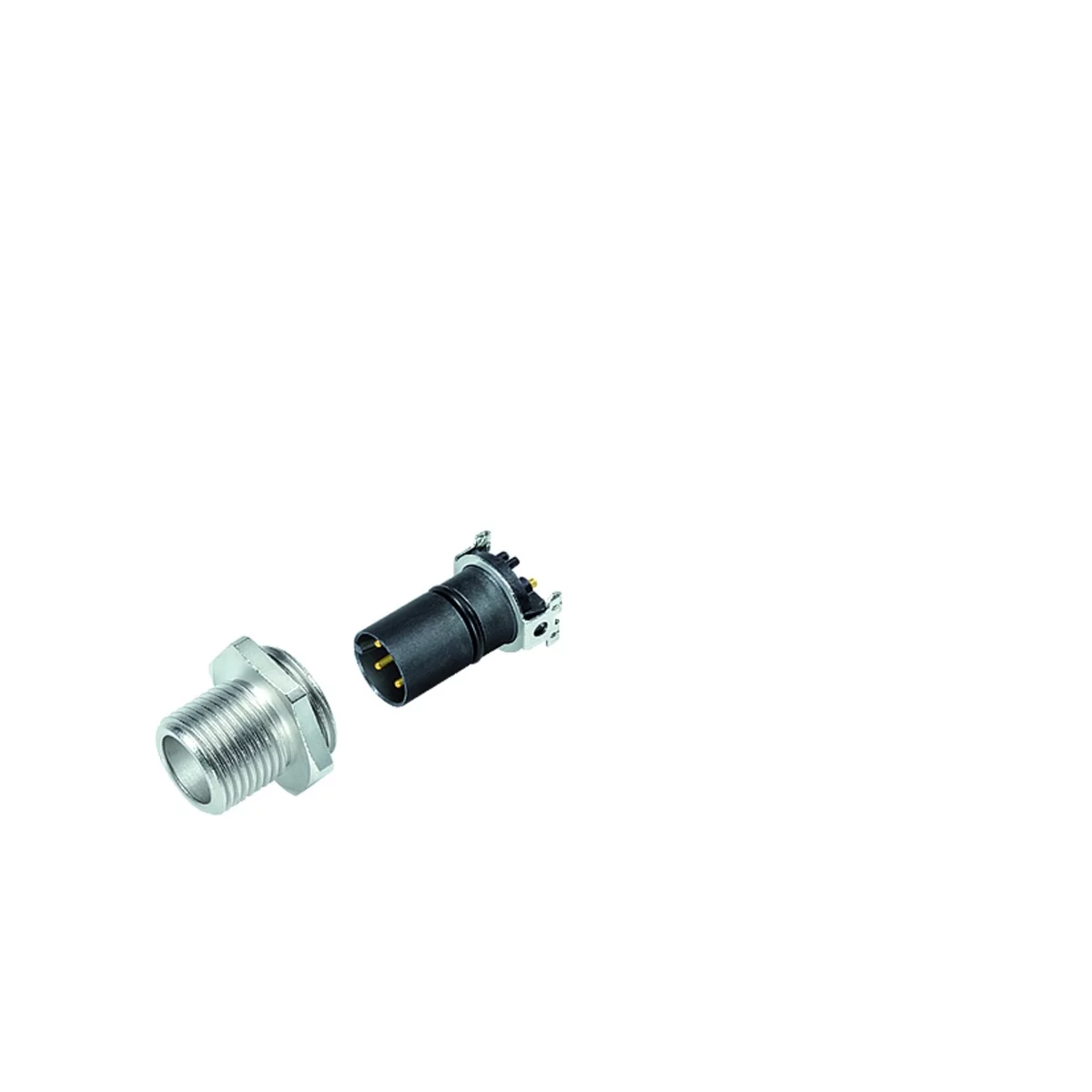

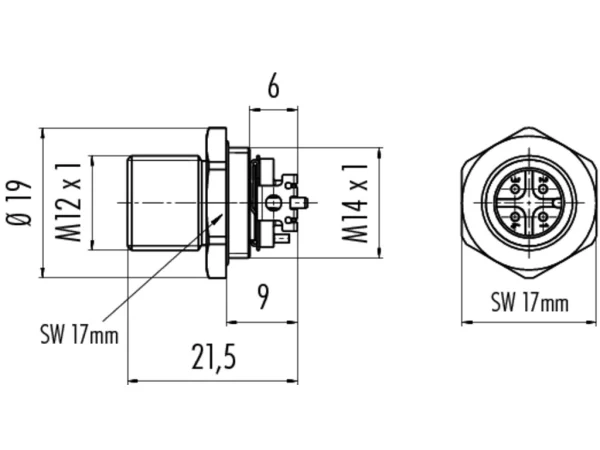

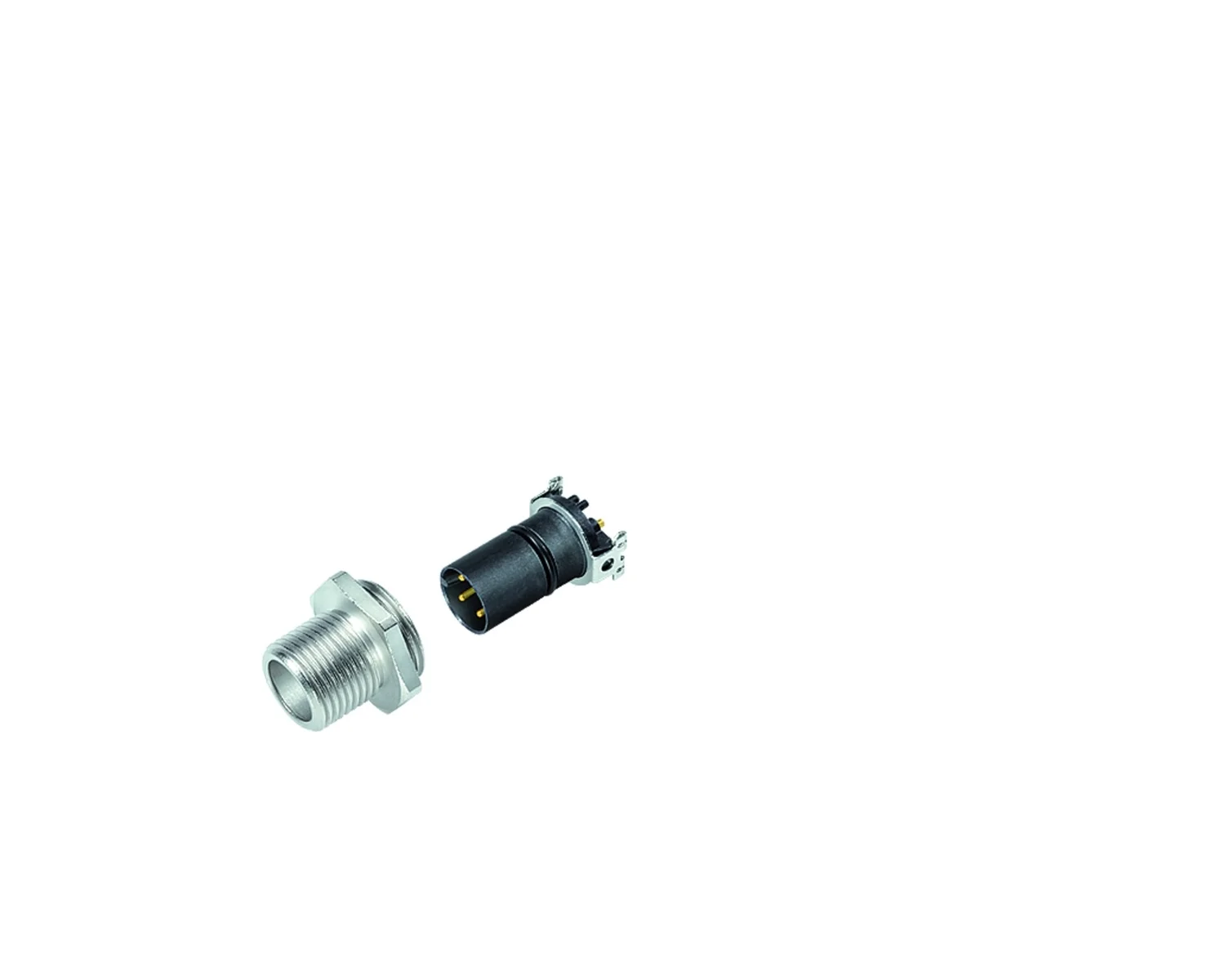

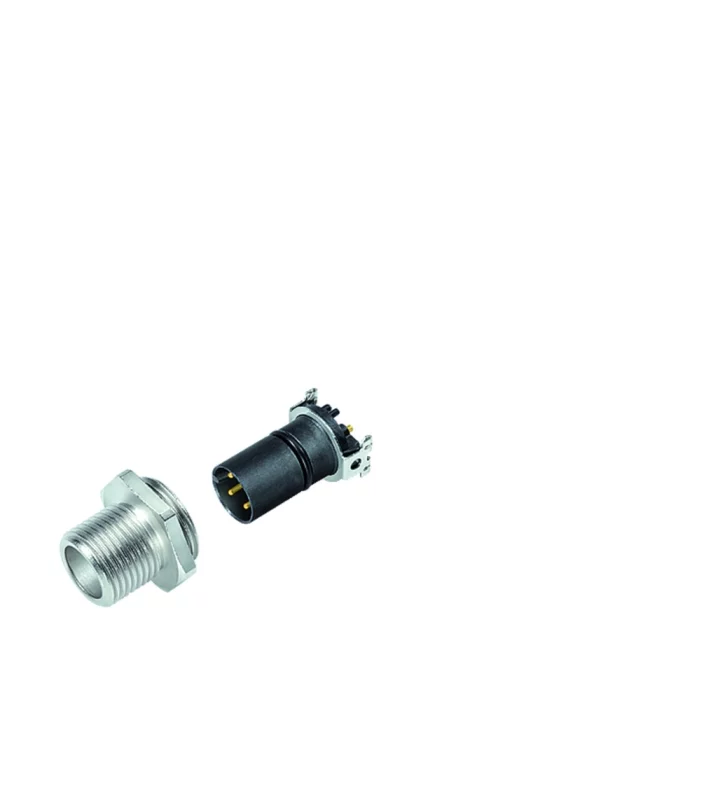

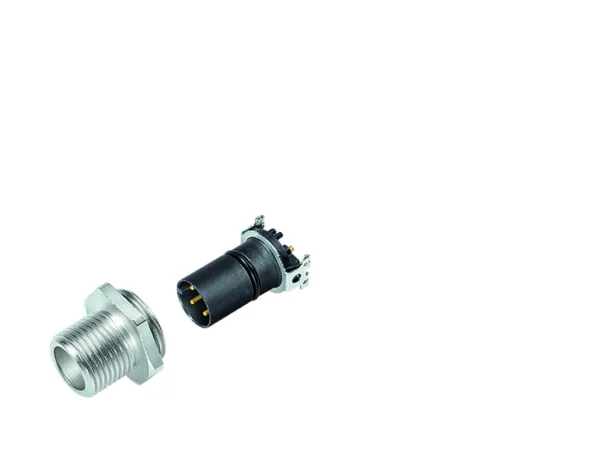

Male panel mount connector
SMT, with housing
Shieldable
99 4431 401 04
Specificaties
General Characteristics
| Screw size | M12-B |
|---|---|
| Series | Sensor |
| Subseries | 715-766 |
| Gender | Male |
| Number of contacts | 4 |
| Contact terminal | SMT |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M12-B) |
| Mating cycles | >100 |
| Connector Diameter | 20 mm |
Electrical parameters
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | III |
|---|---|
| Material of insert | LCP |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts |
|---|---|
| 99 4441 401 05 | 5 |
