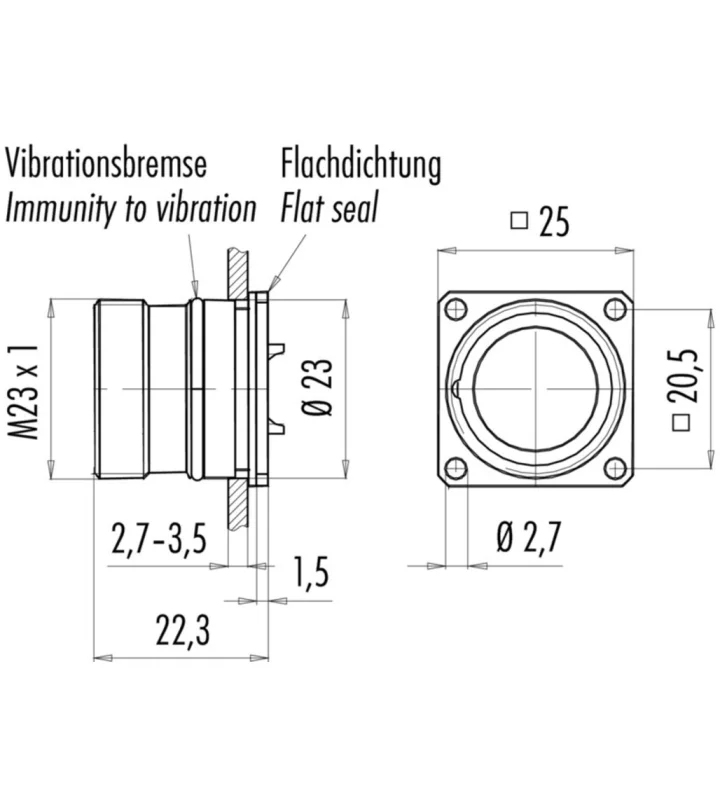

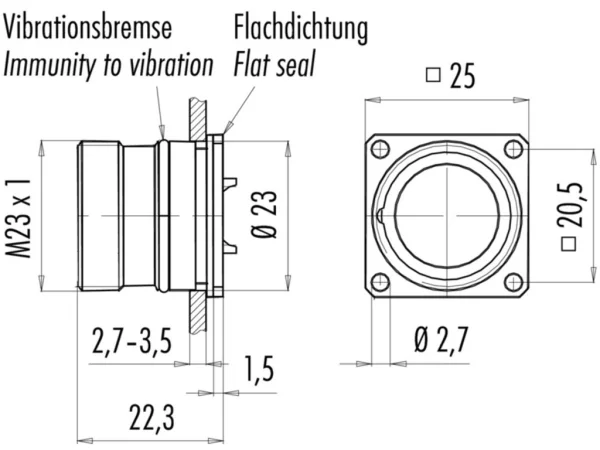

Male panel mount connector
Fastened from back side
99 4611 80 16
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M23 |
|---|---|
| Series | Power |
| Subseries | 623 |
| Gender | Male |
| Number of contacts | 16 |
| Contact terminal | Solder |
| Upper temperature | +125 °C |
| Lower temperature | -20 °C |
| Protection degree | IP67 |
| Locking system | Screw (M23) |
| Mating cycles | >50 |
| Connector Diameter | 25 mm |
| Contact Type | Clockwise |
| Wire-section | 1 mm² |
Electrical parameters
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 150 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PBT/PA66 |
| Material of housing | Zinc die cast nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Wire-section |
|---|---|---|---|---|---|---|
| 99 4637 80 06 | >10 - ≤20 A | 6 | 300 V | 2500 V | >200 - ≤400 V | 2.5 mm² |
| 99 4603 80 09 | >5 - ≤10 A | 9 | 300 V | 2500 V | >200 - ≤400 V | 8 x 1,5 / 1 x 2,5 mm² |
| 99 4607 80 12 | >5 - ≤10 A | 12 | 150 V | 1500 V | ≤200 V | 1 mm² |
| 99 4633 80 19 | >5 - ≤10 A | 19 | 150 V | 1500 V | ≤200 V | 16 x 1 / 3 x 1,5 mm² |
