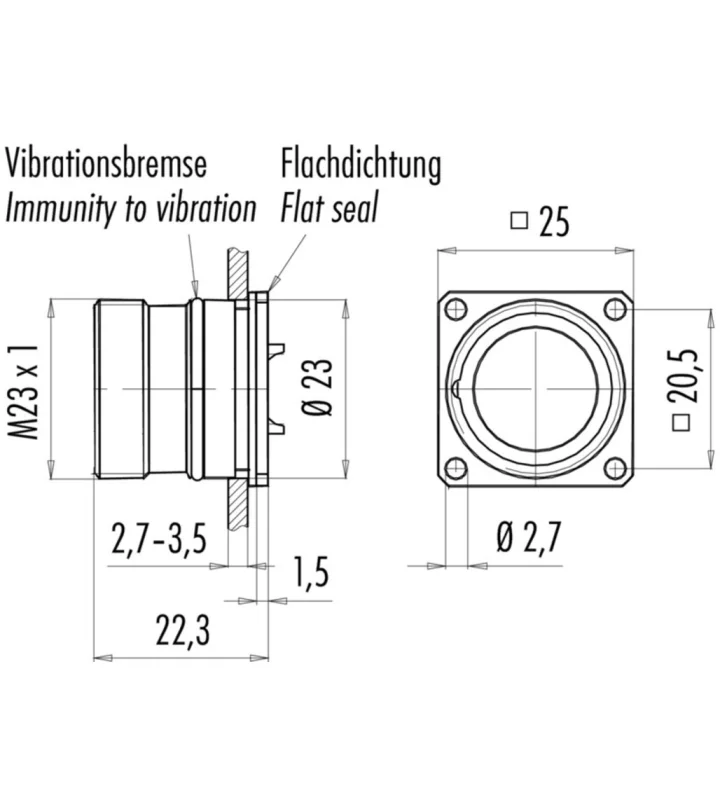

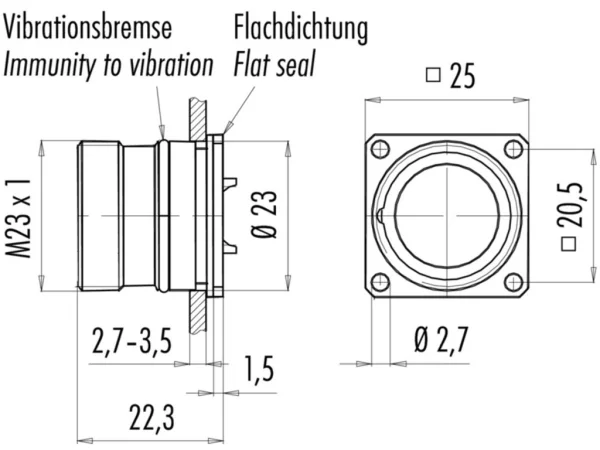

Female panel mount connector
Fastened from back side
99 4612 80 16
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M23 |
|---|---|
| Series | Power |
| Subseries | 623 |
| Gender | Female |
| Number of contacts | 16 |
| Contact terminal | Solder |
| Upper temperature | +125 °C |
| Lower temperature | -20 °C |
| Protection degree | IP67 |
| Locking system | Screw (M23) |
| Mating cycles | >50 |
| Connector Diameter | 25 mm |
| Contact Type | Clockwise |
| Wire-section | 1 mm² |
Electrical parameters
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 150 V |
| Impuls voltage | 1500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PBT/PA66 |
| Material of housing | Zinc die cast nickel plated |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Contact Type | Wire-section |
|---|---|---|---|---|---|---|---|
| 99 4638 80 06 | >10 - ≤20 A | 6 | 300 V | 2500 V | >200 - ≤400 V | Clockwise | 2.5 mm² |
| 99 4604 80 09 | >10 - ≤20 A | >5 - ≤10 A | 9 | 300 V | 2500 V | >200 - ≤400 V | Clockwise | 8 x 1,5 / 1 x 2,5 mm² |
| 99 4608 80 12 | >5 - ≤10 A | 12 | 150 V | 1500 V | ≤200 V | Clockwise | 1 mm² |
| 99 4634 80 19 | >5 - ≤10 A | 19 | 150 V | 1500 V | ≤200 V | Clockwise | 16 x 1 / 3 x 1,5 mm² |
| 99 4604 81 09 | >10 - ≤20 A | >5 - ≤10 A | 9 | 300 V | 2500 V | >200 - ≤400 V | Anticlockwise | 8 x 1,5 / 1 x 2,5 mm² |
