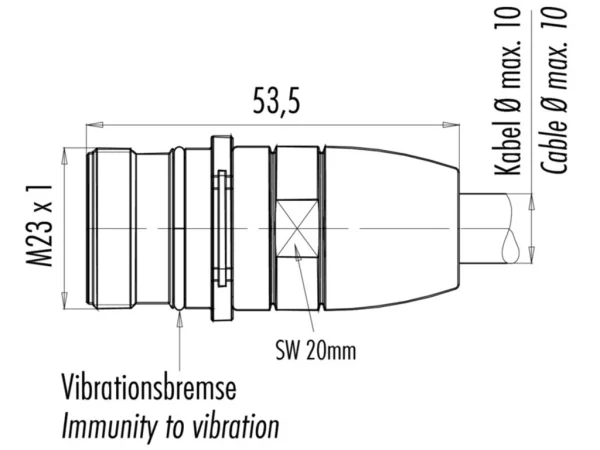

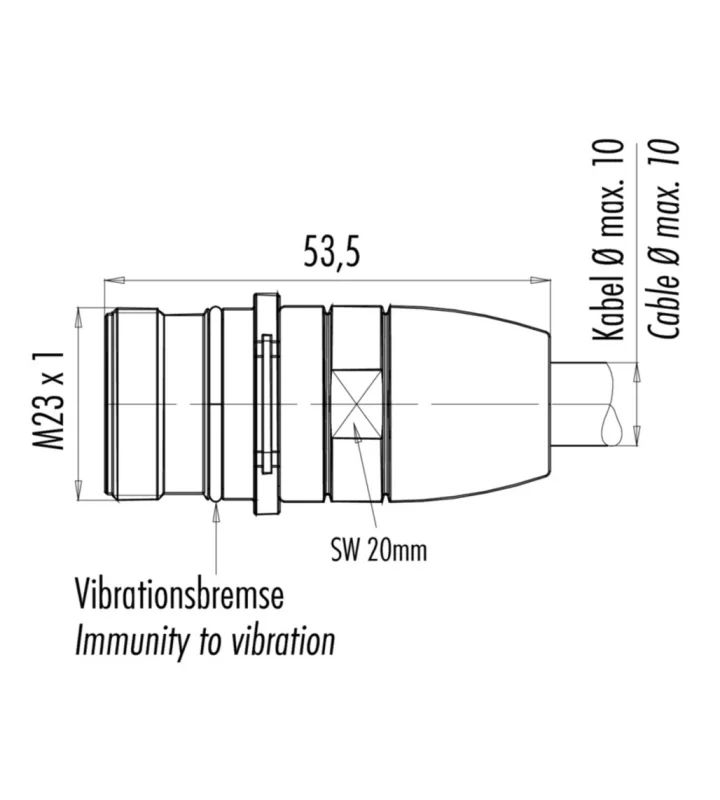

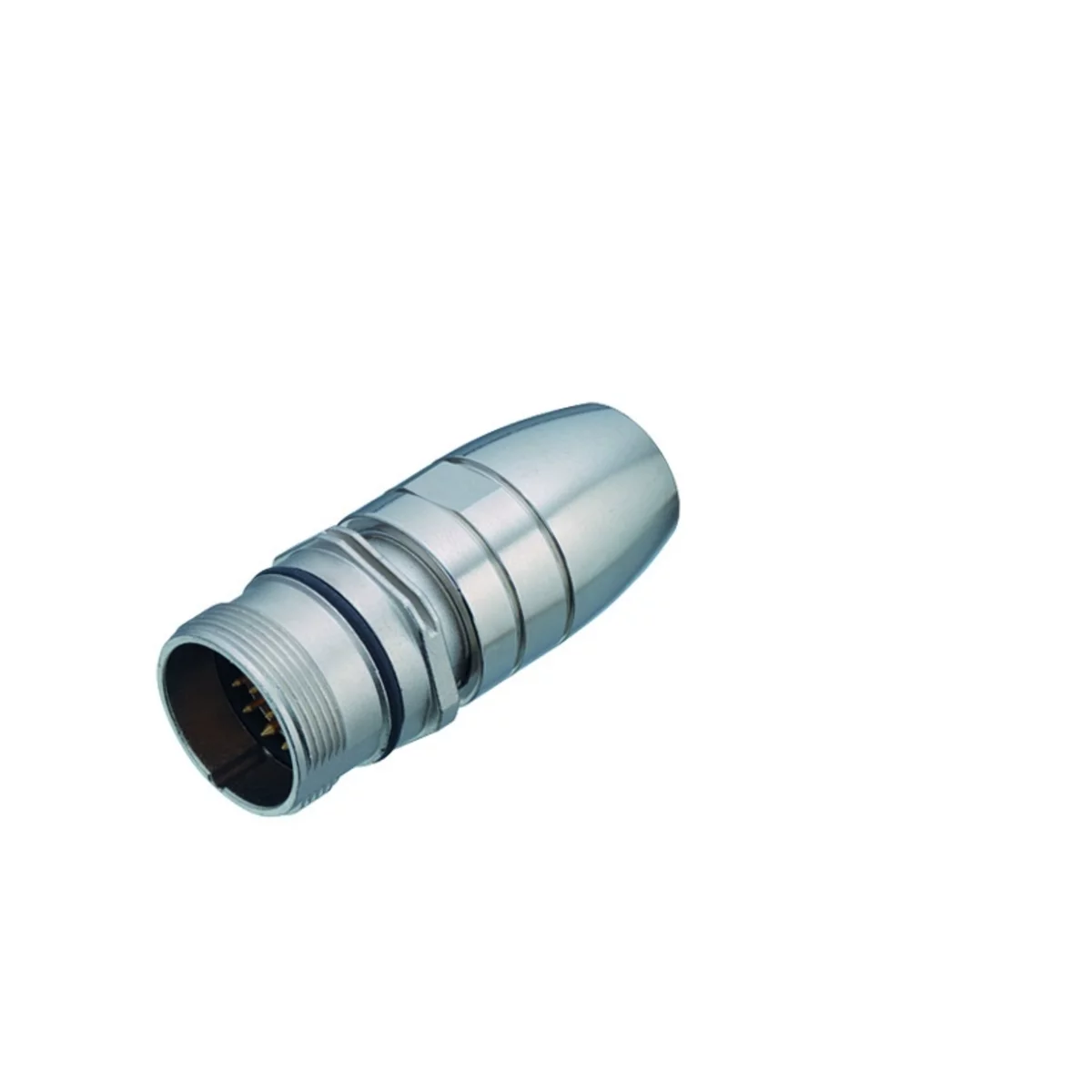

Male coupling connector
Shieldable
99 4625 10 09
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M23 |
|---|---|
| Series | Power |
| Subseries | 623 |
| Gender | Male |
| Number of contacts | 9 |
| Contact terminal | Solder |
| Upper temperature | +125 °C |
| Lower temperature | -20 °C |
| Protection degree | IP67 |
| Locking system | Screw (M23) |
| Mating cycles | >50 |
| Contact Type | Anticlockwise |
| Cable outlet | 6-10 mm |
| Wire-section | 8 x 1,5 / 1 x 2,5 mm² |
| Remark* | *Earth sleeves with seals have to be ordered seperately |
Electrical parameters
| Nominal current | 8 x 8 / 1 x 20 A |
|---|---|
| Nominal voltage | 300 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | II |
Material
| Material group | III |
|---|---|
| Material of insert | PBT/PA66 |
| Material of housing | CuZn (Brass, nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Contact Type | Wire-section |
|---|---|---|---|---|---|---|---|
| 99 4649 00 06 | >10 - ≤20 A | 6 | 300 V | 2500 V | >200 - ≤400 V | Clockwise | 2.5 mm² |
| 99 4627 00 12 | >5 - ≤10 A | 12 | 150 V | 1500 V | ≤200 V | Clockwise | 1 mm² |
| 99 4629 00 16 | >5 - ≤10 A | 16 | 150 V | 1500 V | ≤200 V | Clockwise | 1 mm² |
| 99 4647 00 19 | >5 - ≤10 A | 19 | 150 V | 1500 V | ≤200 V | Clockwise | 16 x 1 / 3 x 1,5 mm² |
| 99 4627 10 12 | >5 - ≤10 A | 12 | 150 V | 1500 V | ≤200 V | Anticlockwise | 1 mm² |
