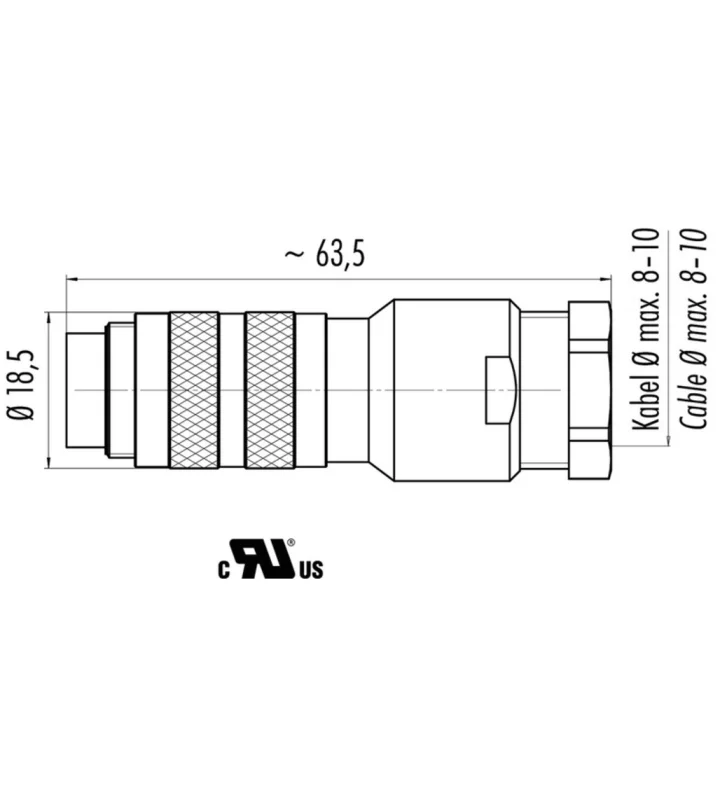

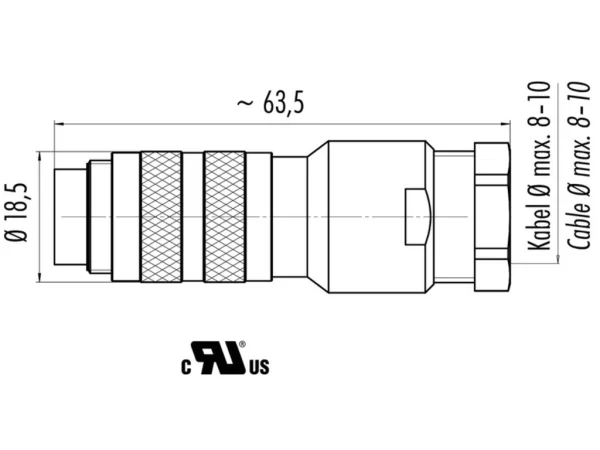

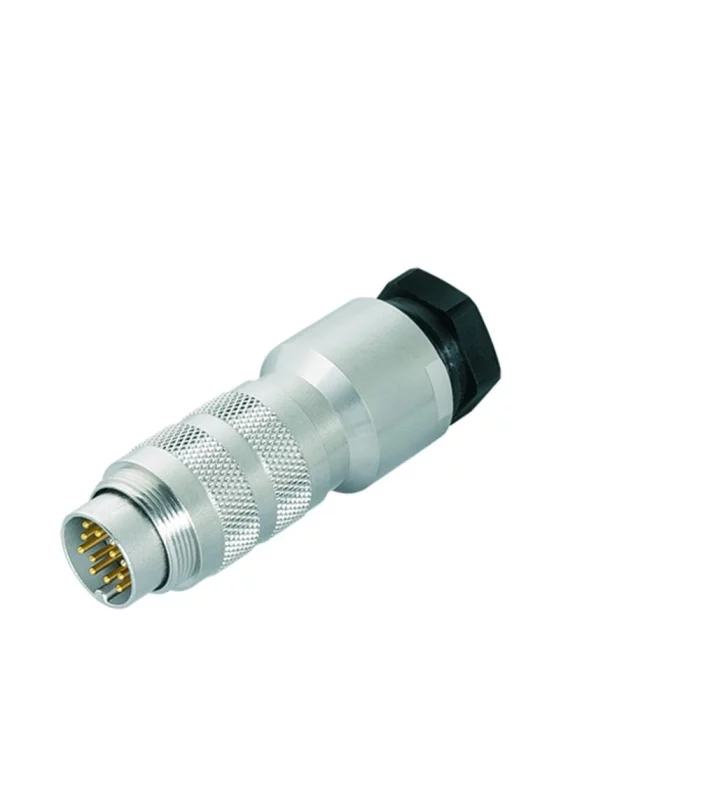

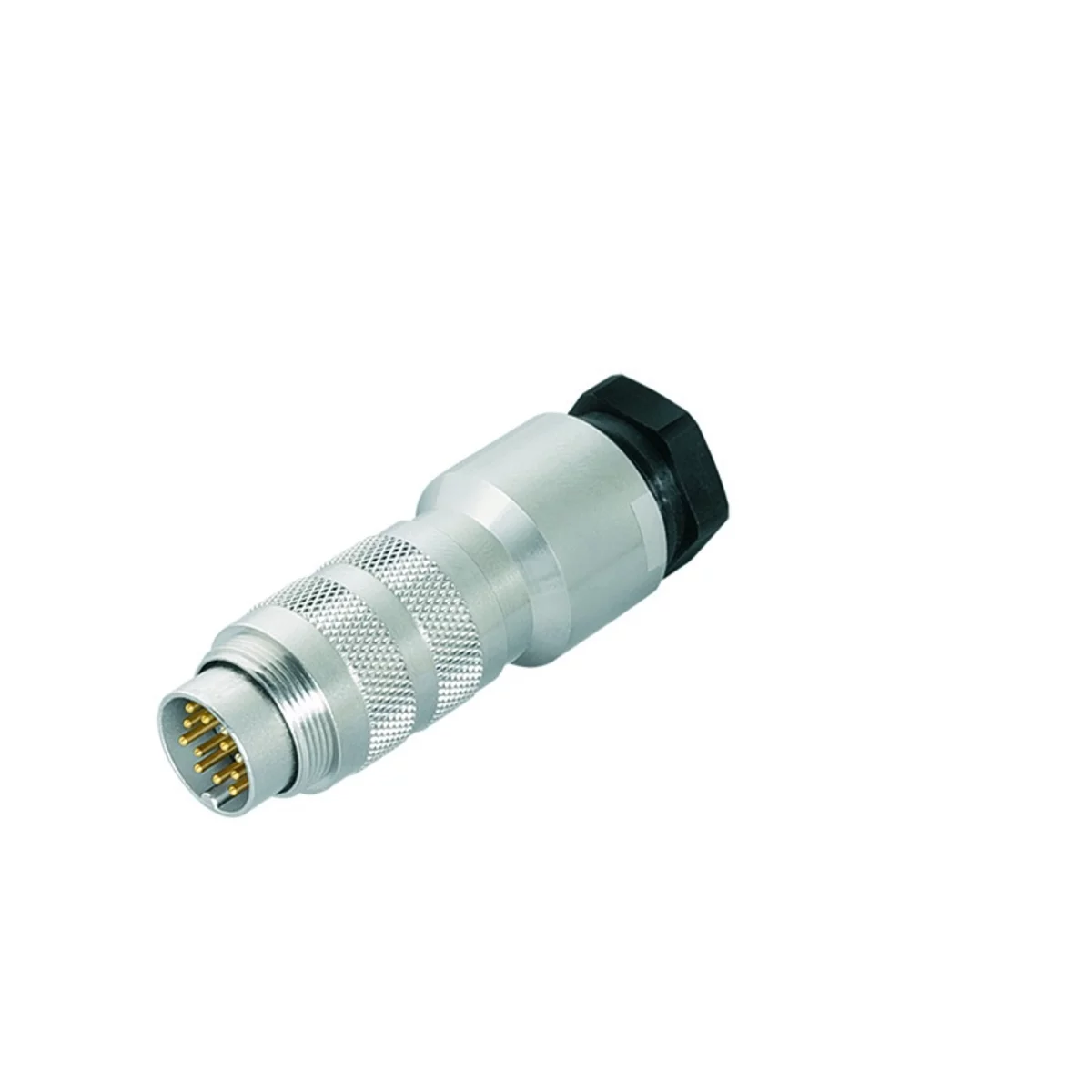

Male cable connector
With shielding ring, shieldable
UL-approval
99 5861 15 19
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Screw size | M16 |
|---|---|
| Series | Miniature |
| Subseries | 423 |
| Gender | Male |
| Number of contacts | 19 |
| Contact terminal | Solder |
| Upper temperature | +95 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Screw (M16) |
| Mating cycles | >500 |
| Connector Diameter | 18.5 mm |
| Cable outlet | 8-10 mm |
| Wire-section | 0.25 mm² |
| Remark* | *In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V. |
Electrical parameters
| Nominal current | 3 A |
|---|---|
| Nominal voltage | 60 (32) V |
| Impuls voltage | 500 V |
| Max. contact resistance | 5 mΩ |
| Pollution degree | 1 (2)* |
| Overvoltage categorie | I (II)* |
Material
| Material group | III |
|---|---|
| Material of insert | PBT (UL 94 V-0) |
| Material of housing | CuZn (Brass, nickel plated) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Number of contacts | Nominal voltage | Impuls voltage | Max. contact resistance | Plating | Wire-section |
|---|---|---|---|---|---|---|
| 99 5825 15 07 | 7 | 125 (32) V | 800 V | 5 mΩ | Ag (Silver) | 0.75 mm² |
| 99 5881 15 07 | 7 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | 0.75 mm² |
| 99 5871 15 08 | 8 | 60 (32) V | 500 V | 5 mΩ | Ag (Silver) | 0.75 mm² |
| 99 5829 15 12 | 12 | 60 (32) V | 500 V | 5 mΩ | Au (Gold) | 0.25 mm² |
| 99 5851 15 14 | 14 | 60 (32) V | 500 V | 5 mΩ | Au (Gold) | 0.25 mm² |
| 99 5805 15 16 | 16 | 60 (32) V | 500 V | 5 mΩ | Au (Gold) | 0.25 mm² |
| 99 5895 15 24 | 24 | 60 (32) V | 500 V | 3 mΩ | Au (Gold) | 0.14 mm² |
