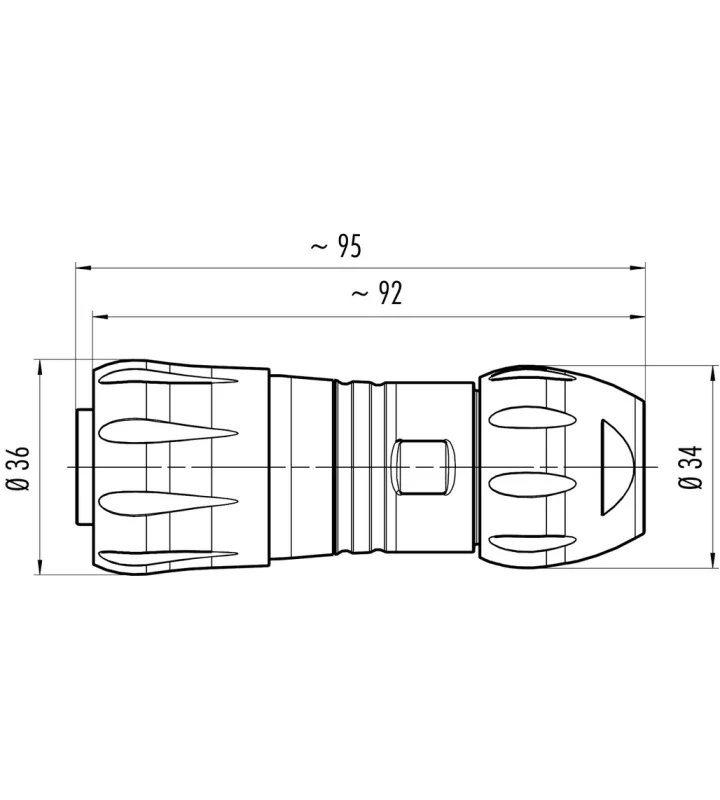

Female cable connector
with bayonet Locking
99 6502 000 08
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Power |
|---|---|
| Subseries | 696 |
| Gender | Female |
| Number of contacts | 8 mixed layout |
| Contact terminal | Crimp |
| Upper temperature | +100 °C |
| Lower temperature | -40 °C |
| Protection degree | IP68/IP69K |
| Locking system | Bayonet |
| Mating cycles | >1000 |
| Connector Diameter | 36 mm |
| Cable outlet | 7-17 mm |
| Wire gauge | 14-26 AWG |
| Wire-section | 0,14-2,50 mm² |
Electrical parameters
| Nominal current | 3 Signal, 25 Power (20A UL) |
|---|---|
| Nominal voltage | 60 Signal/ 400 Power |
| Impuls voltage | 1000 V |
| Max. contact resistance | >10 mΩ |
| Pollution degree | 3 |
| Overvoltage categorie | III |
Material
| Material group | I |
|---|---|
| Material of insert | PA |
| Material of housing | PA |
| Material of contact | depending on crimp contact |
| Plating | depending on crimp contact |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage | Mating cycles | Cable outlet | Wire gauge | Wire-section |
|---|---|---|---|---|---|---|---|---|---|
| 99 6490 000 05 | >30 - ≤40 A | 5 | 600 V | 6000 V | >400 - ≤600 V | >1000 | 7-17 mm | 14-10 AWG | 2,50-6,00 mm² |
| 99 6518 000 12 | ≤5 A | 12 | 250 V | 4000 V | >200 - ≤400 V | >500 | 7-13 mm | 26-18 AWG | 0,14-0,75 mm² |
