Male panel mount connector
With dip solder termination
Lightgrey
99 9107 490 03
Stel je connector verder samen
Voeg de gewenste accessories toe om je connector volledig samen te stellen.
Specificaties
General Characteristics
| Series | Miniature |
|---|---|
| Subseries | 720 Medical |
| Gender | Male |
| Number of contacts | 3 |
| Contact terminal | Dip solder |
| Upper temperature | +85 °C |
| Lower temperature | -40 °C |
| Protection degree | IP67 |
| Locking system | Snap-in |

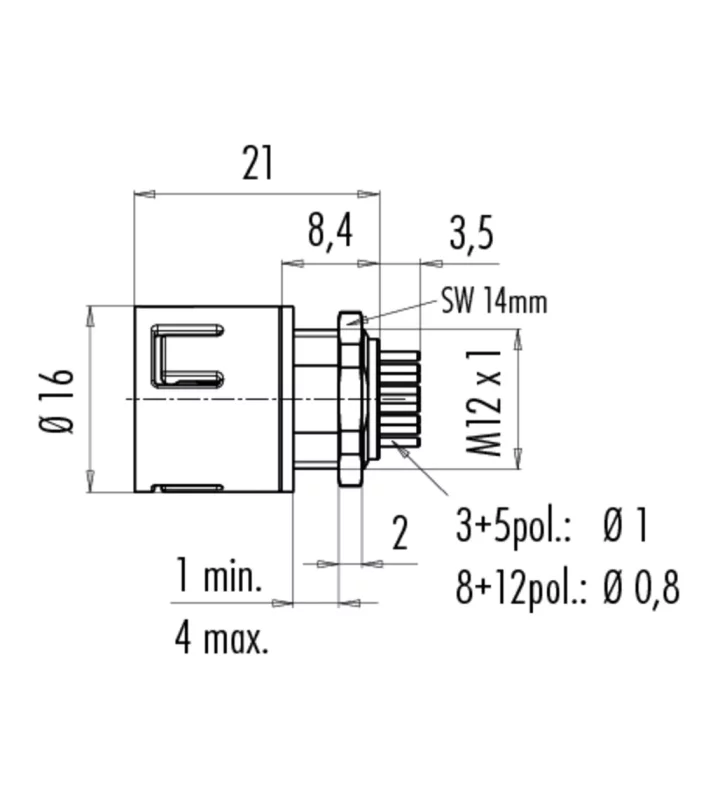

| Connector Diameter | 16 mm |
Electrical parameters
| Nominal current | 7 A |
|---|---|
| Nominal voltage | 250 V |
| Impuls voltage | 2500 V |
| Max. contact resistance | 3 mΩ |
| Pollution degree | 2 |
| Overvoltage categorie | II |
Material
| Material group | II |
|---|---|
| Material of insert | PA (UL 94 V-0) |
| Material of housing | PA (UL 94 V-0) |
| Material of contact | CuZn (Brass) |
| Plating | Au (Gold) |
Varianten
| Art. number | Nominal current | Number of contacts | Nominal voltage | Impuls voltage | Nominal Voltage |
|---|---|---|---|---|---|
| 99 9115 490 05 | ≤5 A | 5 | 125 V | 1500 V | ≤200 V |
| 99 9127 490 08 | ≤5 A | 8 | 125 V | 1500 V | ≤200 V |
| 99 9135 490 12 | ≤5 A | 12 | 60 V | 800 V | ≤200 V |
